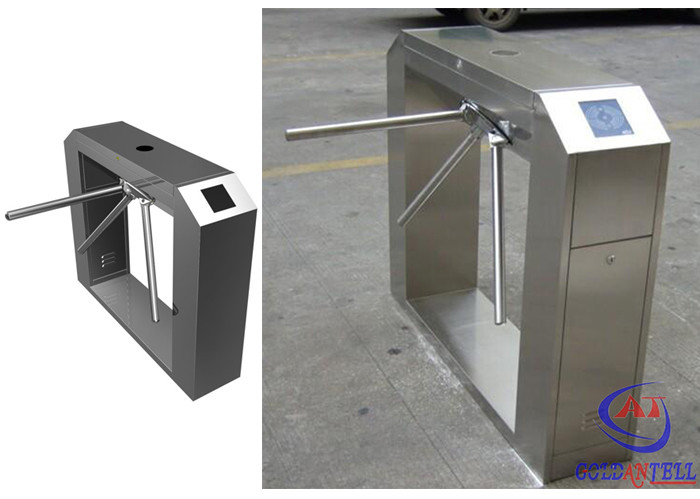

Security Waist Height Turnstile Barrier Gate For Access Control System
Turnstile technical parameters
Housing material: stainless steel
Working voltag: AC220±10%V 50±10%HZ
Size: 1200mm (L) * 280mm (W) * 990mm (H)
Arm width: 510 mm
Passage width: ≤600 mm
Communication interfac: standard RS485 interface, distance ≤1200m
Direction: single or bi-directional (optional)
Input interfac:+12V level signal or pulse width>100ms 12V pulse, drive current>10mA
Features
1.Security
. Active arm can drop clear (emergency or application)
Arms cannot be removed without special tools
. Mechanism cannot be forced
2.Economic
. Inactive arms do not hinder the passage
. Simple to install
3.Flexibility
. Removable end covers for easy integration of any type of access control device
Brief introduction
Made of 304 stainless steel,Goldantell tripod turnstile with nice and elegant shape,antirust,durable, Resistant to external damage.Rectangular box and brake lever to be a passage,provide orderly passage to people. Prevent illegal in and out.Arms off in emergency case.
The package of turnstile barrier
1 . Inside with a carton package.
2 . Outside,there are 2 kinds of packages for your choice:
crate package and closed wooden package
Operation place
This item is widely used in station,pier,subway,factory,office
building,intelligent community,hotel,clubs,enterprise,etc.
