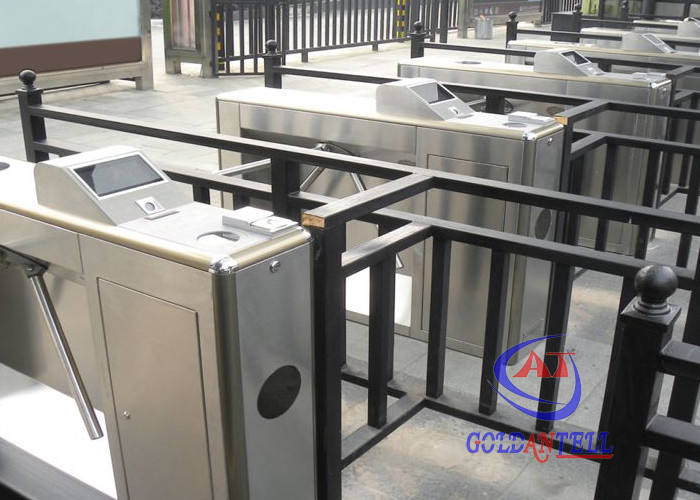

Automatic Tripod Turnstile Gate , entrance metro turnstile pedestrian control
Brief Introdutions:
Made of 304 stainless steel,Goldantell tripod turnstile with nice and elegant shape,antirust,durable, Resistant to external damage.Rectangular box and brake lever to be a passage,provide orderly passage to people. Prevent illegal in and out.Arms off in emergency case.This item is widely used in station,pier,subway,factory,office building,intelligent community,hotel,clubs,enterprise,etc.
This equipment is intergrated with mechanism,electric and micro-controller and various kinds of identification technologies,compatible with IC,ID,barcode,fingerprint reader and so on ,to provide intelligent control and management to flow control.
Goldantell tripod turnstile divided into 3 kinds:1)full automatic 2)semi-automatic 3)manual,and the semi-automatic is the most widely used.
Specifications:
|
Item
|
GAT-310
|
|
Working voltage:
|
AC220±10%V 50±10%HZ
|
|
Arm length:
|
550mm
|
|
Time of opening
|
0.2 second
|
|
Passage width
|
≤600mm
|
|
Pass speed:
|
40 persons/min (open), 25-30 persons/min (closed)
|
|
Size
|
1200mm (L) * 280mm (W) * 980mm (H)
|
|
Direction:
|
single or bi-directional (optional)
|
|
Input interface:
|
+12V level signal or pulse width>100 ms
12V pulse, drive current>10 mA
|
|
Normal running life:
|
3 million
|
|
Work environment
|
Indoor and outdoor (shelter)
|
|
Communication interface
|
standard RS485 interface, distance ≤1200m |
Compare of all kinds turnstile:
| Tripod turnstile function & Features |
Fully
automatic |
Semi
automatic |
Manual
operation |
|
1. Alarm function:when arms are pushed by force illegally,
alarm will be triggered automatically and arms will be set locked.
|
√ |
× |
× |
2. Turnstile can setting the working condition by press the button
of main control board. |
√ |
√ |
× |
3. Auto-lift-arm function: the arm can lift automatically with alert
when the power is on again. |
Auto-
drop-arm |
Auto-
drop-arm |
NO action |
|
4. Auto-drop-arm function: the arm can drop down automatically
(default) (or free passing) when the power is off.
|
Auto-lift-arm |
manual-
lift –arm |
NO action |
5.Once an open signal is give, the arms will rotate
automatically to a certain angle,and prompt the
pedestrian to pass the gate. |
√ |
√ |
× |
6. The turnstile can work with door access control system/
consumption system/biometric recognition system/ ESD system and so on. |
√ |
√ |
× |
| 7. LED indicator light |
√ |
√ |
× |
| 8. When pedestrian pass the turnstile, what should they do? |
Automatic-rotation |
manual
push the arm |
manual
push the arm |
Functions and Features of the System
1 ) The entire system runs smoothly, with a small noise and free of mechanical impact.
The system adopts the exclusive technique of Jaw clutch. As a result, the turnstile is more accurate and
reliable for zero point locking and unlocking.
2 ) DC Brushless Motor, Maintenance Free
3 ) It has failure self-detect and alarm indication function, facilitating maintenance and application for the
users.
4 ) It is provided with multiple operation modes for selection. It can either read card in double way for flow
limit, or reading card in a way while barring in the other, or read card in a way while free passage in the
other. Moreover, the operation mode of turnstile may be set up with the built-in small keyboard.
5 ) It has automatic function of opening or closing when power off.
6 ) The equipment is provided with a unified, standard electric interface and is available to be integrated
with various read/write facilities to facilitate the system integration. It is able to realize far end control and
management with the help of administrative computer.
