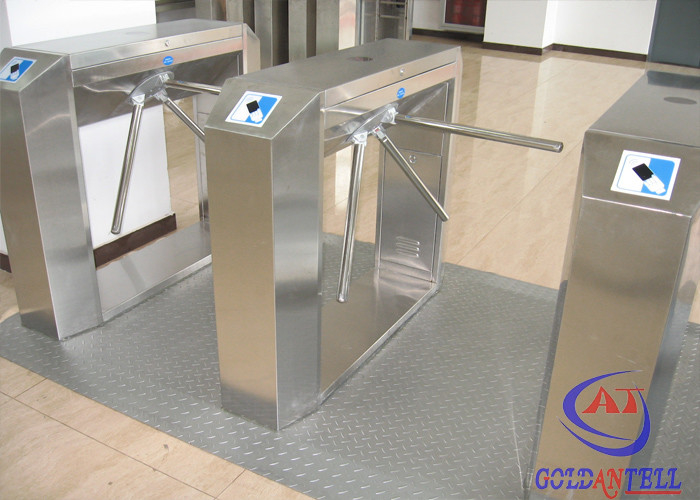

pedestrian control Full automatic Half Height Turnstiles gate barrier system direction arrow

pedestrian control Full automatic Half Height Turnstiles gate barrier system direction arrow
pedestrian control Full automatic Half Height Turnstiles gate barrier system direction arrow

Large Image :  pedestrian control Full automatic Half Height Turnstiles gate barrier system direction arrow

Product Details:
Place of Origin: Guangdong,China
Brand Name: Goldantell
Certification: CE/ROHS/FCC/IS9001
Model Number: GAT-303
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time: 7 working days after received your payment
Payment Terms: T/T, Western Union, L/C,Paypal
Supply Ability: 2,000pcs per month
Detailed Product Description
Application: Stadium, Pulic Area , Park , Office Building , Club, Etc Net Weight: 65KG
Product Name: Access Control Tripod Turnstile Material: 304 Stainless Steel/316 Stainless Steel
Package Size: 1280mm (L) * 360mm (W) * 1060mm (H) Compatible: RFID Reader & Fingerprint Reader , Coin Acess , QR Code Reader,Bar Code System ,ESD Tester Access Contro L, Remote Button
Communication Port: RS485 ,TCP/IP Size Of Product: 1200mm (L) * 280mm (W) * 980mm (H)
Type: Three Arm / Rail Turnstile LED Light: Direction Arrow
Pass Width: 600mm
Highlight:

pedestrian security gates

,

stainless steel turnstiles

pedestrian control Full automatic gate barrier system direction arrow



 Tripod Turnstile Specifications:



Size

1200 mm (L) * 280 mm (W) * 980 mm (H)

Working voltage AC220±10%V 50±10%HZ
Arm width: 510 mm
Support force of arm: 60 kg
Passage width:

≤600 mm

Time of opening: 0.2 second
Pass speed: 30 persons/min
Normal running life: 3 million
LED light: direction arrow
Direction:

single or bi-directional
(optional)

Working environment:

indoor/outdoor (with a tent
over)
-10℃~70℃

Relative humidity: ≤90% coagulation free
Communication interface:

standard RS 485 interface,
distance ≤1200m

Housing material

domestic standard 304#
stainless steel

Working movement DC 24V solenoid valve





 Functions And Features:



. Unique incomplete wheel transmission is adopted to make turnstiles held or unheld in zero position more accurate and reliable.



. Running stable, no noise and no mechanical impact



. Self-checking-power-on function, if power on, turnstile will auto get to be held.



. Various working means can be set in the control panel menu, namely: bi-direction card reading passing, or one direction card reading passing and another passing limits, or one direction card reading passing and another free passing, etc.



. If power off, arm will fall automatically while power on later, arm will be automatically lift.



. It is with RS485 connection for far control arm up and down to satisfy the special needs or fire control requirements.



.It is with standard electrical interface to connect various kinds of readers and writers for easy integration and also computer far control and management can be realized by computer.



. It will count the persons who have been passed through automatically and will show the number by LED directly.(LED is optional)



. Passing direction will be shown by LED and passengers will know which direction is allowed to pass.



10 . Card reading memory or card reading without memory function can be set in the control panel menu according to your request.



11 . If working with software, the total-in-population can be set to satisfy special request.





FAQ:



1.you dont need to worry about the aftersale service, we got good aftersale service for you to do replacement and whole lifetime repair.



2. you dont need to worry about the installation and technical problems, we got 8 year expericed engineer always stand-by for your service.



3.you dont need to worry about that we will cheat you about the money. you got alibaba trade assurance, you can totally rely on alibaba.





1 - Can you install RFID card reader on the turnstile?



Yes,except the RFID card reader system,we also can install fingerprint reader system,token system,esd



system,etc.





2 - How about the guarantee and after sale service?



We have 12 month quality guarantee, We own well-tranied and passional sales & after- sale services who



can speak fluent Engligh language



3 - How long is the leading time?



For standard item

10-50 sets:5 working days

50-100 sets:7-10 working days

200-500 sets:10-15 working days

For special item, or need custom design package or logo, need 3-10 working days longer



4 - How about the payment terms?



TT,western union,L/C,our company already joined the trade assurance,it will highly protect your order



security.



5 - Can you do OEM service?



We offer below OEM services:



 pedestrian control Full automatic Half Height Turnstiles gate barrier system direction arrow 0
