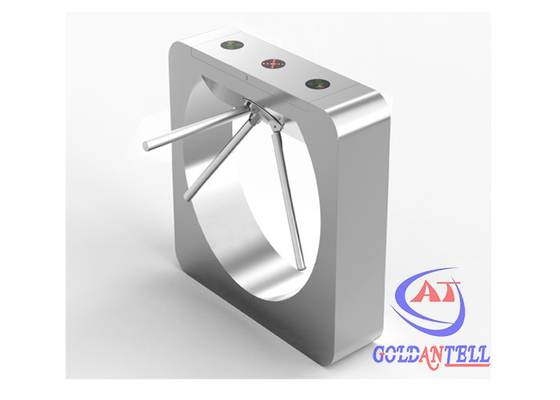

Waist High intelligent metro airport turnstile coin operator qr barcode and RFID

  • Waist High intelligent metro airport turnstile coin operator qr barcode and RFID
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE/ROHS/FCC/IS9001
Model Number GAT-640
Minimum Order Quantity 1pc
Price negotiation
Packaging Details Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time 7 working days after received your payment
Payment Terms T/T ,western Union,LC,Paypal, L/C
Supply Ability 2,000pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Motor DC24V Solenoid Valve Housing Material Domestic Standard 304# Stainless Steel
Time Of Opening/closing 0.2second Passage Width 600mm
Application Indoor And Outdoor Emergence When Power Off, Arm Open Automatically
Input Interface +12V Level Signal Or Pulse Width>100ms 12V Pulse, Drive Current>10mA LED Light Direction Arrow
Direction Single Or Bi-directional (optional) Arm Width 500 Mm
Normal Running Life 3 Million
Highlight

turnstile security gates

,

stainless steel turnstiles
Leave a Message
Product Description


Waist High intelligent metro airport turnstile coin operator qr barcode and RFID

 Specifications:


Item

GAT-340


Working voltage:


AC220±10%V 50±10%HZ

Time of opening


0.6second

Passage width


600mm

Reset time after break down


10 seconds

Integration


machine, electronics, micro-processor control and ID identification


Direction:


single or bi-directional (optional)

Transit speed


30-40 people/minute


Input interface:


RFID Reader&Fingerprint Reader ,Coin acess,QR code reader,
Bar code System,ESD Tester Access Control, remote button


Emergence:


When power off, arm open automatically

LED light


direction arrow
Relative humidity

≤90% coagulation free



Features:


1. Malfunction self-check and alarm reminder, ease of maitenance and use

2. Running method can be set through small buttons on the control panel

3. How arm reacts in emergency

4. How arm reacts when power on

5. Self-reset. pass right will be cancelled if people do not go through within a set time, the default time is 10s ( 0-60 adjustable)

6. Compatible for access control system, consumption system, E-ticekt system, biometric system, ESD system and so on

7. Unique positioning, self reset, one arm always in the horizontal level

8. LED lamp indicator

9. When open signal is given, arm rotate to a certain degree

10. How arm reacts when people passing

11. One direction or bi-direction flow control

12. Work directly with PC for remote control and management




Appearance, Dimension, Material & Surface Finish
1. Appearance: customized according to customer’s requirement.
2. Material of the cabinet: 304 / 316 grade stainless steel.
3. Stainless steel thickness of the cabinet: customized within 1.2~2.0mm.
4. Surface finish of the cabinet: satin finish / polishing / anti- fingerprint/frosted finish / electroplating /
baking finish.



 Control system:



  1. RFID Reader&Fingerprint Reader
  2. Coin acess,QR code reader
  3. Bar code System
  4. ESD Tester Access Control
  5. Remote button


Features:

 Multiple-lane turnstiles GAT-340 is mainly installed in entrance and exit of shopping mall which has a large flow rate; it is most popular in supermarket.


multiple-lane turnstiles GAT-340 is designed to work in a normally closed mode and retract inside the pedestal, normally free exit by sensors, and entrance forbidden.

multiple-lane turnstiles GAT-340---can be compatible with IC card , ID card ,barcode card , fingerprint reading card recognition device used for staff, provide civilized , orderly access methods; effectively manage the access of staff . Can be widely used in the station, wharf subway , factories, office building , hotel , clubs, intelligent community , enterprises and institution that need intelligent access management.



Direction Indicator:

The installation position of direction indicator can be adjusted.
The pattern of direction indicator can be customized


Our advantages:

1.you dont need to worry about the aftersale service, we got good aftersale service for you to do replacement and whole lifetime repair.

2. you dont need to worry about the installation and technical problems, we got 8 year expericed engineer always stand-by for your service.

3.you dont need to worry about that we will cheat you about the money. you got alibaba trade assurance, you can totally rely on alibaba.
