Product Details:
Payment & Shipping Terms:
|
Motor: | DC24V Solenoid Valve | Housing Material: | Domestic Standard 304# Stainless Steel |
---|---|---|---|
Time Of Opening/closing: | 0.2 Second | Passage Width: | 600mm |
Application: | Indoor And Outdoor | OEM: | OEM Arm Length,custom Logo,custom Size |
Size: | 1200mm (L) * 280mm (W) * 980mm (H) | Direction: | Single Or Bi-directional (optional) |
Normal Running Life: | 3 Million | Communication Interface: | Standard RS485 Interface, Distance ≤1200m |
Highlight: | turnstile security gates,pedestrian security gates |

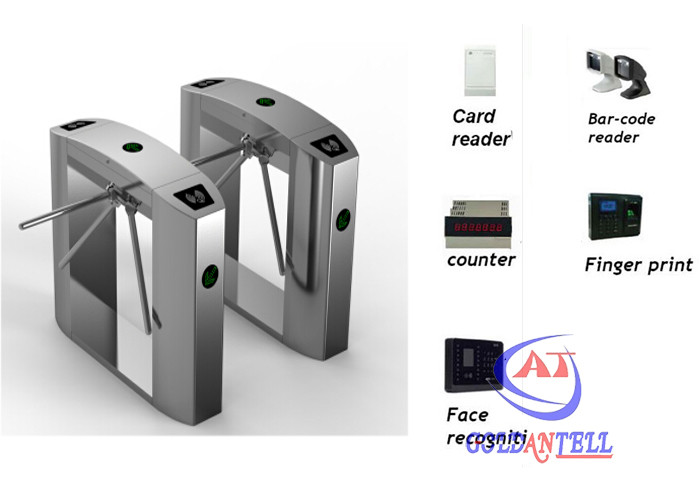

All electric mechanical rotating tripod turnstile gate for factory station
Specifications:
Item |
GAT-320 |
Working voltage: |
AC220±10%V 50±10%HZ (110V) |
Time of opening |
0.2second |
Passage width |
600mm |
Direction: |
single or bi-directional (optional) |
Communication interface: |
standard RS485 interface, distance ≤1200m |
Transit speed |
30 persons/min
|
Support force of arm |
60kg
|
LED light: |
direction arrow
|
Input interface: |
RFID Reader&Fingerprint Reader ,Coin acess,QR code reader, |
Normal running life: |
3 million |
Working environment |
Indoor/outdoor (with a tent over) -10℃~70℃ |
Relative humidity: |
≤90% coagulation free |
Appearance, Dimension, Material & Surface Finish
1. Appearance: customized according to customer’s requirement.
2. Material of the cabinet: 304 / 316 grade stainless steel.
3. Stainless steel thickness of the cabinet: customized within 1.2~2.0mm.
4. Surface finish of the cabinet: satin finish / polishing / anti- fingerprint/frosted finish / electroplating /
baking finish.
Introduction&Specification :
This equipment is subtly integrated with machine, electronics, micro-processor control and ID identification, provides convenience for the use of card reader identification equipments, such as IC card, ID card, bar code and fingerprint.,etc.Also,it can with IR sensor,when people near the gate,the gate will open automatically,no need any access control system. It can carry out intelligent control and management to the passageway through choosing various identification equipments
1. Standard features: Made of 304 /316 stainless steel,Goldantell tripod turnstile with nice and elegant
shape, anti- rust,durable, Resistant to external damage.
2. Standard Functions: Rectangular box and brake lever to be a passage,provide orderly passage to
people. Prevent illegal in and out.Arms off in emergency case.
3. Application place: This item is widely used in station,pier,subway,factory,office building,intelligent
community, hotel, clubs, enterprise, etc.
4. System Integration: This equipment is integrated with mechanism,electric and micro- controller and
various kinds of identification technologies,compatible with IC,ID,barcode,fingerprint reader and so on ,to
provide intelligent control and management to flow control.
5. Classification: 1) full automatic 2) semi-automatic 3) manual, the semi-automatic is the most widely used.
Access control system:
1 | Control system |
RFID Reader&Fingerprint Reader |
2 | Direction Indicator |
|
3 |
|
|
