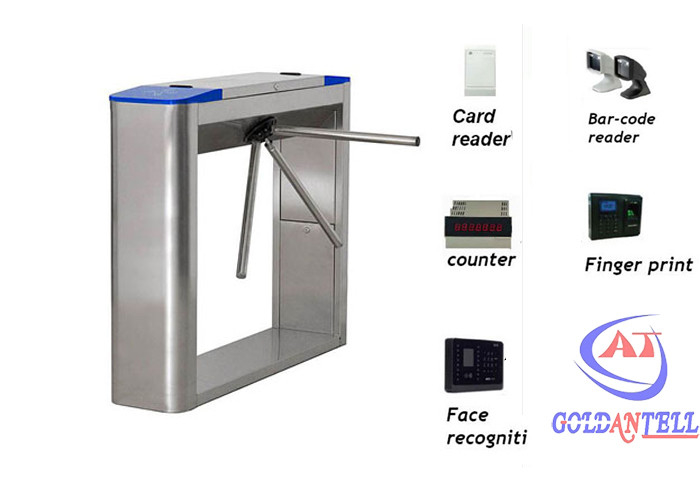

Outdoor entrance Tripod Turnstile Gate with coin operater / RFID barcode
| Place of Origin | Guangdong,China |
|---|---|
| Brand Name | Goldantell |
| Certification | CE/ROHS/FCC/IS9001 |
| Model Number | GAT-316 |
| Minimum Order Quantity | 1pc |
| Price | negotiation |
| Packaging Details | Packed in carton firstly,and then reinforced with export wooden case for outer packing |
| Delivery Time | 7 working days after received your payment |
| Payment Terms | T/T ,western Union,LC,Paypal, L/C |
| Supply Ability | 2,000pcs per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Esd Tripod Turnstile Barrier With Qr Barcode And Fingerprint Scanner And RFID Reader | Compatible | RFID Reader&Fingerprint Reader ,Coin Access,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button |
|---|---|---|---|
| Transit Speed | 30-40 People/minute | Service Life | 5000,000 Times |
| Working Movement | DC24V Solenoid Valve | Arm Width | 530m |
| Work Environment | Indoor Or Outdoor | Opening Time | 0.2s |
| Passage Width | ≤600 Mm | Direction | Single Or Bi-directional (optional) |
| Support Force Of Arm | 60kg | ||
| Highlight | tripod access system,tripod barrier gate |
||
Product Description
Outdoor entrance Tripod Turnstile Gate with coin operater / RFID barcode
Specifications:
|
Item |
GAT-316
|
|
Working voltage:
|
AC220±10%V 50±10%HZ |
|
Arm length:
|
530mm |
|
Time of opening
|
0.2 second |
|
Passage width
|
≤600mm |
|
Pass speed:
|
40 persons/min (open), 25-30 persons/min (closed) |
|
Size
|
1200mm (L) * 280mm (W) * 980mm (H) |
|
Direction:
|
single or bi-directional (optional) |
|
Emergence:
|
When power off, arm open automatically |
|
Input interface:
|
+12V level signal or pulse width>100 ms
|
|
Communication interface:
|
standard RS485 interface, distance ≤1200m |
|
Work environment
|
Indoor and outdoor (shelter) |
|
OME
|
custom size .access control and logo |
Compare of all kinds turnstile:
| Tripod turnstile function & Features | Fully automatic |
Semi automatic |
Manual operation |
|
1. Alarm function:when arms are pushed by force illegally, alarm will be triggered automatically and arms will be set locked.
|
√ | × | × |
| 2. Turnstile can setting the working condition by press the button of main control board. | √ | √ | × |
| 3. Auto-lift-arm function: the arm can lift automatically with alert when the power is on again. |
Auto- drop-arm |
Auto- drop-arm |
NO action |
|
4. Auto-drop-arm function: the arm can drop down automatically
|
Auto-lift-arm | manual- lift –arm |
NO action |
| 5.Once an open signal is give, the arms will rotate automatically to a certain angle,and prompt the pedestrian to pass the gate. |
√ | √ | × |
| 6. The turnstile can work with door access control system/ consumption system/biometric recognition system/ ESD system and so on. |
√ | √ | × |
| 7. When pedestrian pass the turnstile, what should they do? | Automatic-rotation | manual push the arm |
manual push the arm |
| 8. The turnstile is bidirectional (pedestrian can enter and exit from one set of turnstile). |
√ | √ | × |
| 9. LED counting function | √ | √ | × |
| 10. Can manager and long-range control the turnstile directly by managing the computer. |
√ | √ | × |
Advantages of our turnstiles gate :
1.you dont need to worry about the aftersale service, we got good aftersale service for you to do replacement and whole lifetime repair.
2. you dont need to worry about the installation and technical problems, we got 8 year expericed engineer always stand-by for your service.
3.you dont need to worry about that we will cheat you about the money. you got alibaba trade assurance, you can totally rely on alibaba.
