Factory Entrance Fingerprint Scan Swing Barrier Gate Anti Static ESD Wrap Strap

  • Factory Entrance Fingerprint Scan Swing Barrier Gate Anti Static ESD Wrap Strap
  • Factory Entrance Fingerprint Scan Swing Barrier Gate Anti Static ESD Wrap Strap
  • Factory Entrance Fingerprint Scan Swing Barrier Gate Anti Static ESD Wrap Strap
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE/ROHS/FCC/IS9001
Model Number GAT-660
Minimum Order Quantity 1pc
Price negotiation
Packaging Details Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time 7 working days after received your payment
Payment Terms T/T,western Union,LC,Paypal
Supply Ability 1,000pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Identification Speed Face Detection And Tracking 20 Ms Identification Height 1.2m-2.2m
Wiegand Format 26/34 Size Of Product 1400*200*1000mm
Application Health Projects,hotel,canteens, Hospitals, Office Buildings, Customs, Agencies, Tourist Attractions, Factories Working Environment Indoor / Outdoor ( Shelter)
Highlight

1.2m Swing Barrier Gate

,

ESD Swing Barrier Gate

,

ESD Security Turnstile Gate
Leave a Message
Product Description

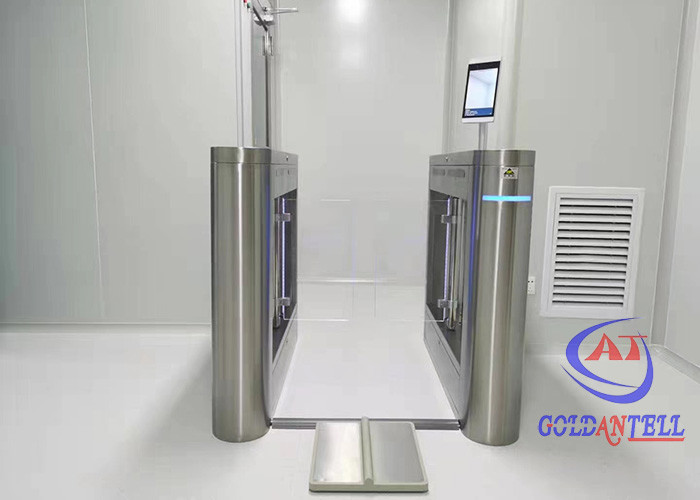

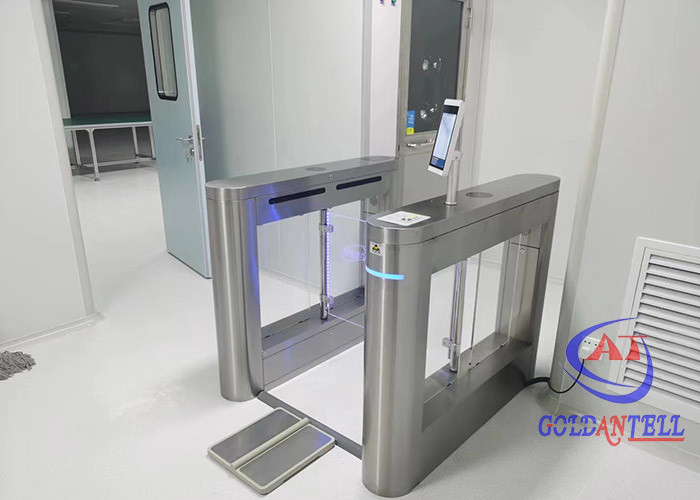

Factory Entrance Fingerprint Scan Swing Barrier Gate Anti Static ESD Wrap Strap
Factory Entrance Fingerprint Scan Anti-static ESD Wrap Strap check system swing barrier gate with software.
Key Features
  • Intelligent control and management through various identification equipment with reliable security protection
  • Configurable pass direction: one-way or two-way operation
  • Visible high glass panel prevents climbing over the gate for unauthorized access
  • Horizontal sliding glass panel provides unobstructed passageway
  • Higher flow rate with superior anti-tailgate functions
Technical Specifications
Housing Size 1400mm (L) * 200mm (W) * 1000mm (H)
Pass Through Width Standard 60/90cm (120cm and custom options available)
Pass Speed 40 persons/min (open), 25-30 persons/min (closed)
Drive Motor Standard DC 24V brush motor (brushless motor optional)
Operating Life 3 million cycles
Opening/Closing Time 0.6 seconds
Power On Delay 3 seconds
Reset Time 10 seconds after breakdown
Direction Single or bi-directional (optional)
Operating Environment Indoor/outdoor (with cover) -10℃ to 70℃
Communication Interface Standard RS 485 interface, distance ≤1200m
Input Interface +12V level signal or pulse width >100 ms
Humidity ≤90% (non-condensing)
Housing Material 304 stainless steel
Power Supply AC100-240V, 50±10%HZ
ESD Detection System
  • Model: GAT-ESD303
  • Can operate standalone or integrate with various turnstile gate styles
  • 4.3-inch LCD screen with voice prompts for intuitive test result display
  • Wrist band test range: 750KΩ - 10MΩ (±10% accuracy)
  • Anti-static shoes test range: 750KΩ - 100MΩ (±10% accuracy)
  • Optional access control systems available (card swipe, networking)
Note: Customized functions may affect pricing.
Advanced Functions
  • Self-diagnosis and alarm system for easy maintenance
  • Programmable operation via main board keyboard
  • Safety stop when blocked to prevent injuries
  • Automatic arm locking until opening signal received
  • Adjustable arm synchronization
  • Light and sound alarm for unauthorized access
  • Automatic reset function with adjustable timing
  • Configurable passing time
Applications
Movie theaters, fitness centers, country clubs, fairgrounds, clubs, swimming pools, gyms, hotels, factories, banks, prisons, hospitals, schools, and enterprise entrance/exit attendance systems.
Factory Entrance Fingerprint Scan Swing Barrier Gate Anti Static ESD Wrap Strap 0 Factory Entrance Fingerprint Scan Swing Barrier Gate Anti Static ESD Wrap Strap 1
Our Services
  • 16-hour professional customer support
  • 10+ years ODM/OEM experience with custom design options
  • Complete system software management solutions
  • Remote troubleshooting and free spare parts replacement within 1 year
