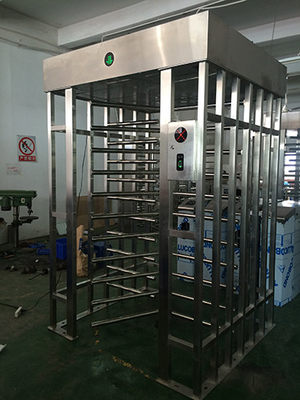

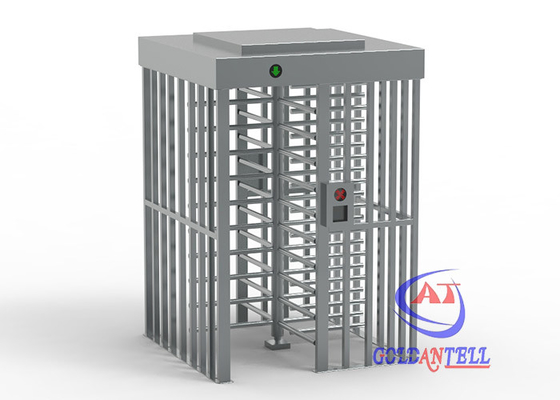

QR Code Nfc Reader Pedestrian single security turnstile gate with roof For Railway
| Place of Origin | Guangdong,China |
|---|---|
| Brand Name | Goldantell |
| Certification | CE/ROHS /IS9001 |
| Model Number | GAT-504 series |
| Document | Datasheet Of GAT-504 Full h...os.pdf |
| Minimum Order Quantity | 1pc |
| Price | negotiation |
| Packaging Details | Packed in carton firstly,and then reinforced with export wooden case for outer packing |
| Delivery Time | 7-9 working days after received your payment |
| Payment Terms | T/T,Western Union,L/C,Paypal |
| Supply Ability | 1,000pcs per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Size | 1500(L)*1500(W)*2250(H) Mm | Type | Single Entrance |
|---|---|---|---|
| Application | Prison, Factory, Government Etc. | Verification | RFID, Fingerprint, Facial Optional |
| Housing Material | 304 Stainless Steel | Power Supply | AC220V/110V,50/60Hz |
| Communication Interface | RS485(Distance,TCP Distance ≤1200m . | Warranty | 1 Year |
| Highlight | Nfc Reader Pedestrian Barrier Gate,QR Code Pedestrian Barrier Gate,Railway Turnstile Security Doors |
||
Product Description
QR Code NFC Reader Pedestrian Single Security Turnstile Gate with Roof for Railway
Goldantell intelligent series of turnstile gates feature excellent design and superior performance, manufactured using innovative technology and high-quality materials. These pedestrian barrier gates provide security solutions for various applications including anti-pinch protection, time attendance, and access management. The complete stainless steel construction is suitable for both interior and exterior installations.
Specifications
| Power | AC220C±10V,50HZ |
|---|---|
| Operating Temperature | -15°C--75°C |
| Access Width | 550mm ~ 600mm (or custom-made) |
| Passing Speed | 30-40persons/min(IC/ID Card) |
| Motor | 60W/24V |
| Wing Material | Transparency organic glass or Red soft material |
| Input Connection | +12V Level Signal or Pulse Wide>100ms Pulse Signal, Current>100ms |
| Communication Connection | RS485 Communication Module Standard |
| Material | SUS304, thickness is no less than 1.5mm |
| Running Life | 3 Million (Continuous Opening and Closing Operation) |
| Protection Grade | IP54 |
| Color | SSB(US32D)-Stainless Steel Brushed / Powder Coating (Optional), or other Color |
| Operation Place | Subway Station, Airport, Tourism Sports, Exhibition, Swimming Hall, Residence Area, etc. |
Functions & Features
- Compatible with access control systems, consumer systems, electronic ticket systems, biometric systems, and other equipment
- Supports unidirectional or bidirectional control of personnel access
- Remote control and management via computer
- LED indicator light
- Customizable box house length and design
- Adjustable normally open or closed settings to meet different location requirements
Product Display

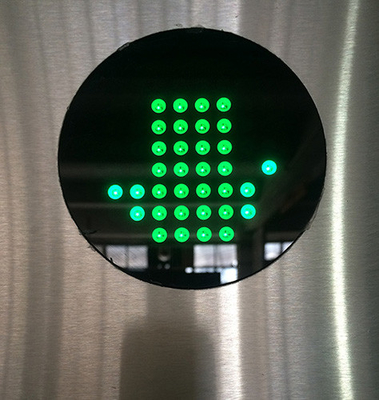

- LED indicator light (optional)
- Fingerprint reader (optional, other control methods: push button, coin-operation, access control system like card reader)
- The control board of full height turnstile
- Material: standard 304 stainless steel (optional, 316)
Outdoor Installation Locations
- Stadium
- Prison
- Factory
- Bank
- School
- Airports
- Stations
