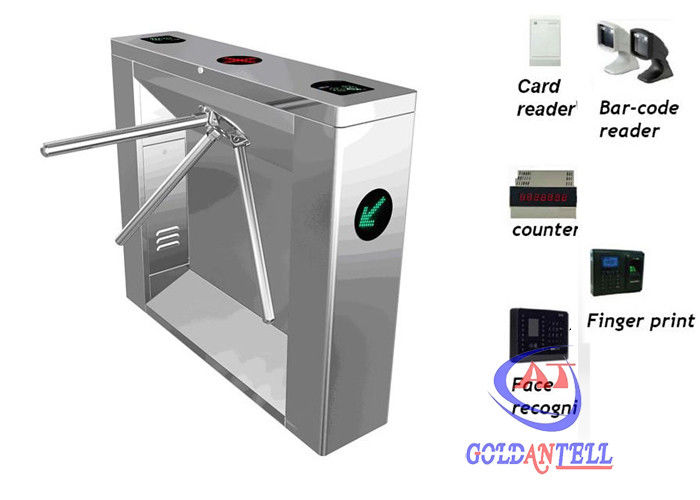

Esd tripod turnstile barrier with qr barcode and fingerprint scanner and RFID reader

  • Esd tripod turnstile barrier with qr barcode and fingerprint scanner and RFID reader
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE/ROHS/FCC/IS9001
Model Number GAT-310
Minimum Order Quantity 1pc
Price negotiation
Packaging Details Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time 7 working days after received your payment
Payment Terms T/T ,western Union,LC,Paypal, L/C
Supply Ability 2,000pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Esd Tripod Turnstile Barrier With Qr Barcode And Fingerprint Scanner And RFID Reader Compatible RFID Reader&Fingerprint Reader ,Coin Access,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button
Transit Speed 30-40 People/minute Service Life 5000,000 Times
Working Movement DC24V Solenoid Valve Arm Width 550m
Work Environment Indoor Or Outdoor Communication Interface RS485/232
Opening Time 0.2s Passage Width ≤600 Mm
Direction Single Or Bi-directional (optional)
Highlight

tripod access system

,

tripod barrier gate
Leave a Message
Product Description



Esd tripod turnstile barrier with qr barcode and fingerprint scanner and RFID reader



 Specifications:



Item

GAT-310



Working voltage:



AC220±10%V 50±10%HZ

Arm length:



550mm

Time of opening



0.2 second

Passage width



≤600mm

Pass speed:



40 persons/min (open), 25-30 persons/min (closed)

Size



1200mm (L) * 280mm (W) * 980mm (H)

Direction:



single or bi-directional (optional)

Emergence:



When power off, arm open automatically

Input interface:



+12V level signal or pulse width>100 ms
12V pulse, drive current>10 mA



Communication interface:



standard RS485 interface, distance ≤1200m

Work environment



Indoor and outdoor (shelter)




Compare of all kinds turnstile:





Tripod turnstile function & Features Fully
automatic		 Semi
automatic		 Manual
operation

1. Alarm function:when arms are pushed by force illegally,

alarm will be triggered automatically and arms will be set locked.



 √ × ×
2. Turnstile can setting the working condition by press the button
of main control board.		 √ √ ×
3. Auto-lift-arm function: the arm can lift automatically with alert
when the power is on again.		 Auto-
drop-arm		 Auto-
drop-arm		 NO action

4. Auto-drop-arm function: the arm can drop down automatically
(default) (or free passing) when the power is off.



 Auto-lift-arm manual-
lift –arm		 NO action
5.Once an open signal is give, the arms will rotate
automatically to a certain angle,and prompt the
pedestrian to pass the gate.		 √ √ ×
6. The turnstile can work with door access control system/
consumption system/biometric recognition system/ ESD system and so on.		 √ √ ×
7. LED indicator light √ √ ×
8. When pedestrian pass the turnstile, what should they do? Automatic-rotation manual
push the arm		 manual
push the arm
9. The turnstile is bidirectional (pedestrian can enter and
exit from one set of turnstile).		 √ √ ×
10. LED counting function √ √ ×
11. Can manager and long-range control the
turnstile directly by managing the computer.		 √ √ ×





Features of tripod Turnstile:



The Tripod Turnstiles are very robust products able to function inside and outside buildings.

The Tripod Turnstile is a waist-height tripod turnstile in a self-supporting housing (2 Feet).

The Tripod Turnstile with dropping arm to free the walkway in the event of an emergency or for certain applications

1.Security

. Active arm can drop clear (emergency or application)

Arms cannot be removed without special tools

. Mechanism cannot be forced

2.Economic

. Inactive arms do not hinder the passage

. Simple to install

3.Flexibility

. Removable end covers for easy integration of any type of access control device

. Numerous configurations covering all cases of pedestrian access control



Esd tripod turnstile barrier with qr barcode and fingerprint scanner and RFID reader 0
