Supermarket Exit / entrance high speed and gate Access Control anti rush alarm function
| Place of Origin | Guangdong,China |
|---|---|
| Brand Name | Goldantell |
| Certification | CE/ROHS/FCC/IS9001 |
| Model Number | GAT-309 |
| Minimum Order Quantity | 1pc |
| Price | negotiation |
| Packaging Details | Packed in carton firstly,and then reinforced with export wooden case for outer packing |
| Delivery Time | 7 working days after received your payment |
| Payment Terms | T/T ,western Union,LC,Paypal, L/C |
| Supply Ability | 2,000pcs per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | LED Bi-directional RFID Flap Barrier Mechanism Gate For Office Building Museum | Working Voltage | AC220±10%V 50±10%HZ |
|---|---|---|---|
| Compatible | RFID Reader&Fingerprint Reader ,Coin Access,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button | Transit Speed | 30-40 People/minute |
| Service Life | 3000,000 Times | Working Movement | DC24V Solenoid Valve |
| Arm Width | 530m | Work Environment | Indoor Or Outdoor |
| Size | 420mm (L) * 330mm (W) * 980mm (H) | Passage Width | ≤600 Mm |
| LED Light | Direction Arrow | ||
| Highlight | tripod access system,tripod barrier gate |
||
Product Description
Supermarket Exit / entrance high speed and gate Access Control anti rush alarm function
Specifications:
|
Item |
GAT-309
|
|
Working voltage:
|
AC220±10%V 50±10%HZ |
|
Arm length:
|
530mm |
|
Time of opening:
|
0.2second |
|
Passage width:
|
≤600mm |
|
Pass speed:
|
40 persons/min (open), 25-30 persons/min (closed) |
|
Reset time after break down
|
10 seconds |
|
Direction
|
single or bi-directional (optional) |
|
Working environment:
|
indoor/outdoor (with a tent over) -10℃～70℃ |
|
Input interface:
|
+12V level signal or pulse width>100 ms
|
Features of Turnstile:
1 . Unique incomplete wheel transmission is adopted to make turnstiles held or unheld in zero position more accurate and reliable.
2 . Running stable, no noise and no mechanical impact
3 . Self-checking-power-on function, if power on, turnstile will auto get to be held.
4 . Various working means can be set in the control panel menu, namely: bi-direction card reading passing, or one direction card reading passing and another passing limits, or one direction card reading passing and another free passing, etc.
5 . If power off, arm will fall automatically while power on later, arm will be automatically lift.
6 . It is with RS485 connection for far control arm up and down to satisfy the special needs or fire control requirements.
7 .It is with standard electrical interface to connect various kinds of readers and writers for easy integration and also computer far control and management can be realized by computer.
8 . It will count the persons who have been passed through automatically and will show the number by LED directly.(LED is optional)
9 . Passing direction will be shown by LED and passengers will know which direction is allowed to pass.
10 . Card reading memory or card reading without memory function can be set in the control panel menu according to your request.
11 . If working with software, the total-in-population can be set to satisfy special request.
12 . Re-position function. After card reading, if passenger not through within the specific time, system will auto cancel passing right for this time and the limit passing time length can be set.
13 . Card Mouting is avaliable.
14. Uncompleted wheel turning system is adopted for locking the turnstile in zero, and unlocking will be more realiable and accurate.
Brief introdution of flap barrier gate:

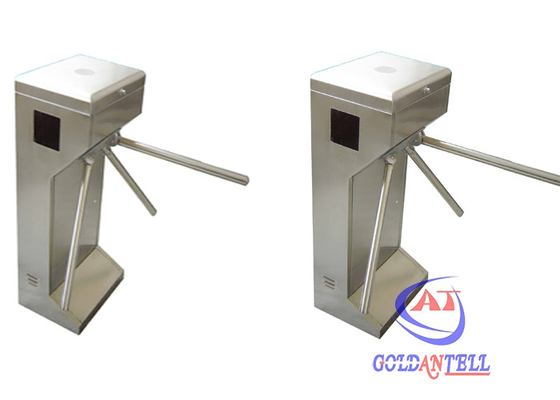

Made of 304 stainless steel,Goldantell tripod turnstile with nice and elegant shape,antirust,durable, Resistant to external damage.Rectangular box and brake lever to be a passage,provide orderly passage to people. Prevent illegal in and out.Arms off in emergency case.This item is widely used in station,pier,subway,factory,office building,intelligent community,hotel,clubs,enterprise,etc.
This equipment is intergrated with mechanism,electric and micro-controller and various kinds of identification technologies,compatible with IC,ID,barcode,fingerprint reader and so on ,to provide intelligent control and management to flow control.
Goldantell tripod turnstile divided into 3 kinds:1)full automatic 2)semi-automatic 3)manual,and the semi-automatic is the most widely used.
Contact Way:
Contact person:Charlene Lu
E-mail:charlene@cctvgat.com
Wechat/whatsapp:+86 18025437918
Skype:Charlene0809
