Flow control revolving arm Tripod Turnstile Gate for school supermaket station

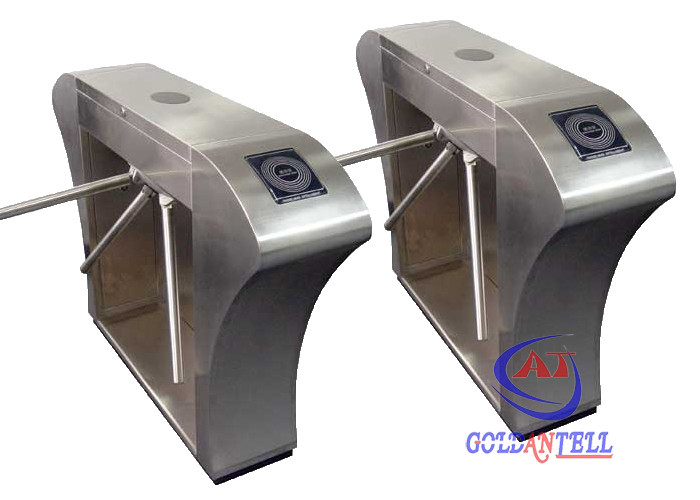

Large Image : Flow control revolving arm Tripod Turnstile Gate for school supermaket station

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	Goldantell
Certification:	CE/ROHS/FCC/IS9001
Model Number:	GAT-341

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiation
Packaging Details:	Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time:	7 working days after received your payment
Payment Terms:	T/T ,western Union,LC,Paypal, L/C
Supply Ability:	2,000pcs per month

Contact Now

Detailed Product Description

Product Name:	Flow Control Revolving Arm Tripod Turnstile Security Door For School Supermaket Station	Motor:	DC24V Solenoid Valve
Housing Material:	Domestic Standard 304# Stainless Steel	Certification:	CE/ROHS/FCC/SGS/IS9001
Compatible:	RFID Reader&Fingerprint Reader ,Coin Acess,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button	Direction:	Single Or Bi-directional (optional)
Time Of Opening/closing:	0.2second	Size:	1200mm (L) 280mm (W) 1000mm (H)
Passage Width:	550mm	Communication Interface:	Standard RS485 Interface, Distance ≤1200m
Highlight:	tripod access system , tripod barrier gate

Flow control revolving arm Tripod Turnstile Gate for school supermaket station

Specifications:

Item	waist height tripod turnstile
Working voltage:	AC220±10%V 50±10%HZ
Time of opening	0.2second
Passage width	550mm
Pass speed:	40 persons/min (open), 25-30 persons/min (closed)
LED light	LED light: direction arrow
Direction:	single or bi-directional (optional)
Working environment	indoor/outdoor (with a tent over) -10℃～70℃
Input interface:	RFID Reader&Fingerprint Reader ,Coin acess,QR code reader, Bar code System,ESD Tester Access Control, remote button
Communication interface	RS485/232
Support	operating video& Instruction will be sent to clients to help them better use the machines
Normal running life	3 million

Features:

The Tripod Turnstiles are very robust products able to function inside and outside buildings.

The Tripod Turnstile is a waist-height tripod turnstile in a self-supporting housing (2 Feet).

The Tripod Turnstile with dropping arm to free the walkway in the event of an emergency or for certain applications

1.Security

. Active arm can drop clear (emergency or application)

Arms cannot be removed without special tools

. Mechanism cannot be forced

2.Economic

. Inactive arms do not hinder the passage

. Simple to install

3.Flexibility

. Removable end covers for easy integration of any type of access control device

. Numerous configurations covering all cases of pedestrian access control

Brief Introdutions:

Made of 304 stainless steel Goldantell tripod turnstile with nice and elegant shape,antirust,durable, Resistant to external damage.Rectangular box and brake lever to be a passage,provide orderly passage to people. Prevent illegal in and out.Arms off in emergency case.This item is widely used in station,pier,subway,factory,office building,intelligent community,hotel,clubs,enterprise,etc.

This equipment is intergrated with mechanism,electric and micro-controller and various kinds of identification technologies,compatible with IC,ID,barcode,fingerprint reader and so on ,to provide intelligent control and management to flow control.

Goldantell tripod turnstile divided into 3 kinds:1)full automatic 2)semi-automatic 3)manual,the semi-automatic is the most widely used.

Control system:

access control system	access control system: fingerprint/ face recognition/ card reader/ QR code/ barcode ticket system.
charge management system	counter, coin- operation.
support special function	ESD tester system and function
