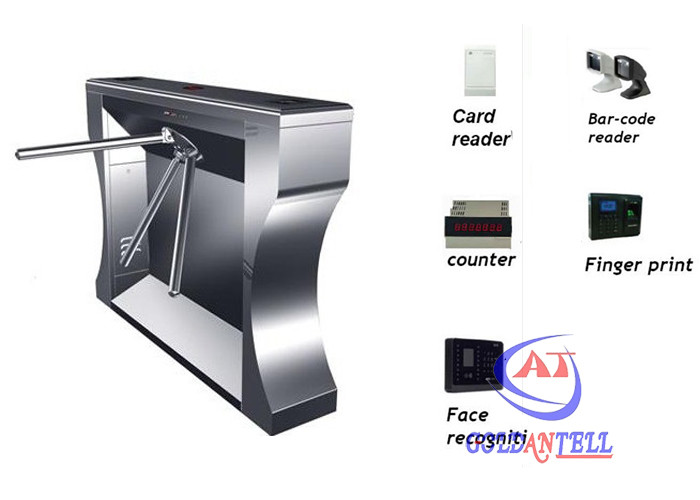

RFID automatic roller revolving speed gate turnstile In outdoor public service
| Place of Origin | Guangdong,China |
|---|---|
| Brand Name | Goldantell |
| Certification | CE/ROHS/FCC/IS9001 |
| Model Number | GAT-340 |
| Minimum Order Quantity | 1pc |
| Price | negotiation |
| Packaging Details | Packed in carton firstly,and then reinforced with export wooden case for outer packing |
| Delivery Time | 7 working days after received your payment |
| Payment Terms | T/T ,western Union,LC,Paypal, L/C |
| Supply Ability | 2,000pcs per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Working Voltage | AC220±10%V 50±10%HZ | Communication Port | RS485 ,TCP/IP |
|---|---|---|---|
| Passage Width | ≤600 Mm | Compatible | RFID Reader&Fingerprint Reader ,Coin Access,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button |
| Materal | 304 Stainless Steel/316 Stainless Steel | Transit Speed | 30-40 People/minute |
| Service Life | 3000,000 Times | Arm Width | 550 Mm |
| Time Of Opening | 0.2 Second | Pass Speed | 30 Persons/min |
| Communication Interface | Standard RS485 Interface, Distance ≤1200m | ||
| Highlight | tripod access system,tripod barrier gate |
||
Product Description
RFID automatic roller revolving speed gate turnstile In outdoor public service
Specifications:
|
Item |
GAT-340 |
|
Housing material:
|
304 stainless steel/316 stainless steel |
|
Working voltage:
|
AC220±10%V 50±10%HZ |
|
Arm length:
|
550mm |
|
Time of opening:
|
0.2 second |
|
Passage width:
|
≤600mm |
| Direction
|
single or bi-directional (optional)
|
|
LED light
|
direction arrow
|
|
Emergence
|
When power off, arm open automatically
|
|
Drive motor
|
DC 24 V brush motor |
|
Support force of arm:
|
60kg |
|
Input interface:
|
+12V level signal or pulse width>100 ms
|
Features of tripod turnstile:
1. working method can be set by the buttons on the main panel
2. This model is double wing flap gate, low noise, smaller casing, save space
3. Anti-pinch by mechanism and sensor If there is block during return of gate, motor stops working automatically. Reset again after a default delay, the force 2Kg.
4. Anti-illegal in, anti-intrusion, auto close for reverse direction.
5. Anti-collision, gate closes when no valid signal is given.
6. Gates can be synchronous
7. uto-reset. If not go through in a preset time, pass right would be cancelled automatically. (1-60s adjustable), default time is 10s.
8. Reset function by photocells,Anti-pinch function by photocells, ( 3 or 5 pairs sensors)
9. Compatible with Access control system, consumption system, ESD system, E-ticket system and so on.
10. One way or two way control
11. Unit can be controlled and administered by remote control
Application place :
· Supermarket
· Subway Station, Bus Station
· ,Airports
· Tourism
· Exhibition
· Theater
· Swimming Hall
· Fitness Gym
· Residence Area
· Enterprise’s Entrance and Exit Attendance
· Toll Management
Advantages
- Matt finished housing surface, dustproof and rainproof design for outdoor use.
- Highly integrated solenoid mechanism, 100% heavy duty operation.
- Drop arm when power off, for emergency use.
- Convenient installation and maintenance.
- Malfunction self-detection. Which is easy for operation and maintenance.
- Audible and visual alarm in case of unauthorized access
- Friendly and professional customer service people help you in 16 hours
- we can provide not only product, but also system software management.
