Fast pass Tripod Turnstile Gate , bidirectional Turnstile Security Products long range control

Fast pass Tripod Turnstile Gate , bidirectional Turnstile Security Products long range control
Fast pass Tripod Turnstile Gate , bidirectional Turnstile Security Products long range control

Large Image :  Fast pass Tripod Turnstile Gate , bidirectional Turnstile Security Products long range control

Product Details:
Place of Origin: Guangdong,China
Brand Name: Goldantell
Certification: CE/ROHS/FCC/IS9001
Model Number: GAT-321
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time: 7 working days after received your payment
Payment Terms: T/T ,western Union,LC,Paypal, L/C
Supply Ability: 2,000pcs per month
Detailed Product Description
Motor: DC24V Solenoid Valve Housing Material: Domestic Standard 304# Stainless Steel
Compatible: RFID Reader&Fingerprint Reader ,Coin Acess,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button Time Of Opening/closing: 0.2 Second
Passage Width: Passage Width: ≤600 Mm Type: Half Height Tripod Turnstile
Communication Port: RS485 ,TCP/IP Working Voltage:: AC220±10%V 50±10%HZ
Pass Speed: 30 Persons/min Emergence: When Power Off, Arm Open Automatically
Highlight:

tripod access system

,

tripod barrier gate


Fast pass Tripod Turnstile Gate , bidirectional Turnstile Security Products long range control

 Specifications:


Item

GAT-321


Working voltage:


AC220±10%V 50±10%HZ

Time of opening


0.2second

Passage width


 550mm

Reset time after break down:


10 seconds

Transit speed


30-40 people/minute

Input interface:


RFID Reader&Fingerprint Reader ,Coin acess,QR code reader,
Bar code System,ESD Tester Access Control, remote button


Packaging Details


Packed in carton firstly,and then reinforced with export wooden case for outer packing


Communication interface


RS485/232

Direction:


single or bi-directional (optional)

Communication interface


standard RS485 interface, distance ≤1200m

Trade terms


EX-W,FOB,CIF,DDU(select area)


Function:



1. The gate is Bidirectional, according the infrared sensing to enter and exit the passageways.

2. Turnstile can setting the working condition by press the button of main control board.

3. Anti-pinch function: turnstile have Mechanical/ infrared induction Anti-pinch functions( when it is meet the hinder during the reset time, the electrical machine closed work automatically in specified time, the turnstile will default the delayed and reset again till reset succeed)

4. The turnstile will lock when somebody enter the gate illegal, Tailgating or break into negative direction gate.

5. Before received the open signal, the turnstile will lock automatically

6. The arm have the collision avoidance function: when the turnstile arm closed, if it is under the collision, the arm will open to protect the Transmission of inner machine.

7. Automatic Reset Functions: after you swap the card, during the specific time (the system is 10s), if you didn’t pass the turnstile, the system will cancel your authority automatically to pass the gate, (reset time is 1~60s you can adjust it what time is suit for you). totally meet the fire protection needs

8.The turnstile can work with door access control system/ consumption system /biometric recognition system/ ESD system and so on





 Extended function:




1


LED counting function


2


Box house can lengthen, swing arm lengthen
3


Infrared logical judgment function (you can choose 8 pairs or 10 pairs Infrared)



4


Normally open or closed can be adjust to meet the requirements of the different place.
Sound and light alarm prompt functions


5


Stroboscopic lamp prompt function: site administrator can find the turnstile problem quickly and accurately



6


Voice Prompt Function



Appearance, Dimension, Material & Surface Finish:

Appearance: customized according to customer’s requirement
stainless steel thickness of the cabinet: customized within 1.2~2.0mm.
Material of the cabinet: 304 / 316 grade stainless steel.
Surface finish of the cabinet: satin finish / polishing / anti-fingerprint/frosted finish / electroplating / baking finish.

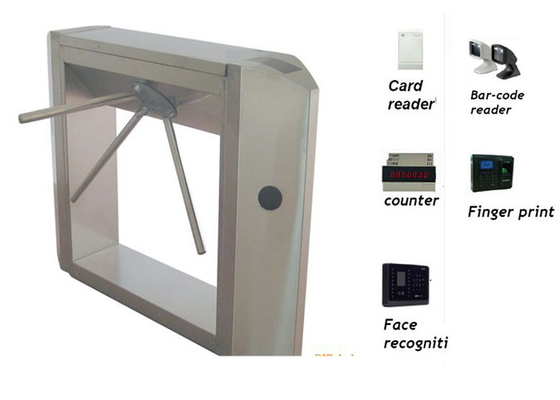

Items Show:
 Fast pass Tripod Turnstile Gate , bidirectional Turnstile Security Products long range control 0
