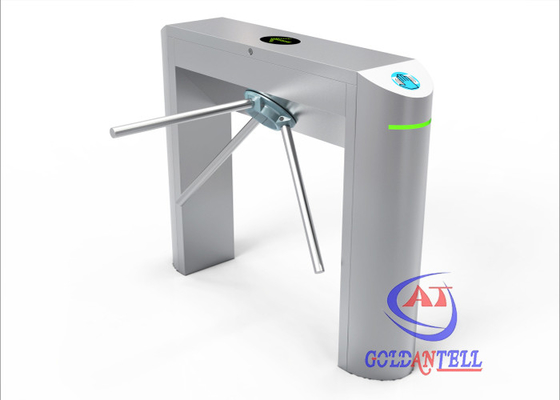

Waist High three arm roller gate triop turnstile gate for pedestrian access control

Waist High  three arm roller gate triop turnstile gate for pedestrian access control
Waist High  three arm roller gate triop turnstile gate for pedestrian access control

Large Image :  Waist High three arm roller gate triop turnstile gate for pedestrian access control

Product Details:
Place of Origin: Guangdong,China
Brand Name: Goldantell
Certification: CE/ROHS/FCC/IS9001
Model Number: GAT-319
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time: 7 working days after received your payment
Payment Terms: T/T ,western Union,LC,Paypal, L/C
Supply Ability: 2,000pcs per month
Detailed Product Description
Motor: DC24V Solenoid Valve Housing Material: Domestic Standard 304# Stainless Steel
Compatible: RFID Reader&Fingerprint Reader ,Coin Acess,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button Time Of Opening/closing: 0.2 Second
Passage Width: 510mm Type: Half Height Swing Barrier
Communication Port: RS485 ,TCP/IP Application: Indoor&outdoor
Passage Width:: ≤600 Mm Direction: Single Or Bi-directional (optional)
Normal Running Life: 3 Million
Highlight:

turnstile security gates

,

pedestrian security gates

 Waist High three arm roller gate triop turnstile gate for pedestrian access control


 Specifications:


Item

GAT-319


Type


Half height tripod  turnstile

Working voltage:


AC220±10%V 50±10%HZ(110V)

Time of opening


0.2second

Passage width


510mm

Direction


single or bi-directional (optional)

Transit speed


30-40 people/minute

Input interface


RFID Reader&Fingerprint Reader ,Coin acess,QR code reader,
Bar code System,ESD Tester Access Control, remote button


Communication interface


RS485/232

Size


1200mm (L) * 280mm (W) * 980mm (H)

Working environment


 indoor/outdoor (with a tent over) -10℃~70℃

Relative humidity

≤90% coagulation free



Function:



1. The gate is Bidirectional, according the infrared sensing to enter and exit the passageways.

2. Turnstile can setting the working condition by press the button of main control board.

3. Anti-pinch function: turnstile have Mechanical/ infrared induction Anti-pinch functions( when it is meet the hinder during the reset time, the electrical machine closed work automatically in specified time, the turnstile will default the delayed and reset again till reset succeed)

4. The turnstile will lock when somebody enter the gate illegal, Tailgating or break into negative direction gate.

5. Before received the open signal, the turnstile will lock automatically

6. The arm have the collision avoidance function: when the turnstile arm closed, if it is under the collision, the arm will open to protect the Transmission of inner machine.

7. Automatic Reset Functions: after you swap the card, during the specific time (the system is 10s), if you didn’t pass the turnstile, the system will cancel your authority automatically to pass the gate, (reset time is 1~60s you can adjust it what time is suit for you). totally meet the fire protection needs

8.The turnstile can work with door access control system/ consumption system /biometric recognition system/ ESD system and so on

9. The turnstile is bidirectional (pedestrian can enter and exit from one pair of turnstiles)

10. Can manager and long-range control the turnstile directly by managing the computer



 Control system:


RFID Reader&Fingerprint Reader ,Coin acess,QR code reader,Bar code System,ESD Tester Access Control, remote button
 Waist High  three arm roller gate triop turnstile gate for pedestrian access control 0


Application:

Supermarket / Subway Station, Bus Station / Airports / Tourism / Exhibition / Bank / Library
Theater / Swimming Hall / Fitness Gym / Residence Area

Competitive Advantage:

1.More than 10 years powerful ODM/OEM ability,could make product shape design,custom logo,custom package.
2. we can provide not only product, but also system software management.Save your time and cost.
3.Special service from Goldantell:
For repairing,no need you return back product,only need you take a video,our engineer will instruct you,if spare parts was damaged in 1 year,we will send you spare parts by fastest express,you no need bear any fee.
4.Friendly and professional customer service people help you in 16 hours.
