Station tripod Turnstile and Passgate with LED indicator light automatic reset fuction

China SHENZHEN  GOLDANTELL TECHNOLOGY CO.,LIMITED certification
China SHENZHEN  GOLDANTELL TECHNOLOGY CO.,LIMITED certification
Good quality products, competitive price and high quality services. Worthy trust and recommending business partner.

—— Alex Wong in Philippines

Goldantell is a Gold supplier, save me a lot of time to do the purchasing! And always giving professional suggestion, help me a lot in business!

—— Asif Khan in Bahrain

Hi,Charlene,we've received the cargo!Our engineer tested the barriers,they all working very well!Now,I wanna make a new order!

—— Michael Fusco in USA

I'm Online Chat Now

Station tripod Turnstile and Passgate with LED indicator light automatic reset fuction

Station tripod Turnstile and Passgate with LED indicator light automatic reset fuction
Station tripod Turnstile and Passgate with LED indicator light automatic reset fuction Station tripod Turnstile and Passgate with LED indicator light automatic reset fuction

Large Image :  Station tripod Turnstile and Passgate with LED indicator light automatic reset fuction

Product Details:
Place of Origin: Guangdong,China
Brand Name: Goldantell
Certification: CE/ROHS/FCC/IS9001
Model Number: GAT-315
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time: 7 working days after received your payment
Payment Terms: T/T ,western Union,LC,Paypal, L/C
Supply Ability: 2,000pcs per month
Detailed Product Description
Working Voltage:: AC220±10%V 50±10%HZ Communication Port: RS485 ,TCP/IP
Compatible: RFID Reader&Fingerprint Reader ,Coin Access,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button Materal: 304 Stainless Steel/316 Stainless Steel
Transit Speed: 30-40 People/minute Service Life: 3000,000 Times
Working Movement: DC24V Solenoid Valve Arm Width: 550m
Work Environment: Indoor Or Outdoor Opening Time: 0.2s
Communication Interface: Standard RS485 Interface, Distance ≤1200m
Highlight:

turnstile security gates

,

pedestrian security gates



Station tripod Turnstile and Passgate with LED indicator light automatic reset fuction





Brief Introductions:

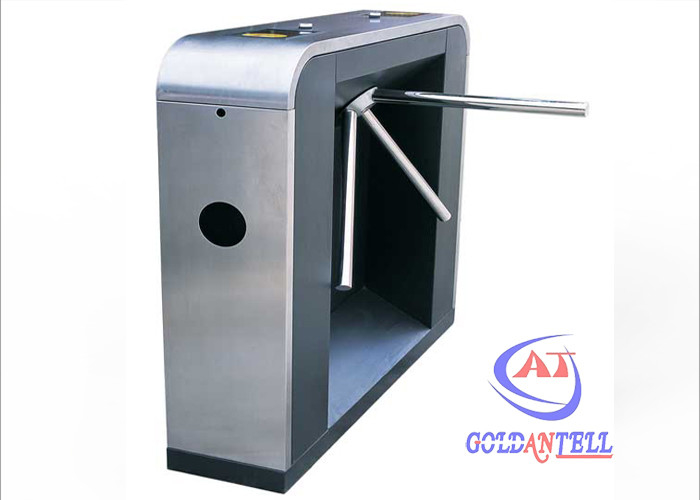

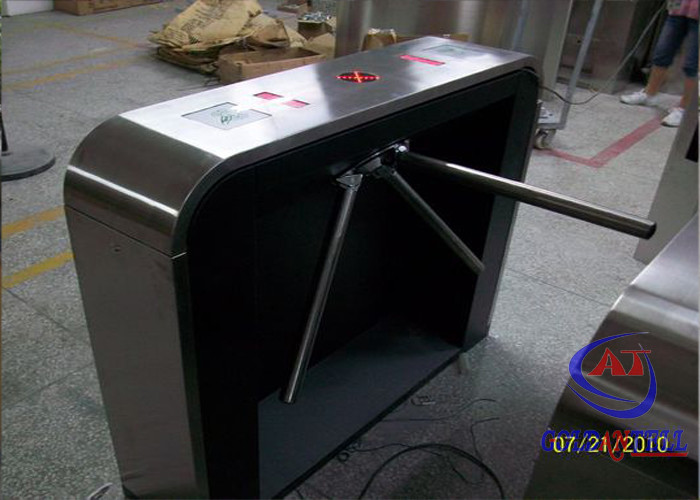

Made of 304 stainless steel,Goldantell tripod turnstile with nice and elegant shape,antirust,durable, Resistant to external damage.Rectangular box and brake lever to be a passage,provide orderly passage to people. Prevent illegal in and out.Arms off in emergency case.This item is widely used in station,pier,subway,factory,office building,intelligent community,hotel,clubs,enterprise,etc.

This equipment is intergrated with mechanism,electric and micro-controller and various kinds of identification technologies,compatible with IC,ID,barcode,fingerprint reader and so on ,to provide intelligent control and management to flow control.

Goldantell tripod turnstile divided into 3 kinds:1)full automatic 2)semi-automatic 3)manual,the semi-automatic is the most widely used.




Specifications:



Item

GAT-315



Working voltage:



AC220±10%V 50±10%HZ(110v)

Arm length:



550mm

Time of opening:



0.2 second

Passage width:



≤600mm

Pass speed:



40 persons/min (open), 25-30 persons/min (closed)

Working environment:



indoor/outdoor (with a tent over) -10℃~70℃

Direction:



single or bi-directional (optional)

Emergence:



When power off, arm open automatically

Normal running life





3 million



Input interface:



+12V level signal or pulse width>100 ms
12V pulse, drive current>10 mA






Features of Flap Barrier Turnstile:



1. Malfunction self-check and alarm reminder, ease of maitenance and use

2. Running method can be set through small buttons on the control panel

3. How arm reacts in emergency

4. How arm reacts when power on

5. Self-reset. pass right will be cancelled if people do not go through within a set time, the default time is 10s ( 0-60 adjustable)

6. Compatible for access control system, consumption system, E-ticekt system, biometric system,   ESD system and so on

7. Unique positioning, self reset, one arm always in the horizontal level

8. LED lamp indicator

9. When open signal is given, arm rotate to a certain degree

10. How arm reacts when people passing

11. One direction or bi-direction flow control

12. Work directly with PC for remote control and management

13. LED counter Display

14. Bi-direction Anti reverse rotation




Advantages



  • Matt finished housing surface, dustproof and rainproof design for outdoor use.
  • Highly integrated solenoid mechanism, 100% heavy duty operation.
  • Drop arm when power off, for emergency use.
  • Convenient installation and maintenance.
  • Malfunction self-detection. Which is easy for operation and maintenance.
  • Audible and visual alarm in case of unauthorized access
  • Friendly and professional customer service people help you in 16 hours
  • we can provide not only product, but also system software management.



detial profile:



Station tripod Turnstile and Passgate with LED indicator light automatic reset fuction 0
