RFID passage entrance Tripod Turnstile With Counter for Factory / tourism / building lobby

  • RFID passage entrance Tripod Turnstile With Counter for Factory / tourism / building lobby
  • RFID passage entrance Tripod Turnstile With Counter for Factory / tourism / building lobby
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE/ROHS/FCC/IS9001
Model Number GAT-313
Minimum Order Quantity 1pc
Price negotiation
Packaging Details Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time 7 working days after received your payment
Payment Terms T/T ,western Union,LC,Paypal, L/C
Supply Ability 2,000pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Domestic Standard 304# Stainless Steel Compatible RFID Reader&Fingerprint Reader ,Coin Acess,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button
Time Of Opening/closing 0.2 Second Passage Width 600mm
Communication Port RS485 ,TCP/IP Application Indoor&outdoor
Size 1200mm (L) * 280mm (W) * 980mm (H) Input Interface +12V Level Signal Or Pulse Width>100ms 12V Pulscurrent>10m
Support Force Of Arm 60kg
Highlight

tripod access system

,

tripod barrier gate
Leave a Message
Product Description

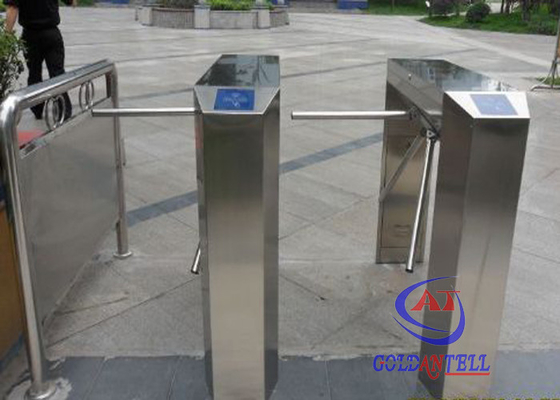

RFID passage entrance Tripod Turnstile With Counter for Factory / tourism / building lobby




 Specifications:



Item

GAT-313


Type


Half height tripod turnstile

Working voltage:


 AC220±10%V 50±10%HZ(110V)

Time of opening


0.2second

Passage width


600mm

Emergence:



When power off, arm open automatically

Transit speed


30-40 people/minute

Input interface:


RFID Reader&Fingerprint Reader ,Coin acess,QR code reader,
Bar code System,ESD Tester Access Control, remote button


Communication interface


RS485/232

Direction:


single or bi-directional (optional)

Normal running life:



Normal running life: 3 million

 Warranty


 1 years




  • stainless steel thickness of the cabinet: customized within 1.2~2.0mm.
  • Material of the cabinet: 304 / 316 grade stainless steel.
  • Surface finish of the cabinet: satin finish / polishing / anti-fingerprint/frosted finish / electroplating / baking finish.


Function:





1. The gate is Bidirectional, according the infrared sensing to enter and exit the passageways.
2. Turnstile can setting the working condition by press the button of main control board.
3. Anti-pinch function: turnstile have Mechanical/ infrared induction Anti-pinch functions( when it is meet the hinder during the reset time, the electrical machine closed work automatically in specified time, the turnstile will default the delayed and reset again till reset succeed)
4. The turnstile will lock when somebody enter the gate illegal, Tailgating or break into negative direction gate.
5. The turnstile is bidirectional (pedestrian can enter and exit from one pair of turnstiles)
6. Can manager and long-range control the turnstile directly by managing the computer5. Before received the open signal, the turnstile will lock automatically
7. The arm have the collision avoidance function: when the turnstile arm closed, if it is under the collision, the arm will open to protect the Transmission of inner machine.
8.The turnstile can work with door access control system/ consumption system /biometric recognition system/ ESD system and so on
9. Automatic Reset Functions: after you swap the card, during the specific time (the system is



Extended function:


1.LED counting function

2.Box house can lengthen, swing arm lengthen

3.Infrared logical judgment function (you can choose 8 pairs or 10 pairs Infrared)
4.Voice Prompt Function

5. Normally open or closed can be adjust to meet the requirements of the different place.
6.Sound and light alarm prompt functions

7.Stroboscopic lamp prompt function: site administrator can find the turnstile problem quickly           and accurately





Application:


  • Supermarket
  • Subway Station, Bus Station
  • Tourism
  • Bank
  • Theater
  • Swimming Hall
  • Fitness Gym
  • Residence Area
  • supermarket



Control System:



RFID passage entrance Tripod Turnstile With Counter for Factory / tourism / building lobby 0
