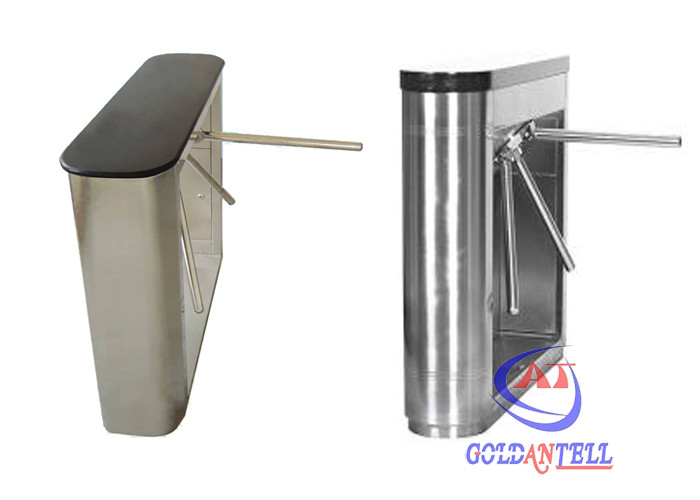

Drop arm gate tripod tuenstile with RFID reader barcode fingerprint and ESD

Drop arm gate tripod tuenstile with RFID reader barcode fingerprint and ESD
Drop arm gate tripod tuenstile with RFID reader barcode fingerprint and ESD

Large Image :  Drop arm gate tripod tuenstile with RFID reader barcode fingerprint and ESD

Product Details:
Place of Origin: Guangdong,China
Brand Name: Goldantell
Certification: CE/ROHS/FCC/IS9001
Model Number: GAT-311
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time: 7 working days after received your payment
Payment Terms: T/T ,western Union,LC,Paypal, L/C
Supply Ability: 2,000pcs per month
Detailed Product Description
Motor: DC24V Solenoid Valve Working Environment: Working Environment: Indoor/outdoor (with A Tent Over) -10℃~70℃
Compatible: RFID Reader&Fingerprint Reader ,Coin Acess,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button Time Of Opening/closing: 0.2second
Passage Width: 600mm Pass Speed: 40 Persons/min (open), 25-30 Persons/min (closed)
Working Voltage:: AC220±10%V 50±10%HZ Material: 304 Stainless Steel
Direction: Single Or Bi-directional (optional) Emergence: When Power Off, Arm Open Automatically
Communication Interface: Standard RS485 Interface, Distance ≤1200m
Highlight:

tripod access system

,

tripod barrier gate

Drop arm gate tripod tuenstile with RFID reader barcode fingerprint and ESD





Specifications:



Item



GAT-311

Working voltage:


AC220±10%V 50±10%HZ

Pass speed:



40 persons/min (open), 25-30 persons/min (closed)

Reset time after break down:


0.2 seconds

Direction:


single or bi-directional (optional)

Input interface:


RFID Reader&Fingerprint Reader ,Coin acess,QR code reader,
Bar code System,ESD Tester Access Control, remote button



Communication interface


RS485/232

Emergence:



 When power off, arm open automatically

Normal running life:

 3 million







Functions:





1. The gate is Bidirectional, according the infrared sensing to enter and exit the passageways.



2. Turnstile can setting the working condition by press the button of main control board.



3. Anti-pinch function: turnstile have Mechanical/ infrared induction Anti-pinch functions( when it is meet the hinder during the reset time, the electrical machine closed work automatically in specified time, the turnstile will default the delayed and reset again till reset succeed)



4. The turnstile will lock when somebody enter the gate illegal, Tailgating or break into negative direction gate.



5. Before received the open signal, the turnstile will lock automatically



6. The arm have the collision avoidance function: when the turnstile arm closed, if it is under the collision, the arm will open to protect the Transmission of inner machine.



7. Automatic Reset Functions: after you swap the card, during the specific time (the system is 10s), if you didn’t pass the turnstile, the system will cancel your authority automatically to pass the gate, (reset time is 1~60s you can adjust it what time is suit for you). totally meet the fire protection needs



8. Can manager and long-range control the turnstile directly by managing the computer.



9. Can manager and long-range control the turnstile directly by managing the computer.





Extend Functions:



1.LED counting function



2.Box house can lengthen, swing arm lengthen



3.Infrared logical judgment function (you can choose 8 pairs or 10 pairs Infrared)



4. Normally open or closed can be adjust to meet the requirements of the different place.


5.Voice Prompt Function  and light alarm prompt functions







Features:





The Tripod Turnstiles are very robust products able to function inside and outside buildings.

The Tripod Turnstile is a waist-height tripod turnstile in a self-supporting housing (2 Feet).

The Tripod Turnstile with dropping arm to free the walkway in the event of an emergency or for certain applications

1.Security

. Active arm can drop clear (emergency or application)

Arms cannot be removed without special tools

. Mechanism cannot be forced

2.Economic

. Inactive arms do not hinder the passage

. Simple to install

3.Flexibility

. Removable end covers for easy integration of any type of access control device

. Numerous configurations covering all cases of pedestrian access control







System Integration





Integrate with access control system required by customers, and built-in reader appointed by customer.

Integrate with visitor management system.

Integrate with ticketing system.





Drop arm gate tripod tuenstile with RFID reader barcode fingerprint and ESD 0
