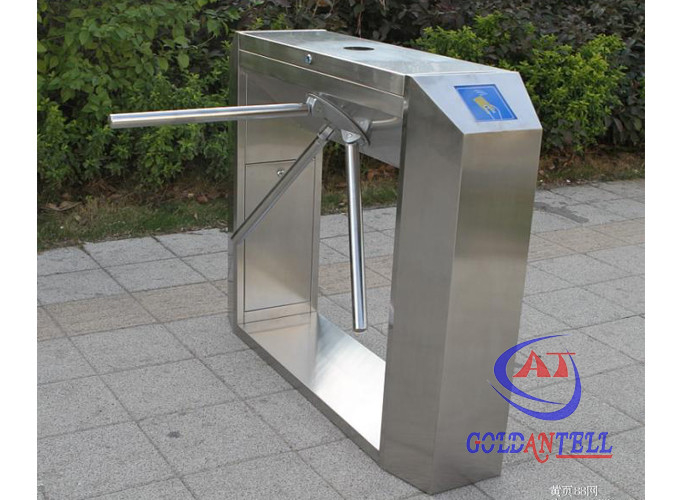

Revolving door Optical tripod turnstiles gate in sercurity pedestrian control

Revolving door Optical  tripod   turnstiles gate in sercurity pedestrian control
Revolving door Optical  tripod   turnstiles gate in sercurity pedestrian control

Large Image :  Revolving door Optical tripod turnstiles gate in sercurity pedestrian control

Product Details:
Place of Origin: Guangdong,China
Brand Name: Goldantell
Certification: CE/ROHS/FCC/IS9001
Model Number: GAT-303
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time: 7 working days after received your payment
Payment Terms: T/T ,western Union,LC,Paypal, L/C
Supply Ability: 2,000pcs per month
Detailed Product Description
Compatible: RFID Reader&Fingerprint Reader ,Coin Acess,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button Time Of Opening/closing: 0.2second
Passage Width: 600mm Reset Time After Break Down:: 10 Seconds
Direction:: Single Or Bi-directional (optional) Size: 1200mm (L) * 280mm (W) * 980mm (H)
Normal Running Life: 3 Million Communication Interface: Standard RS485 Interface, Distance ≤1200m
Input Interface: +12V Level Signal Or Pulse Width>100ms 12V Pulse, Drive Current>10mA
Highlight:

tripod access system

,

tripod barrier gate

Revolving door Optical tripod turnstiles gate in sercurity pedestrian control


 Specifications:


Item

GAT-303


Passage width


600mm

Pass speed


40 persons/min (open), 25-30 persons/min (closed)

Time of opening / closing


0.2 seconds

Direction


single or bi-directional (optional)

Emergence:


When power off, arm open automatically


Input interface:



RFID Reader&Fingerprint Reader ,Coin acess,QR code reader,
Bar code System,ESD Tester Access Control, remote button


Support


operating video& Instruction will be sent to clients to help them better use the machines


OME


OEM arm length,custom logo,custom size

Input interface


 +12V level signal or pulse width>100ms 12V pulse,drive current>10mA




Brief Introductions:


Made of 304 stainless steel,Goldantell tripod turnstile with nice and elegant shape,antirust,durable, Resistant to external damage.Rectangular box and brake lever to be a passage,provide orderly passage to people. Prevent illegal in and out.Arms off in emergency case.This item is widely used in station,pier,subway,factory,office building,intelligent community,hotel,clubs,enterprise,etc.


This equipment is intergrated with mechanism,electric and micro-controller and various kinds of identification technologies,compatible with IC,ID,barcode,fingerprint reader and so on ,to provide intelligent control and management to flow control.

  Goldantell tripod turnstile divided into 3 kinds:1)full automatic 2)semi-automatic 3)manual,the semi-           automatic is the most widely used.

 Function:



  1. The gate is Bidirectional, according the infrared sensing to enter and exit the passageways.
  2. Turnstile can setting the working condition by press the button of main control board.
  3. Anti-pinch function: turnstile have Mechanical/ infrared induction Anti-pinch functions( when it is meet the hinder during the reset time, the electrical machine closed work automatically in specified time, the turnstile will default the delayed and reset again till reset succeed)
  4. The turnstile will lock when somebody enter the gate illegal, Tailgating or break into negative direction gate.
  5.  Before received the open signal, the turnstile will lock automatically
  6.  The arm have the collision avoidance function: when the turnstile arm closed, if it is under the collision, the arm will open to protect the Transmission of inner machine.
  7.  Automatic Reset Functions: after you swap the card, during the specific time (the system is 10s), if you didn’t pass the turnstile, the system will cancel your authority automatically to pass the gate, (reset time is 1~60s you can adjust it what time is suit for you). totally meet the fire protection needs
  8. The turnstile can work with door access control system/ consumption system /biometric recognition system/ ESD system and so on
  9. The turnstile is bidirectional (pedestrian can enter and exit from one pair of turnstiles)
  10. Can manager and long-range control the turnstile directly by managing the computer.

Extented function:

  • 1.LED counting function
  • 2.Box house can lengthen, swing arm lengthen
  • 3.Infrared logical judgment function (you can choose 8 pairs or 10 pairs Infrared)
  • Voice Prompt Function
  • 4. Normally open or closed can be adjust to meet the requirements of the different place.
  • Sound and light alarm prompt functions
  • 5.Stroboscopic lamp prompt function: site administrator can find the turnstile problem quickly and accurately

Application:

  • Supermarket
  • Subway Station, Bus Station
  • ,Airports, Hoverport
  • Tourism
  • Exhibition,
  • Hotel
  • Bank
  • Swimming Hall,Fitness Gym
  • Residence Area
  • Enterprise’s Entrance and Exit Attendance
