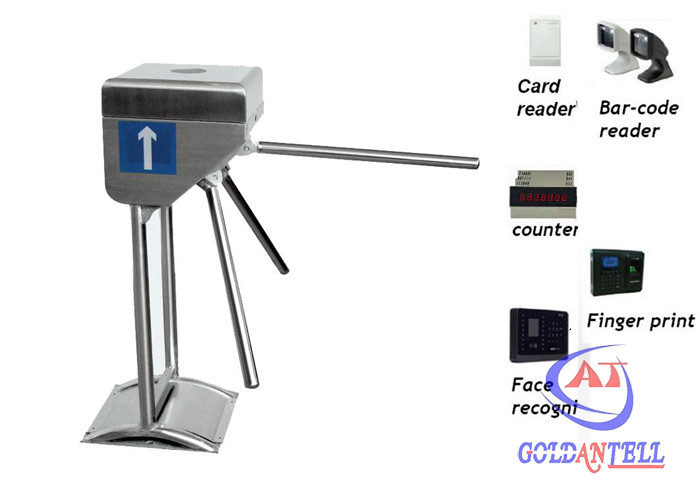

Bus station three arm gate tripod turnstile for Intelligent flow control

Bus station three arm gate tripod turnstile for Intelligent flow control
Bus station three arm gate tripod turnstile for Intelligent flow control

Large Image :  Bus station three arm gate tripod turnstile for Intelligent flow control

Product Details:
Place of Origin: Guangdong,China
Brand Name: Goldantell
Certification: CE/ROHS/FCC/IS9001
Model Number: GAT-622
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time: 7 working days after received your payment
Payment Terms: T/T ,western Union,LC,Paypal, L/C
Supply Ability: 2,000pcs per month
Detailed Product Description
Motor: DC24V Solenoid Valve Housing Material: Domestic Standard 304# Stainless Steel
Time Of Opening/closing: 0.6second Passage Width: 600mm
Application: Indoor And Outdoor Support Force Of Arm:: 60kg
Emergence: When Power Off, Arm Open Automatically Input Interface: +12V Level Signal Or Pulse Width>100ms 12V Pulse, Drive Current>10mA
LED Light: Direction Arrow Direction: Single Or Bi-directional (optional)
Highlight:

tripod access system

,

tripod barrier gate

Bus station three arm gate tripod turnstile for Intelligent flow control

 Specifications:


Item

GAT-307


Working voltage:


AC220±10%V 50±10%HZ

Time of opening


0.6second

Passage width


600mm

Reset time after break down


10 seconds

Integration


machine, electronics, micro-processor control and ID identification

Direction:


single or bi-directional (optional)

Transit speed


30-40 people/minute


Input interface:


RFID Reader&Fingerprint Reader ,Coin acess,QR code reader,
Bar code System,ESD Tester Access Control, remote button


Communication interface


RS485/232

Emergence:


When power off, arm open automatically



Features:

The Tripod Turnstiles are very robust products able to function inside and outside buildings.
The Tripod Turnstile is a waist-height tripod turnstile in a self-supporting housing (2 Feet).
The Tripod Turnstile with dropping arm to free the walkway in the event of an emergency or for certain applications
. Active arm can drop clear (emergency or application)
. Arms cannot be removed without special tools
. Mechanism cannot be forced
. Inactive arms do not hinder the passage
. Simple to install
. Removable end covers for easy integration of any type of access control device
. Numerous configurations covering all cases of pedestrian access control

  Appearance, Material & Surface Finish:



  • stainless steel thickness of the cabinet: customized within 1.2~2.0mm.
  • Material of the cabinet: 304 / 316 grade stainless steel.
  • Surface finish of the cabinet: satin finish / polishing / anti-fingerprint/frosted finish / electroplating / baking finish.

 Control system:



  • RFID Reader&Fingerprint Reader
  • Coin acess,QR code reader
  • Bar code System
  • ESD Tester Access Control
  • Remote button


Application:


  • Supermarket
  • Subway Station, Bus Station
  • ,Airports
  • Tourism
  • Exhibition
  • Theater
  • Swimming Hall
  • Fitness Gym
  • Residence Area
  • Enterprise’s Entrance and Exit Attendance
  • Toll Management


Direction Indicator:

The installation position of direction indicator can be adjusted.
The pattern of direction indicator can be customized


System integration:

Integrate with access control system required by customers, and built-in reader appointed by customer.
Integrate with visitor management system.
