Product Details:
Payment & Shipping Terms:
|
| Motor: | DC24V Solenoid Valve | Housing Material: | Domestic Standard 304# Stainless Steel |
|---|---|---|---|
| Time Of Opening/closing: | 0.2 Second | Passage Width: | 600mm |
| Communication Port: | RS485 ,TCP/IP | Application: | Indoor And Outdoor |
| OEM: | OEM Arm Length,custom Logo,custom Size | Size: | 1200mm (L) * 280mm (W) * 980mm (H) |
| Direction: | Single Or Bi-directional (optional) | Normal Running Life: | 3 Million |
| Highlight: | pedestrian security gates,stainless steel turnstiles |
||

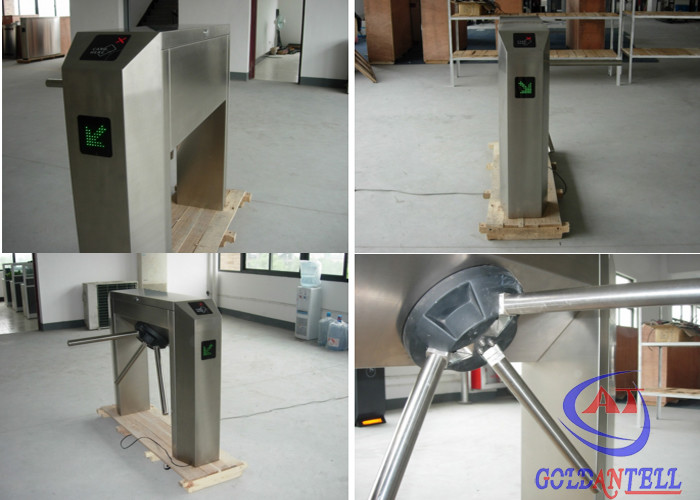

Biometric function rolling gate tripod turnstile with counter in rustproof stainless steel
Specifications:
Item | GAT-305 |
Working voltage: | AC220±10%V 50±10%HZ (110V) |
Time of opening | 0.2second |
Passage width | 600mm |
Direction: | single or bi-directional (optional) |
Communication interface: | standard RS485 interface, distance ≤1200m |
Transit speed | 30-40 people/minute |
Input interface: | RFID Reader&Fingerprint Reader ,Coin acess,QR code reader, |
Normal running life: | 3 million |
Working environment | Indoor/outdoor (with a tent over) -10℃～70℃ |
Relative humidity: | ≤90% coagulation free |
Functions:
1. Malfunction self-check and alarm reminder, ease of maitenance and use
2. Running method can be set through small buttons on the control panel
3. How arm reacts in emergency
4. How arm reacts when power on
5. Self-reset. pass right will be cancelled if people do not go through within a set time, the default time is 10s ( 0-60 adjustable)
6. Compatible for access control system, consumption system, E-ticekt system, biometric system, ESD system and so on
7. Unique positioning, self reset, one arm always in the horizontal level
8. When open signal is given, arm rotate to a certain degree
9. How arm reacts when people passing
10. One direction or bi-direction flow control
11. Work directly with PC for remote control and management
11. LED counter Display
13. Bi-direction Anti reverse rotation
Introduction&Specification :
This equipment is subtly integrated with machine, electronics, micro-processor control and ID identification, provides convenience for the use of card reader identification equipments, such as IC card, ID card, bar code and fingerprint.,etc.Also,it can with IR sensor,when people near the gate,the gate will open automatically,no need any access control system. It can carry out intelligent control and management to the passageway through choosing various identification equipments
| Control system | RFID Reader&Fingerprint Reader |
| Direction Indicator | |
| |
Application:
