Full automatic rotating gate tripodHalf Height Turnstiles in universal remote control
| Place of Origin | Guangdong,China |
|---|---|
| Brand Name | Goldantell |
| Certification | CE/ROHS/FCC/IS9001 |
| Model Number | GAT-303 |
| Minimum Order Quantity | 1pc |
| Price | negotiation |
| Packaging Details | Packed in carton firstly,and then reinforced with export wooden case for outer packing |
| Delivery Time | 7 working days after received your payment |
| Payment Terms | T/T ,western Union,LC,Paypal, L/C |
| Supply Ability | 2,000pcs per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Motor | DC24V Solenoid Valve | Housing Material | Domestic Standard 304# Stainless Steel |
|---|---|---|---|
| Compatible | RFID Reader&Fingerprint Reader ,Coin Acess,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button | Arm Width | Arm Width: 500 Mm |
| Time Of Opening/closing | 0.2 Second | Passage Width | 600mm |
| Support Force Of Arm | 60kg | Communication Interface | Communication Interface: Standard RS485 Interface, Distance ≤1200m |
| Pass Speed | Pass Speed: 30 Persons/min | ||
| Highlight | turnstile security gates,stainless steel turnstiles |
||
Product Description

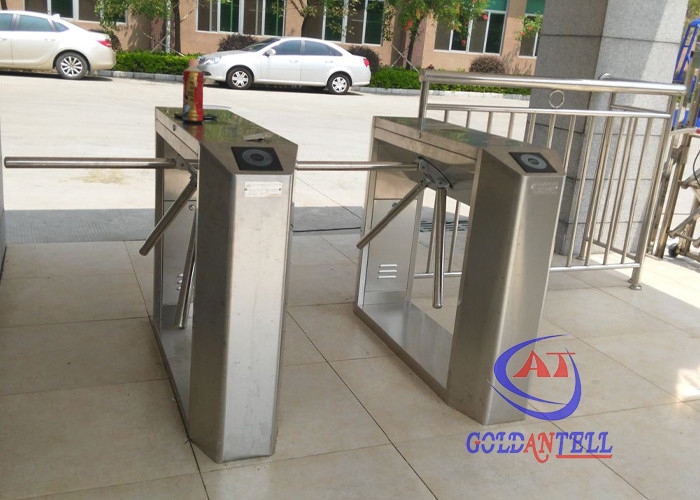

Full automatic rotating gate tripod turnstile in universal remote control
Specifications:
Item | GAT-303 |
Passage width | 600mm |
Pass speed: | 40 persons/min (open), 25-30 persons/min (closed) |
Reset time after break down: | 10 seconds |
Direction: | single or bi-directional (optional) |
Communication interface | standard RS485 interface, distance ≤1200m |
Input interface: | RFID Reader&Fingerprint Reader ,Coin acess,QR code reader, |
Support | operating video& Instruction will be sent to clients to help them better use the machines |
Emergence: | When power off, arm open automatically |
Trade terms | EX-W,FOB,CIF,DDU(select area) |
Function:
- The gate is Bidirectional, according the infrared sensing to enter and exit the passageways.
- Turnstile can setting the working condition by press the button of main control board.
- Anti-pinch function: turnstile have Mechanical/ infrared induction Anti-pinch functions( when it is meet the hinder during the reset time, the electrical machine closed work automatically in specified time, the turnstile will default the delayed and reset again till reset succeed)
- The turnstile will lock when somebody enter the gate illegal, Tailgating or break into negative direction gate.
- Before received the open signal, the turnstile will lock automatically
- The arm have the collision avoidance function: when the turnstile arm closed, if it is under the collision, the arm will open to protect the Transmission of inner machine.
- Automatic Reset Functions: after you swap the card, during the specific time (the system is 10s), if you didn’t pass the turnstile, the system will cancel your authority automatically to pass the gate, (reset time is 1~60s you can adjust it what time is suit for you). totally meet the fire protection needs
- The turnstile can work with door access control system/ consumption system /biometric recognition system/ ESD system and so on
- The turnstile is bidirectional (pedestrian can enter and exit from one pair of turnstiles)
- Can manager and long-range control the turnstile directly by managing the computer.
Control system:
| access control system | |
| counter, coin- operation. |
| ESD tester system and function |
Application:
- Supermarket
- Subway Station, Bus Station
- ,Airports, Hoverport
- Tourism
- Exhibition,Hotel
- Bank
- ,Library,Theater
- Swimming Hall,Fitness Gym
- Residence Area
- Enterprise’s Entrance and Exit Attendance
Appearance, Dimension, Material & Surface Finish:
- Appearance: customized according to customer’s requirement.
- stainless steel thickness of the cabinet: customized within 1.2~2.0mm.
- Material of the cabinet: 304 / 316 grade stainless steel.
- Surface finish of the cabinet: satin finish / polishing / anti-fingerprint/frosted finish / electroplating / baking
