Ticket tripod turnstile flow control passing with hs code and FRID card for scenic spot

  • Ticket tripod turnstile flow control passing with hs code and FRID card for scenic spot
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE/ROHS/FCC/IS9001
Model Number GAT-301
Minimum Order Quantity 1pc
Price negotiation
Packaging Details Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time 7 working days after received your payment
Payment Terms T/T, Western Union, L/C,Paypal
Supply Ability 2,000pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Tripod Turnstile For Gym Application Place Gym , Amusement Park , Stadium , Pulic Area , Office Building , Club, Etc
Gross Weight 70KG Material 304 Stainless Steel
Size Of Product 1200mm (L) * 280mm (W) * 980mm (H) Compatible RFID Reader & Fingerprint Reader , Coin Acess , QR Code Reader,Bar Code System ,ESD Tester Access Contro L, Remote Button
Communication Port RS485 ,TCP/IP Production Time 7 Working Days
Passage Width ≤600 Mm LED Light Direction Arrow
Highlight

tripod access system

,

tripod barrier gate
Leave a Message
Product Description



Ticket tripod turnstile flow control passing with hs code and FRID card for scenic spot





Tripod Turnstile Technical Parameters　



Material

 domestic standard 304# stainless steel

work voltage

 AC220V±10% 50HZ±10%

Core

 DC24V solenoid valve

Size

 1200*280*980mm

Arm length

 500mm

Support force of arm:

 60kg

Max lane width

 550MM

Rotation direction for arm

 left or right, or bi-directional

Card reading window

 standard or customized

Work environment

 indoor or outdoor, 10°C~70°C , relative humidity::≤90%, no condensation

Barrier open time

 0.2s

Transit speed

 30 people/minute

Emergency

 auto drop for arm

Normal work life

 3,000,000 times

Communication interface

 RS 485, distance ≤1200m

Input interface

 relay switch signal, 12V level signal or 12V pulse signal, pulse width>100ms,drive current >10Ma





Functions



​

  • Malfunction self-check and alarm reminder, ease of maitenance and use
  • Running method can be set through small buttons on the control panel
  • How arm reacts in emergency
  • How arm reacts when power on
  • Self-reset. pass right will be cancelled if people do not go through within a set time, the default time is 10s ( 0-60 adjustable)
  • Compatible for access control system, consumption system, E-ticekt system, biometric system, ESD system and so on
  • Unique positioning, self reset, one arm always in the horizontal level
  • LED lamp indicator
  • When open signal is given, arm rotate to a certain degree
  • How arm reacts when people passing
  • One direction or bi-direction flow control
  • Work directly with PC for remote control and management
  • LED counter Display
  • Bi-direction Anti reverse rotation

Feature :


The Tripod Turnstiles are very robust products able to function inside and outside buildings.

The Tripod Turnstile is a waist-height tripod turnstile in a self-supporting housing (2 Feet).

The Tripod Turnstile with dropping arm to free the walkway in the event of an emergency or for certain applications

1.Security

. Active arm can drop clear (emergency or application)

Arms cannot be removed without special tools

. Mechanism cannot be forced

2.Economic

. Inactive arms do not hinder the passage

. Simple to install

3.Flexibility

. Removable end covers for easy integration of any type of access control device

. Numerous configurations covering all cases of pedestrian access control

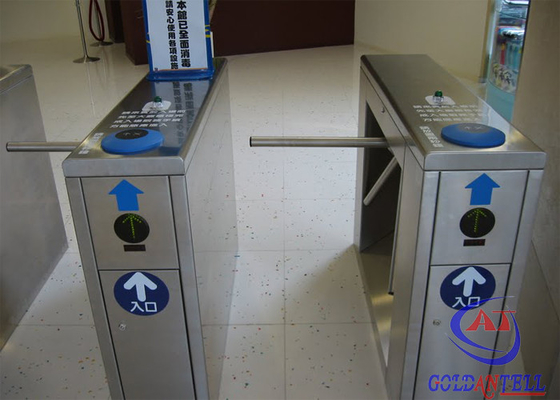

 Tripod Turnstile  Picture



Ticket tripod turnstile flow control passing with hs code and FRID card for scenic spot 0





Access Control:



Ticket tripod turnstile flow control passing with hs code and FRID card for scenic spot 1





Trading terms:



Payment Terms T/T ,western Union,LC,Paypal
Supply Ability 2,000pcs per month
Packaging Details: Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery way Sample normally by air cargo or express,quantity purchase by sea
Warranty 12 months
Trade terms EX-W,FOB,CIF,DDU
OME Custoon logo and size
