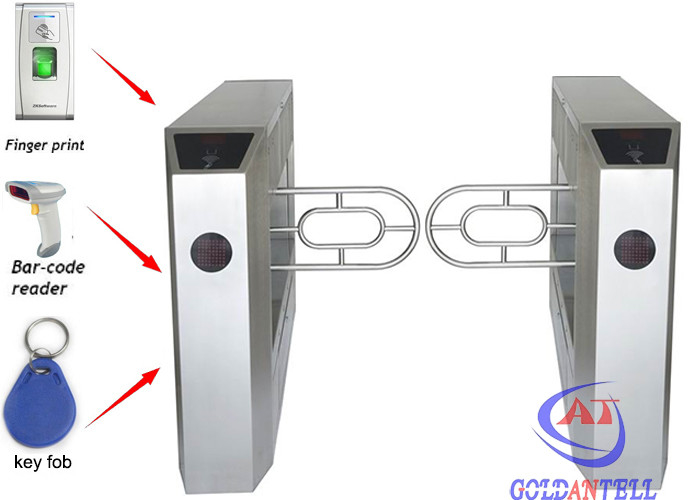

Multiple Read Full Automatic Swing Barrier Gate 304 304 Stainless Steel

Multiple Read Full Automatic Swing Barrier Gate 304 304 Stainless Steel

Tchnical parameters

1 . Power : AC220C±10V,50HZ

2 . Operating temperature: -15°C--75°C

3 . Arm length: 60-90cm

4 . Passing Speed : 30~40 persons/min

5 . Motor: 0.5NM/24V(Fully Automatic)

6 . Input Connection: +12V Level Signal or Pulse Wide>100ms DC12V

7 . Communication Connection: RS485 Communication Module Standard.

8 . Material: SUS304,thickness is no less than 1.3mm

9 . Protection Grade: IP54

10 . Operation Place: Subway Station, Hoverport,Tourism Sports,Exhibition, Swimming Hall,Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Charge Management,Special Access Control

Brief introduction of access control system

Our Turnstile can combine with different kinds of access readers,like: RFID Reader&Fingerprint Reader &Coin Machine&Barcode System&ESD Tester Access Control(If you have access control system,you can only purchase our turnstiles,if not, our side will install the access control system for you),except acess system,also can use remote(this is free gift to you

Features

1 . Problem-self-checking function.

2 . Many options of working ways: Bi-direction card reading; One direction card reading and another no reading; One direction card reading and another freely. And single direction photocell controlled passing and close.

3 . When valid card read and passenger passed, arm can be delayed to close from 1-60s which can be set in the control panel.

4 . Auto-reposition function: After card read, passenger not pass within regulated time period, full-height turnstile will cancel this passing right.

5 . When power off, arm open automatically and power on again, arm will be held automatically.

6 . Flap barrier is with 485 interface for long-distrance control concern.

7 . Anti-rush function: If there is no open single, arm will be holding tightly.

8 . If passenger pass without card read or valid card read, flap barrier will alarm untill passenger get back from the flap barrier and then take a valid card to be read for passing.

Extendable functions

1 . Counter function (optional)

2 . The length of the cabinet (length 1.2m, 1.4m, or 1.6m are optional)

3 . The material of flap arm (organic glass, resin, PVC etc. optional)

4 . The color of the flap arm (red, blue, yellow, colorless, etc.)

Package

1 . Inside with a carton package.

2 . Outside,there are 2 kinds of packages under your choice: crate package and closed wooden package.

Ieading time

For standard item

10-50 sets:5 working days
50-100 sets:7-10 working days
200-500 sets:10-15 working days
For special item, or need custom design package or logo, need 3-10 working days longer

Payment terms

TT,western union,L/C,our company already joined the trade assurance,it will highly protect your order security.

Transportation

For sample,normaly send by air or express,about 3-5 days

For quantity purchase,normally by sea, it normally takes 7-60 days depend on different countries.
