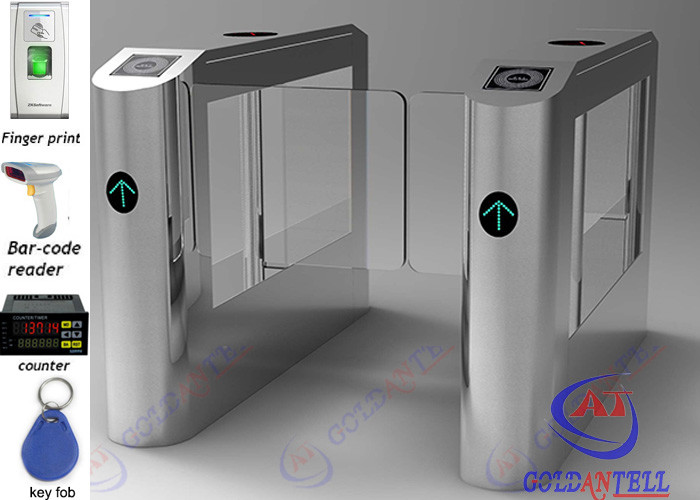

Bi directional waist high automatic swing gate Access Control System

Bi directional waist high automatic swing gate Access Control System
Bi directional waist high automatic swing gate Access Control System

Large Image :  Bi directional waist high automatic swing gate Access Control System

Product Details:
Place of Origin: Guangdong,China
Brand Name: Goldantell
Certification: CE/ROHS/FCC/IS9001
Model Number: GAT-616
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time: 7 working days after received your payment
Payment Terms: T/T ,western Union,LC,Paypal, L/C
Supply Ability: 2,000pcs per month
Detailed Product Description
Product Name: Sliding Baffle Swing Barrier Gate With Alarming Equipment And Direction Indicating Motor: DC24V Solenoid Valve
Compatible: RFID Reader&Fingerprint Reader ,Coin Acess,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button Time Of Opening/closing: 1 Second
Passage Width: 530-830mm Pass Speed: Pass Speed: 40 Persons/min (open), 25-30 Persons/min (closed)
Material: 304 Stainless Steel Communication Port: RS485 ,TCP/IP
OEM: OEM Arm Length,custom Logo,custom Size
Highlight:

turnstile security gates

,

pedestrian security gates

Bi directional waist high automatic swing gate Access Control System



Technical parameter


Place of Origin: Guangdong, China (Mainland)

Brand Name: Goldantell

Specification: 1200*280*990mm

material quality: stainless steel

Weight: 160(kg)

Power: 220V AC

direction indicator: LED

Frequency: 50Hz at 110V AC and 60Hz (optional)

Dry contact: 12V DC

Temperature: -15°C——+75°C

Transit speed: 30—40persons per minute

Humidity: <90%RH

type: Two directions controlled/one direction controlled



Function

1 . Problem-self-checking function.

2 . Many options of working ways: Bi-direction card reading; One direction card reading and another no reading; One direction card reading and another freely. And single direction photocell controlled passing and close. Working ways can be set in the control panel.

3 . When power off, arm open automatically and power on again, arm will be held automatically.

4 . When valid card read and passenger passed, arm can be delayed to close from 1-60s which can be set in the control panel.

5 . Auto-reposition function: After card read, passenger not pass within regulated time period, full-height turnstile will cancel this passing right. And the regulated time period for passing can be set by managers.

6 . If passenger pass without card read or valid card read, flap barrier will alarm untill passenger get back from the flap barrier and then take a valid card to be read for passing.

7 . Flap barrier is with 485 interface for long-distrance control concern.

8 . Anti-rush function: If there is no open single, arm will be holding tightly.

9 . Stable running with little noise.



Project picture

Bi directional waist high automatic swing gate Access Control System 0



Bi directional waist high automatic swing gate Access Control System 1



Access control

Bi directional waist high automatic swing gate Access Control System 2



Trade Term

1 . This offer is valid with 30 days.

2 . Delivery time: Within 7 days after receive the payment

3 . Item of payment: T/T ,LC,Western Union ,Escrow ,Paypal total payment before delivery

4 . Carton box+wooden case/crate



Delivery detail

1 . When ship by sea,it normally takes 15-60 days depend on different countries.

2 . We ship goods by UPS/DHL/FEDEX/TNT express which is door to door,it normally takes 3~ 5 days to arrive;

3 . We can also help you ship by air cargo ,it takes about 2-7 days to arrive ;

No matter what delivery way ,depending on your actual requirements.



Our services

1 . For all your inquires about us or our turnstiles, we will reply you in detail within 24 hours
2 . We own well-tranied and passional sales & after- sale services who can speak fluent Engligh language
3 . We offer OEM services. Can print your own logo on turntile , can customize the retail box packing and other things.

4 . We have very experienced engineers ,can help you better use turnstiles.
