Supermarket Bi - directional turnstile entry systems By Infrared Induction

Supermarket Bi - directional turnstile entry systems By Infrared Induction
Supermarket Bi - directional turnstile entry systems By Infrared Induction

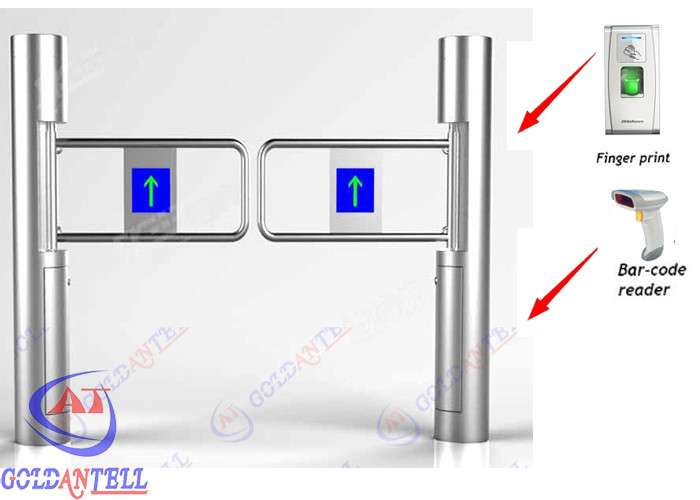

Large Image :  Supermarket Bi - directional turnstile entry systems By Infrared Induction

Product Details:
Place of Origin: Guangdong,China
Brand Name: Goldantell
Certification: CE/ROHS/FCC/IS9001
Model Number: GAT-610
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time: 7 working days after received your payment
Payment Terms: T/T ,western Union,LC,Paypal, L/C
Supply Ability: 2,000pcs per month
Detailed Product Description
Product Name: Supermarket Swing Barrier Gate With Sound And Light Alarm Prompt Functions Motor: DC24V Solenoid Valve
Housing Material: Domestic Standard 304# Stainless Steel Compatible: RFID Reader&Fingerprint Reader ,Coin Acess,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button
Time Of Opening/closing: 1 Second Passage Width: 530-830mm
Type: Half Height Swing Barrier Communication Port: RS485 ,TCP/IP
Application: Indoor&outdoor (with A Tent Over)
Highlight:

security swing gate

,

waist high turnstiles

Supermarket Bi - directional turnstile entry systems By Infrared Induction



Technical parameters

1 . Housing material: domestic 304# stainless steel (1.0~2.0mm)

2 . Working voltage: AC220±10%V 50±10%HZ

3 . Driving motor: DC24V brush motor

4 . Size: diameter: main pole: Φ168mm height: 1000mm

5 . Passage width: 450-850mm

6 . Swing arm angle: 180 degree

7 . Direction: single or bi-directional (optional)

8 . Working environment: indoor/outdoor (with a tent over) -10℃~70℃
9 . Relative humidity: ≤90% coagulation free

10 . Time of opening/closing: 1 second

11 . Pass speed: 40 persons/min (open), 25-30 persons/min (closed)

12 . Time to work after power on: 3 seconds

13 . Reset time after break down: 10 seconds

14  .Normal running life: 3 million

15 . Communication interface: standard RS485 interface, distance ≤1200m

16 . Input interface: +12V level signal or pulse width>100ms 12V pulse, drive
current>10mA



Features

1 . Problem-self-checking function.

2 . Many options of working ways: Bi-direction card reading; One direction card reading and another no reading; One direction card reading and another freely. And single direction photocell controlled passing and close. Working ways can be set in the control panel.

3 . When power off, arm open automatically and power on again, arm will be held automatically.

4 . When valid card read and passenger passed, arm can be delayed to close from 1-60s which can be set in the control panel.

5 . Auto-reposition function: After card read, passenger not pass within regulated time period, full-height turnstile will cancel this passing right. And the regulated time period for passing can be set by managers.

6 . If passenger pass without card read or valid card read, flap barrier will alarm untill passenger get back from the flap barrier and then take a valid card to be read for passing.

7 . Flap barrier is with 485 interface for long-distrance control concern.

8 . Anti-rush function: If there is no open single, arm will be holding tightly.

9 . Stable running with little noise.



Access control syatem

Supermarket Bi - directional turnstile entry systems By Infrared Induction 0



Package

Inside with a carton package.Then outside,there are 2 kinds of packages under your choice: crate package and closed wooden package.



Project picture

 Supermarket Bi - directional turnstile entry systems By Infrared Induction 1



FAQ

1-Can you install RFID card reader on the turnstile?

Yes,except the RFID card reader system,we also can install fingerprint reader system,token system,esd system,etc.

2-How about the guarantee and after sale service?

We have 12 month quality guarantee, We own well-trained and passional sales & after- sale services who can speak fluent English language

3-How long is the leading time?

For standard item

10-50 sets:5 working days
50-100 sets:7-10 working days
200-500 sets:10-15 working days
For special item, or need custom design package or logo, need 3-10 working days longer

4-How about the payment terms?

TT,western union,L/C,our company already joined the trade assurance,it will highly protect your order security.

5-How do you send the product to me,how long?

For sample,normaly send by air or express,about 3-5 days

For quantity purchase,normally by sea, it normally takes 7-60 days depend on different countries.

7-Can you do OEM service?

We offer below OEM services:

1)We can make custom design turnstile,or you tell me your requirements ,we can make a design for you.

2)Can print your logo on turnstiles, can customize the retail box packing and other things.
