DC Brushless Motor Pedestrian security gates / train station turnstile Access Control

DC Brushless Motor Pedestrian security gates / train station turnstile Access Control

Brief Introduction

Goldantell swing turnstile is a high-tech product which mainly provides intelligent management to passageway.This product is finely processed with complete functions and high level, suitable for high-level neighborhoods, intelligent buildings, hotel, subway, port and club,etc.

Technical parameters
1 . Power:AC220C±10V,50HZ
2 . Relative Humidity :≤95%, No Condensation
4 . Arm length : 60-90cm
5 . Passing Speed:30~40 persons/min(IC Card)
6 . Motor :0.5NM/24V
7 . Input Connection:+12V Level Signal or Pulse Wide>100ms DC12V
8 . Communication Connection :RS485 Communication
9 . Material:SUS304,thickness is no less than 1.3mm

10 . Protection Grade:IP54

Function and features

1 . Alarm function:when arms are pushed by force illegally, alarm will be triggered automatically and arms will be set locked.

2 . Turnstile can check by itself when it is have problem, it is good for customer to maintain and use

3 . Turnstile can setting the working condition by press the button of main control board.

4 . Anti-pinch function: turnstile have Mechanical/ infrared induction Anti-pinch functions( when it is meet the hinder during the reset time, the electrical machine closed work automatically in specified time, the turnstile will default the delayed and reset again till reset succeed)

5 . The turnstile will closed the door when somebody enter the gate illegal, Tailgating or break into negative direction gate.

6 . Before received the open signal, the turnstile will lock automatically

7 . The arm have the collision avoidance function: when the turnstile arm closed, if it is under the collision, the arm will open to protect the Transmission of inner machine.

8 . Automatic Reset Functions: after you swap the card, during the specific time (the system is 10s), if you didn’t pass the turnstile, the system will cancel your authority automatically to pass the gate

9 . Infrared reset function (Optional:4 pairs or 6 pairs Infrared)

10 . The turnstile is bidirectional (pedestrian can enter and exit from one pair of turnstiles) 12. Can manager and long-range control the turnstile directly by managing the computer.
11 .Flashing light prompt function: it is convenient to find the turnstile problem by administrative staff

Classified into two kinds: single motor (suitable for single passageway and multiple passageway.)；Double motors (suitable for multiple passageways)

Appearance, Dimension, Material

Appearance: customized according to customer’s requirement.

       Material of the cabinet: 304 / 316 grade stainless steel.

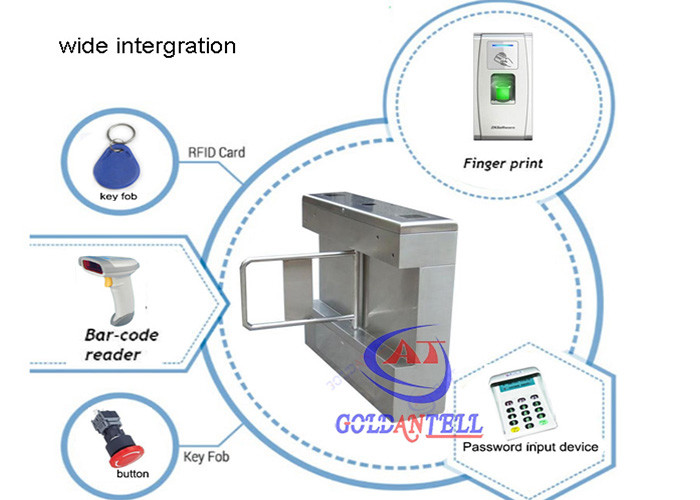

System Integration

Application Place

Subway Station, Hoverport,Tourism Sports,Exhibition, Swimming Hall,Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Charge Management,Special Access Control

Goldantell Competitive Advantage

We have more than 10 years powerful ODM/OEM ability,could make product shape design,custom logo,custom package.

2. We can do access control software according to your demand.

3. 3 years Guarantee,and during one year if the parts have any artifical damage ,we will send to you the

parts for free let you fix it .

4.Nice service and after sales service.

Project Showing
