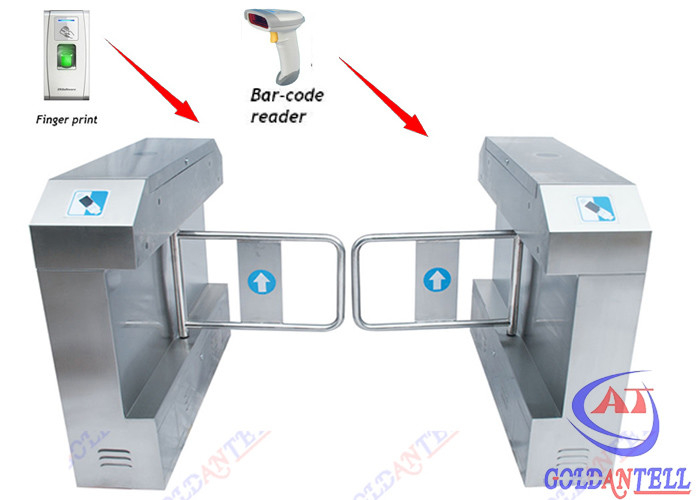

Electronic TCP / IP Swing Barrier Gate RFID Fingerprint Barcode Reader

Electronic TCP / IP Swing Barrier Gate RFID Fingerprint Barcode Reader

Technical parameters

1 Power:AC220C±10V,50HZ
2 Operating temperature:-15°C--75°C
3 Relative Humidity :≤95%, No Condensation
4 Arm length : 60-90cm
5 Passing Speed:30~40 persons/min(IC Card)
6 Motor :0.5NM/24V
7 Input Connection:+12V Level Signal or Pulse Wide>100ms DC12V
8 Communication Connection :RS485 Communication
9 :Material:SUS304,thickness is no less than 1.3mm

Functions

Our Turnstile can combine with different kinds of access readers,like: RFID Reader&Fingerprint Reader

&Coin Machine&Barcode System&ESD Tester Access Control(If you have access control system,you can

only purchase our turnstiles,if not, our side will install the access control system for you),except acess

system,also can use remote

Extendable functions(optional)

Counter (optional)

The length of the housing (length 1.2m, 1.4m, or 1.6m are optional)

The material of flap arm (organic glass, resin, PVC etc. optional)

The color of the flap arm (red, blue, yellow, colorless, etc.)

Features

1 . Problem-self-checking function.

2 . Many options of working ways: Bi-direction card reading; One direction card reading and another no

reading; One direction card reading and another freely. And single direction photocell controlled passing

and close. Working ways can be set in the control panel.

3 . When power off, arm open automatically and power on again, arm will be held automatically.

4 . When valid card read and passenger passed, arm can be delayed to close from 1-60s which can be set

in the control panel.

5 . Auto-reposition function: After card read, passenger not pass within regulated time period, full-height

turnstile will cancel this passing right. And the regulated time period for passing can be set by managers.

6 . If passenger pass without card read or valid card read, flap barrier will alarm untill passenger get back

from the flap barrier and then take a valid card to be read for passing.

7 . Anti-rush function: If there is no open single, arm will be holding tightly.

Access control system

Operation Place

Subway Station, Hoverport,Tourism Sports,Exhibition, Swimming Hall,Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Charge Management,Special Access Control

Package

Inside with a carton package.Then outside,there are 2 kinds of packages under your choice:crate package and closed wooden package.

About our company

Our Shenzhen Goldantell Technologies Co.,Ltd is a leading exporter and supply chain service provider of intelligent turnstile and parking management products with more than 9 years’ experience.

Our main products include intelligent turnstiles,parking barrier, RFID card,sentry box, wheel clamp and other related security access control system and parking system.

We do hope we can offer you more help in medical field and build the long term business relationship with you.

FAQ

1 Can you install RFID card reader on the turnstile?

Yes,except the RFID card reader system,we also can install fingerprint reader system,token system,esd

system,etc.

2 How about the guarantee and after sale service?

We have 12 month quality guarantee, We own well-trained and passional sales & after- sale services who

can speak fluent English language

3 How long is the leading time?

For standard item

10-50 sets:5 working days

50-100 sets:7-10 working days

200-500 sets:10-15 working days

For special item, or need custom design package or logo, need 3-10 working days longer

4 How about the payment terms?

TT,western union,L/C,our company already joined the trade assurance,it will highly protect your order

security.

5 How do you send the product to me,how long?

For sample,normaly send by air or express,about 3-5 days

For quantity purchase,normally by sea, it normally takes 7-60 days depend on different countries.

6 Can you do OEM service?

We offer below OEM services:

1) We can make custom design turnstile,or you tell me your requirements ,we can make a design for you.

2) Can print your logo on turnstiles, can customize the retail box packing and other things.
