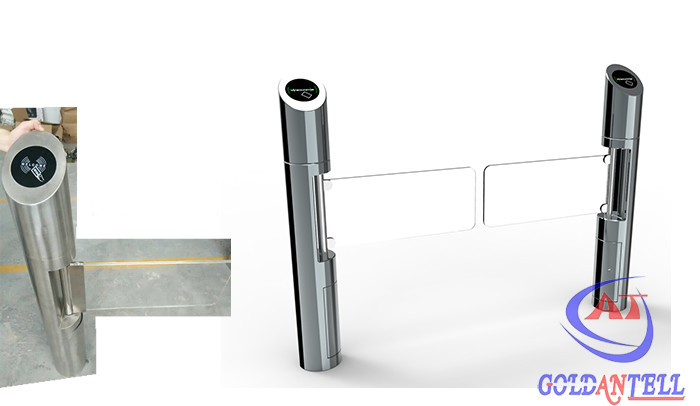

High - Class Glass Width 900 mm Swing Barrier Gate With Card Reader

Large Image : High - Class Glass Width 900 mm Swing Barrier Gate With Card Reader

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	Goldantell
Certification:	CE/ROHS/FCC/IS9001
Model Number:	GAT-611

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiation
Packaging Details:	Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time:	7 working days after received your payment
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	2,000pcs per month

Contact Now

Detailed Product Description

OEM:	OEM Arm Length,custom Logo,custom Size	Gross Weight:	50KG/set
Communication Port:	RS485 ,TCP/IP	Compatible:	RFID Reader&Fingerprint Reader ,Coin Access,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button
Size Of Product:	Height:1000(H) (MM); Diameter:168mm	Material:	304 Stainless Steel/316 Stainless Steel
Type:	Intelligent Swing Barrier Gate	Passage Width:	600~900mm
Net Weight:	45KG/set
Highlight:	swing gate turnstile , security swing gate

High - Class Glass Width 900 mm Swing Barrier Gate With Card Reader

Description:

High - Class Glass Width 900 mm Swing Barrier Gate With Card Reader 0

Standard Functions: Rectangular box and brake lever to be a passage,provide orderly passage to people. Prevent illegal in and out.Arms off in emergency case.
Application place: This item is widely suitable for high- level neighborhoods, intelligent buildings, hotel subway, port and club, etc.
System Integration: This equipment is subtly integrated with machine, electronics, micro- processor control and ID identification, provides convenience for the use of card reader identification equipment, such as IC card, ID card, bar code and fingerprint. It can carry out intelligent control and management to the passageway through choosing various identification equipment and adopting fair, reliable security protection, alarming equipment and direction indicating equipment.

Specifications:

Working voltage	AC220±10%V, 50±10%HZ
Size	Height:1000(H) (MM); diameter:168mm
Passage width	600~900mm
Swing arm angle	90 or 180 degree
Direction	single or bi-directional (optional)
Time of opening/closing	1 second
Control ways	Push button, RFID card, fingerprint recognition etc.
Pass speed	40 persons/min (open), 25-30 persons/min (closed)
Normal running life	3 million
Working environment	indoor/outdoor (with a tent over) -10℃～70℃
Driving motor	DC 24 V brush motor

Classification:

Vertical shape ( this item is the bridge shape ).
Bridge shape
Pillar shape
Single motor and Double motor:

single motor (suitable for single passageway and multiple passageway); Double motors (suitable for

multiple passageways)

Standard Function:

Automatic Reset Functions: after you swap the card, during the specific time (the system is 10s), if you didn’t pass the turnstile, the system will cancel your authority automatically to pass the gate, (reset time is 1~60s you can adjust it what time is suit for you). totally meet the fire protection needs.
Infrared reset function (Optional:4 pairs or 6 pairs Infrared).
Infrared induction clamp function (4 pairs Infrared).
Turnstile can setting the working condition by press the button of main control board.
Anti-pinch function: turnstile have Mechanical/ infrared induction Anti-pinch functions( when it is meet the hinder during the reset time, the electrical machine closed work automatically in specified time, the turnstile will default the delayed and reset again till reset succeed).
The turnstile can work with door access control system/ consumption system /biometric recognition system/ ESD system and so on.
The turnstile is bidirectional (pedestrian can enter and exit from one pair of turnstiles).
Can manager and long-range control the turnstile directly by managing the computer.
The arm have the collision avoidance function: when the turnstile arm closed, if it is under the collision, the arm will open to protect the Transmission of inner machine.

FAQ:

1-Can you do OEM service?
A: We offer below OEM services:
1) Can make customized design turnstile such as size,material,LED indicator shape or color,and so on. Even we can make a design according to your requirements
2) Can paint your logo on turnstiles, can customize the retail box packing and other things.
2-Can your turnstile work stable with different access control system,such as RFID card / fingerprint / QR code or Barcode / ESD test control system?

A: Of course,our intelligent turnstile is compatible with different access controller.Or, we can offer the access control software or system for best help.
3-How about the guarantee and after sale service?
A: We have 12 month quality guarantee, We own well-trained and passional sales & after- sale services who can speak fluent English language
4-How long is the leading time?
A: For standard item
10-50 sets:5 working days
50-100 sets:7-10 working days
200-500 sets:10-15 working days
For special item, or need custom design package or logo, need 3-10 working days longer
5-How about the payment terms?
A:TT,western union,L/C,our company already joined the trade assurance,it will highly protect your order security.
6-How do you send the product to me,how long?
A: For sample,normaly send by air or express,about 3-5 days
For quantity purchase,normally by sea, it normally takes 7-60 days depend on different countries.

Competitive Advantage:

All items have 24 month quality guarantee.
Custom design shape and logo ,for large amount, custom logo available for free.
Fast delivery.
Supported by professional engineers.
Special discount of our distributors or agents in their area.
Packing in standard export carton, suggest you pack it by wooden case to protect the products.
CE, ROSH available.

Application:

Public Places: Subway, Airports, Stations,Library, Bookstores, Parks, Exhibition halls, Stadium, Museums,Apartments,Residence Area, Offices,Commercial buildings.
Entertainment Places: Movie theaters, Fitness halls, Country clubs, Fairground, Clubs,Swimming Hall, Fitness Gym.
Business Organizations: Hotel,Factory,Bank,Prison,Hospital,School, Enterprise’s Entrance and Exit Attendance.
