Card / RFID Wristband Electronic Turnstile Door , pedestrian gate access control Custom

Card / RFID Wristband Electronic Turnstile Door , pedestrian gate access control Custom
Card / RFID Wristband Electronic Turnstile Door , pedestrian gate access control Custom Card / RFID Wristband Electronic Turnstile Door , pedestrian gate access control Custom Card / RFID Wristband Electronic Turnstile Door , pedestrian gate access control Custom

Large Image :  Card / RFID Wristband Electronic Turnstile Door , pedestrian gate access control Custom

Product Details:
Place of Origin: Guangdong,China
Brand Name: Goldantell
Certification: CE/ROHS/FCC/IS9001
Model Number: GAT-303
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time: 7 working days after received your payment
Payment Terms: T/T, Western Union, L/C,Paypal
Supply Ability: 2,000pcs per month
Detailed Product Description
Product Name: RFID Bracelet Tripod Turnstile Gate Net Weight: 65KG
Gross Weight: 70KG Material: 304 Stainless Steel / 316 Stainless Steel
Type: Manually , Semi Automatic , Full Automatic , Package Size: 1280mm* 380mm * 1080mm
Compatible: RFID Reader & Fingerprint Reader ,Coin Acess,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button Communication Port: RS485 ,TCP/IP
Warranty: 2 Years
Highlight:

tripod barrier

,

tripod barrier gate

Card / RFID Wristband Electronic Turnstile Door , pedestrian gate access control Custom




Product Introduction:



Traditional management mode requires a great deal of man power and material. Speed gate overcomes such



inefficiency and greatly ease off the work to manage high flow of human traffic. The flap barrier features great

ascetic looks, stainless finish and durable.



The tripod turnstile gate possesses superiority over the traditional management mode.


Whether on the control of rights of passenger, tolling, attendance or counting.





Specifications:

No. Parameters Values
1 product name tcp ip factory turnstile
2 model GAT-303
3 Material 304 stainless steel
4 work voltage AC220V±10% 50HZ±10%
5 Core DC24V solenoid valve
6 Size 1200*280*980mm
7 Arm length 500mm
8 Max bearing force 80KG
9 Max lane width 550MM
10 Rotation direction for arm left or right, or bi-directional
11 Card reading window standard or customized
12 Work environment indoor or outdoor, 10°C~70°C , relative humidity::≤90%, no condensation
13 Barrier open time 0.2s
14 Transit speed 30 people/minute
15 Emergency auto drop for arm
16 Normal work life 3,000,000 times
17 Communication interface RS 485, distance ≤1200m
18 Input interface relay switch signal, 12V level signal or 12V pulse signal, pulse width>100ms,drive current >10Ma







Application:


1. Public Places: Subway, Airports, Stations,Library, Bookstores, Parks, Exhibition halls, Stadium,
Museums,Apartments,Residence Area, Offices,Commercial buildings.
2. Business Organizations: Hotel,Factory,Bank,Prison,Hospital,School, Enterprise’s Entrance and Exit
Attendance.

3. Entertainment Places: Movie theaters, Fitness halls, Country clubs, Fairground, Clubs,Swimming Hall,
Fitness Gym.







Pictures:

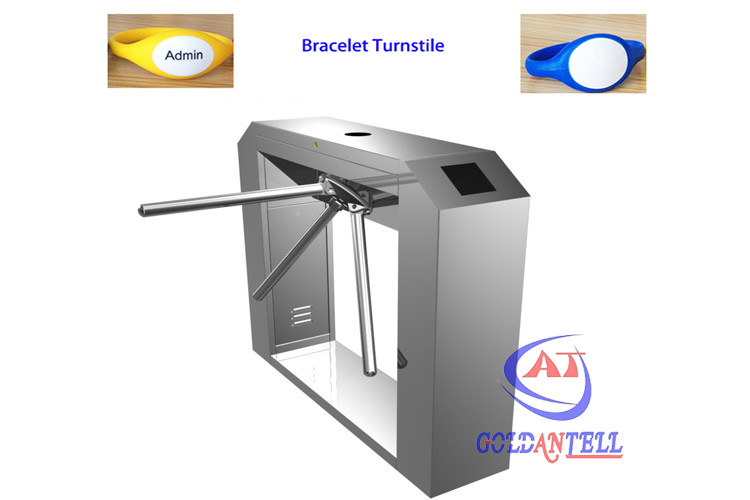

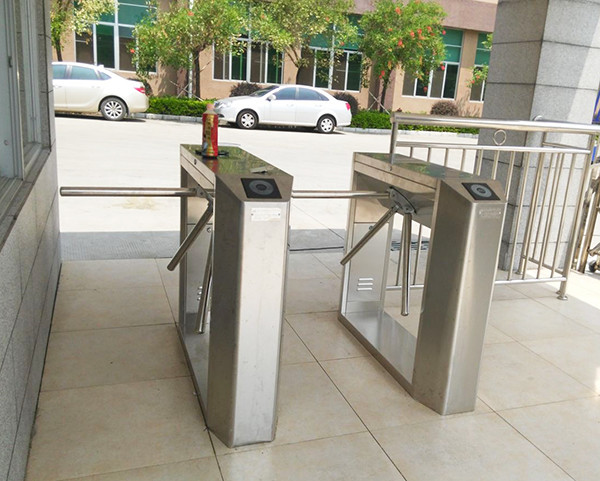

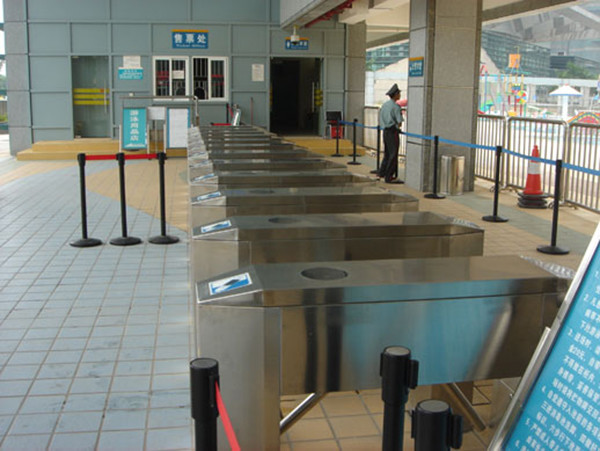

Card / RFID Wristband Electronic Turnstile Door , pedestrian gate access control Custom 0





Quality Guarantee:



Warranty Service will be honored if the damage is not caused by human, Goldatnell Provides 2 years warranty for relative products. On the contrary, Goldantell will not charge extra for delivery and spare part,only need you provide video to us. More information, please browse our service center.
