Home ProductsTripod Turnstile Gate

Conveniet Use Swimming Pool / Gym Tripod Turnstile Gate , Bracelet Reader

China SHENZHEN  GOLDANTELL TECHNOLOGY CO.,LIMITED certification
China SHENZHEN  GOLDANTELL TECHNOLOGY CO.,LIMITED certification
Good quality products, competitive price and high quality services. Worthy trust and recommending business partner.

—— Alex Wong in Philippines

Goldantell is a Gold supplier, save me a lot of time to do the purchasing! And always giving professional suggestion, help me a lot in business!

—— Asif Khan in Bahrain

Hi,Charlene,we've received the cargo!Our engineer tested the barriers,they all working very well!Now,I wanna make a new order!

—— Michael Fusco in USA

I'm Online Chat Now

Conveniet Use Swimming Pool / Gym Tripod Turnstile Gate , Bracelet Reader

Conveniet Use Swimming Pool / Gym Tripod Turnstile Gate , Bracelet Reader
Conveniet Use Swimming Pool / Gym Tripod Turnstile Gate , Bracelet Reader Conveniet Use Swimming Pool / Gym Tripod Turnstile Gate , Bracelet Reader

Large Image :  Conveniet Use Swimming Pool / Gym Tripod Turnstile Gate , Bracelet Reader

Product Details:
Place of Origin: Guangdong,China
Brand Name: Goldantell
Certification: CE/ROHS/FCC/IS9001
Model Number: GAT-302
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time: 7 working days after received your payment
Payment Terms: T/T, Western Union, L/C,Paypal
Supply Ability: 2,000pcs per month
Detailed Product Description
Product Name: RFID Bracelet Tripod Turnstile Gate Net Weight: 65KG
Gross Weight: 70KG Material: 304 Stainless Steel / 316 Stainless Steel
Type: Semi Automatic / Full Automatic Package Size: 1280mm* 380mm * 1080mm
Compatible: RFID Reader & Fingerprint Reader ,Coin Acess,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button Communication Port: RS485 ,TCP/IP
Warranty: 2 Years
Highlight:

tripod barrier

,

tripod barrier gate

Conveniet Use Swimming Pool / Gym Tripod Turnstile Gate , Bracelet Reader




Product Features:



1. The turnstile system can easily integrates with the 3rd party equipment, such as Biometric reader, consumption system, ESD system and access control system etc.

2. Operation model: Both directions can be set as controlled mode or free mode, two or one direction can be controlled by switch- button or access controller.

3. Multi-alarm function: when the arms are pushed by force illegally, alarm will be triggered automatically and the arms will be set locked (the duration of the alarm and lock is adjustable by changing parameter of main control board).

4. Reset automatically function: Go signal will be cancelled if passage through is not completed within pre- set time. The standard default is 10 seconds (time adjustable by by changing parameter of main control board).

5. Automatic-rotation function: once an open signal is given, the arms will rotate automatically.

6. Auto-drop-arm function: the arm can drop down automatically (default), or free passing when the power is off.

7. Auto-lift-arm function: when the power is on again, the arm can also lift automatically

8. Emergency-escape function: the arm will drop down automatically by pressing the emergency button which can be remote-controlled whether the power is on or not.

9. Anti backup function: to prevent reverse rotation once the mechanism has move 60 degree from home

10. Optional indication of Mulit LED

11. Optional indication of inside LED counter or outside LED counter

12. With interface of switch of relay, compatible with all the access controller

13. Equipped with free control software for man-machine interface & control command SDK.

14. Through the management computer to realize remote control and management.





Specifications:



Material 304 stainless steel Input voltage 220V AC220±10%
Size 1200x280x980mm Are length 510mm
Net weight 60kg/unit Arm diameter 38mm
Motor 24V DC brush Cooler fan Optional
Communication interface RS485 Thermostat Optional
Transit speed 30-40 people/minute Service life 5000,000 times
Close and open time 0.6S Input interface Relay signal, 12V level signal,
Clear passage width 550mm Work environment Indoor and outdoor (shelter)
Number of led lamp 1pcs






Application:


1. Public Places: Subway, Airports, Stations,Library, Bookstores, Parks, Exhibition halls, Stadium,
Museums,Apartments,Residence Area, Offices,Commercial buildings.
2. Business Organizations: Hotel,Factory,Bank,Prison,Hospital,School, Enterprise’s Entrance and Exit
Attendance.

3. Entertainment Places: Movie theaters, Fitness halls, Country clubs, Fairground, Clubs,Swimming Hall,
Fitness Gym.







Pictures:

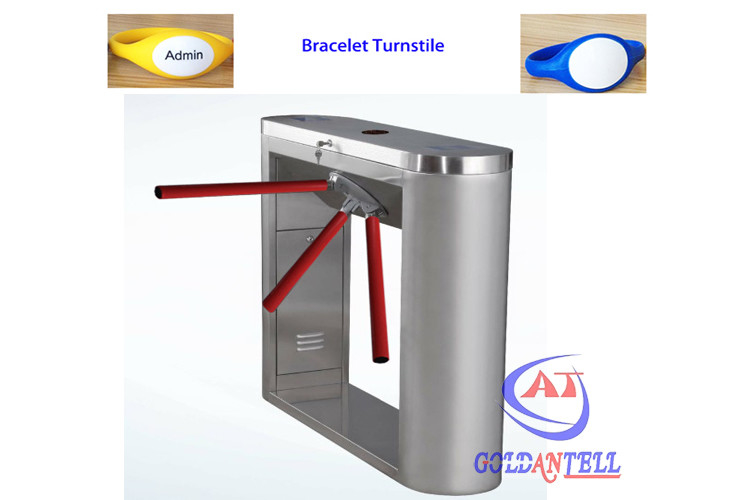

Conveniet Use Swimming Pool / Gym Tripod Turnstile Gate , Bracelet Reader 0

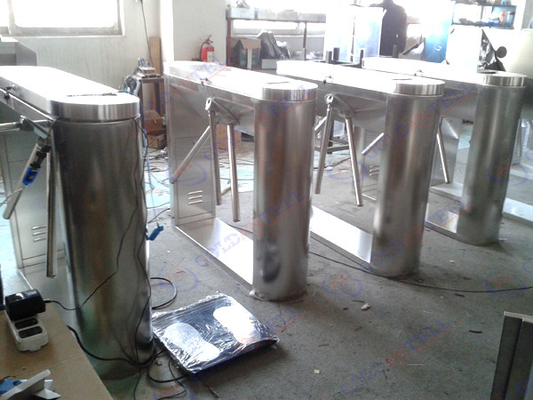

Conveniet Use Swimming Pool / Gym Tripod Turnstile Gate , Bracelet Reader 1
