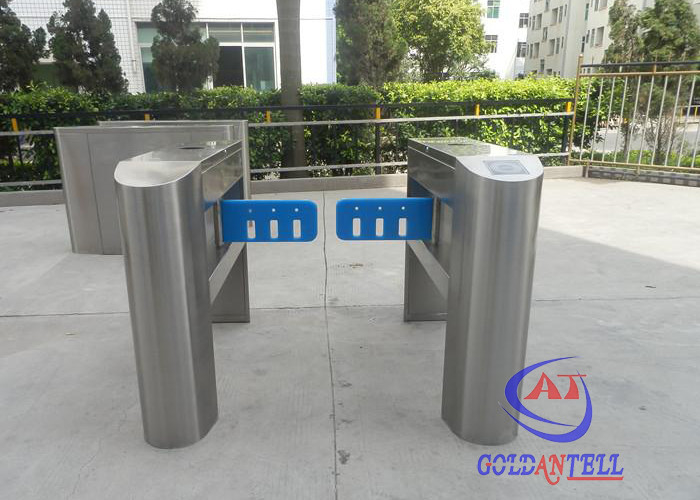

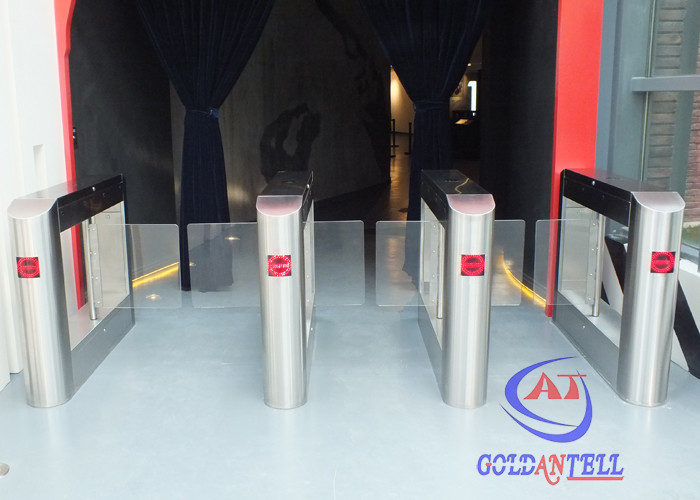

Waist height automatic Station Swing Gate Turnstile , Swing Gate Turnstile

Large Image : Waist height automatic Station Swing Gate Turnstile , Swing Gate Turnstile

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	Goldantell
Certification:	CE/ROHS/FCC/IS9001
Model Number:	GAT-206

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiation
Packaging Details:	Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time:	7 working days after received your payment
Payment Terms:	T/T ,western Union,LC,Paypal, L/C
Supply Ability:	2,000pcs per month

Contact Now

Detailed Product Description

Product Name:	Waist Height Automatic Swing Barrier Gate For Station Airports Hoverport	Motor:	DC24V Solenoid Valve
Material:	Domestic Standard 304# Stainless Steel	Size:	12002801000mm
Application:	Indoor Or Outdoor	Time Of Opening::	2s
OEM:	OEM Arm Length,custom Logo,custom Size	Working Voltage::	AC220±10%V 50±10%HZ
Highlight:	swing gate turnstile , waist high turnstiles

Waist height automatic Station Swing Gate Turnstile , Swing Gate Turnstile

Flap Barrier Gate Specifications:

Item	GAT-606-1( single motor ) GAT-606-2( double motors )
Working voltage:	AC220±10%V 50±10%HZ
Time of opening:	1 second
Compatible	RFID Reader&Fingerprint Reader ,Coin acess,QR code reader,Bar code System,ESD Tester Access Control, remote button
Pass speed:	40 persons/min (open), 25-30 persons/min (closed)
Reset time after break down:	10 seconds
Direction:	single or bi-directional (optional)
Input interface:	RFID Reader&Fingerprint Reader ,Coin acess,QR code reader, Bar code System,ESD Tester Access Control, remote button
Number of led lamp	1pcs or 3 pcs
Compatible	RFID Reader&Fingerprint Reader ,Coin acess,QR code reader,Bar code System,ESD Tester Access Control, remote button
Delivery way	Sample normally by air cargo or express,quantity purchase by sea

function:

1. The gate is Bidirectional, according the infrared sensing to enter and exit the passageways.
2. Turnstile can setting the working condition by press the button of main control board.
3. Anti-pinch function: turnstile have Mechanical/ infrared induction Anti-pinch functions( when it is meet the hinder during the reset time, the electrical machine closed work automatically in specified time, the turnstile will default the delayed and reset again till reset succeed)
4. The turnstile will lock when somebody enter the gate illegal, Tailgating or break into negative direction gate.
5. Before received the open signal, the turnstile will lock automatically
6. The arm have the collision avoidance function: when the turnstile arm closed, if it is under the collision, the arm will open to protect the Transmission of inner machine.
7. The turnstile is bidirectional (pedestrian can enter and exit from one pair of turnstiles)
8. Can manager and long-range control the turnstile directly by managing the computer.
9. Automatic Reset Functions: after you swap the card, during the specific time (the system is 10s), if you didn’t pass the turnstile, the system will cancel your authority automatically to pass the gate, (reset time is 1~60s you can adjust it what time is suit for you). totally meet the fire protection needs
10.The turnstile can work with door access control system/ consumption system /biometric recognition system/ ESD system and so on

Competitive Advantage:

More than 10 years powerful ODM/OEM ability,could make product shape design,custom logo,custom package.
we can provide not only product, but also system software management.Save your time and cost.
Friendly and professional customer service people help you in 16 hours.

application:

Entertainment Places	Movie theaters, Fitness halls, Country clubs, Fairground, Clubs, Swimming Hall,Fitness Gym
Public Places	Subway, Airports, Stations,Library, Bookstores, Parks, Exhibition halls, Stadiums, Museums,Apartments,Residence Area, Offices, Commercial buildings.
Business Organizations	Hotel,Factory,Bank,Prison,Hospital,School, Enterprise’s Entrance and Exit Attendance
