Product Details:
Payment & Shipping Terms:
|
Product Name: | Swimming Pool Turnsitle | Net Weight: | 65KG |
---|---|---|---|
Gross Weight: | 70KG | Material: | 304 Stainless Steel/316 Stainless Steel |
Type: | Semi Automatic/full Automatic | Package Size: | 1280mm (L) * 380mm (W) * 1080mm (H) |
Compatible: | RFID Reader&Fingerprint Reader ,Coin Acess,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button | Size Of Product: | 1200mm (L) * 280mm (W) * 1000mm (H) |
Communication Port: | RS485 ,TCP/IP | Acess Control System: | RFID / Fingerprint / ESD / Token , Etc |
Highlight: | tripod barrier,tripod barrier gate |

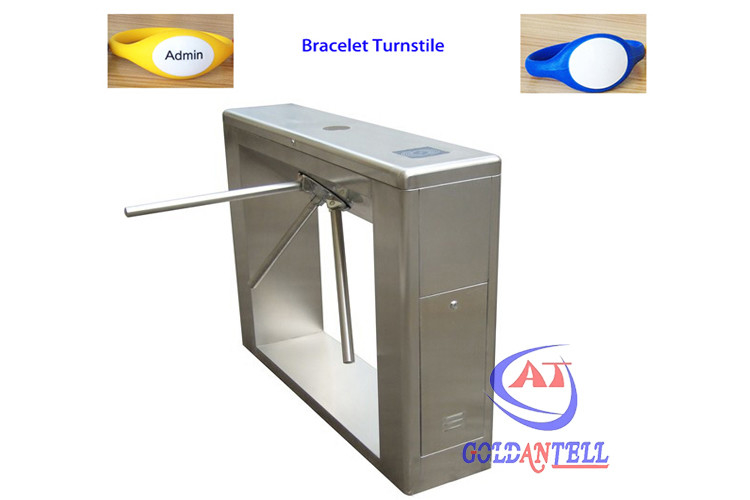

Waterproof Long Lifetime waist high turnstiles Operated By RFID Bracelet / Coin / RFID Card
Product description:

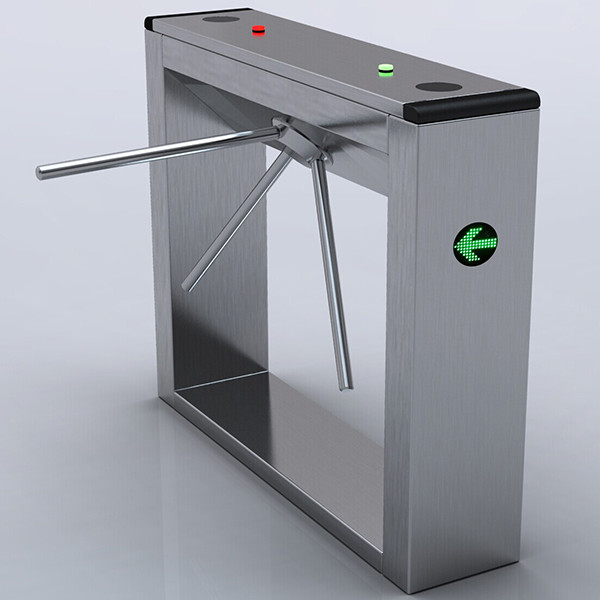

1. Fingerprint and RFID Semi automatic bi-direction tripod turnstile.
2. The housing of our tripod turnstile adopts SUS304 stainless steel materials; it is robust and durable design.
3. The standard electrical interfaces are flexible for integration with external systems;
4. They could be integrated with multiple devices like card and fingerprint readers.
5. Our tripod turnstiles can be used for access control, time attendance management applications and suitable for stations, wharfs, tourist attractions, exhibition and convention centers or special channel control for communities, factories, enterprises and public institutions etc.
6. Unified quality standards are implemented to ensure overall reliability, stability and fluency.
Specifications:
Item | RFID reader tripod turnstile |
Lane width | 550mm to 600mm |
Power supply | AC220±10%V 50Hz/AC110±10% 60Hz |
Power consumption | 40W |
Access device input voltage |
Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA |
Motor | No motor |
Max flow rate | 30 person per minute |
Arm length | 510mm |
Working temperature | -20°C~60°C |
Application:
1. Public Places: Subway, Airports, Stations,Library, Bookstores, Parks, Exhibition halls, Stadium,
Museums,Apartments,Residence Area, Offices,Commercial buildings.
2. Business Organizations: Hotel,Factory,Bank,Prison,Hospital,School, Enterprise’s Entrance and Exit
Attendance.
3. Entertainment Places: Movie theaters, Fitness halls, Country clubs, Fairground, Clubs,Swimming Hall,
Fitness Gym.
Main features:
Application:
