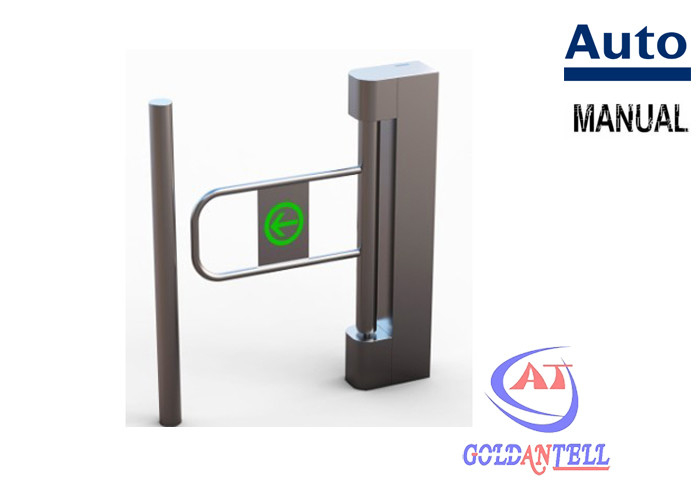

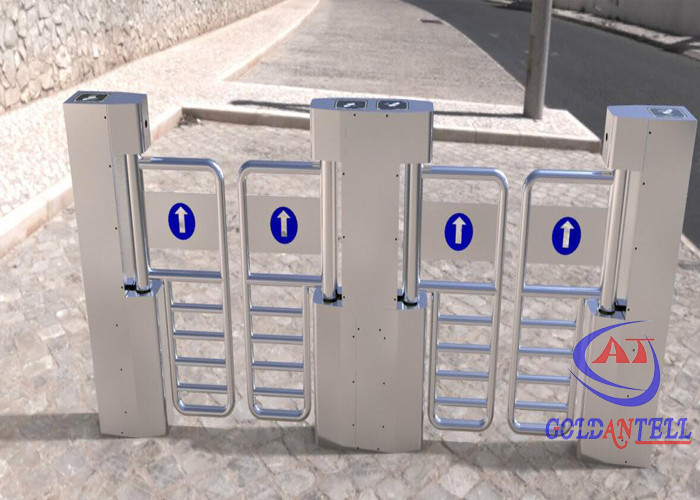

Pedestrian access swing barrier gate with biometric recognition system / ESD system

Large Image : Pedestrian access swing barrier gate with biometric recognition system / ESD system

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	Goldantell
Certification:	CE/ROHS/FCC/IS9001
Model Number:	GAT-627

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiation
Packaging Details:	Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time:	7 working days after received your payment
Payment Terms:	T/T ,western Union,LC,Paypal, L/C
Supply Ability:	2,000pcs per month

Contact Now

Detailed Product Description

Product Name:	Pedestrian Access Swing Barrier Gate With Biometric Recognition System / ESD System	Housing Material:	Domestic Standard 304# Stainless Steel
Compatible:	RFID Reader&Fingerprint Reader ,Coin Acess,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button	Time Of Opening/closing:	1 Second
Passage Width:	530-830mm	Communication Port:	RS485 ,TCP/IP
Application:	Indoor&outdoor	Time To Work After Power On:	3 Seconds
Reset Time After Break Down::	10 Seconds
Highlight:	swing gate turnstile , waist high turnstiles

pedestrian access swing barrier gate with biometric recognition system / ESD system
Specifications:

Item	GAT-627-1( single motor ) GAT-627-2( double motors )
Type	Half height swing turnstile
Working voltage:	AC220±10%V 50±10%HZ
Time of opening	1second
Passage width	530-830mm
Reset time after break down:	10 seconds
Transit speed	30-40 people/minute
Input interface:	RFID Reader&Fingerprint Reader ,Coin acess,QR code reader, Bar code System,ESD Tester Access Control, remote button
Communication interface	RS485/232
Direction:	single or bi-directional (optional)
Swing arm angle	180 degree
Warranty	1 years

Function:

1. The gate is Bidirectional, according the infrared sensing to enter and exit the passageways.

2. Turnstile can setting the working condition by press the button of main control board.

3. Anti-pinch function: turnstile have Mechanical/ infrared induction Anti-pinch functions( when it is meet the hinder during the reset time, the electrical machine closed work automatically in specified time, the turnstile will default the delayed and reset again till reset succeed)

4. The turnstile will lock when somebody enter the gate illegal, Tailgating or break into negative direction gate.

5. The turnstile is bidirectional (pedestrian can enter and exit from one pair of turnstiles)
6. Can manager and long-range control the turnstile directly by managing the computer5. Before received the open signal, the turnstile will lock automatically

7. The arm have the collision avoidance function: when the turnstile arm closed, if it is under the collision, the arm will open to protect the Transmission of inner machine.

8.The turnstile can work with door access control system/ consumption system /biometric recognition system/ ESD system and so on

9. Automatic Reset Functions: after you swap the card, during the specific time (the system is

10, if you didn’t pass the turnstile, the system will cancel your authority automatically to pass the gate, (reset time is 1~60s you can adjust it what time is suit for you). totally meet the fire protection needs

Control system:

RFID Reader&Fingerprint Reader ,Coin acess,QR code reader,Bar code System,ESD Tester Access Control, remote button

Application:

Supermarket
Subway Station, Bus Station
Tourism
Exhibition
Bank
Theater
Swimming Hall
Fitness Gym
Residence Area
supermarket

Competitive Advantage:

1.More than 10 years powerful ODM/OEM ability,could make product shape design,custom logo,custom package.
2. we can provide not only product, but also system software management.Save your time and cost.
3.Special service from Goldantell:
For repairing,no need you return back product,only need you take a video,our engineer will instruct you,if spare parts was damaged in 1 year,we will send you spare parts by fastest express,you no need bear any fee.
4.Friendly and professional customer service people help you in 16 hours.

Package:

Packed in carton firstly,and then reinforced with export wooden case for outer packing
