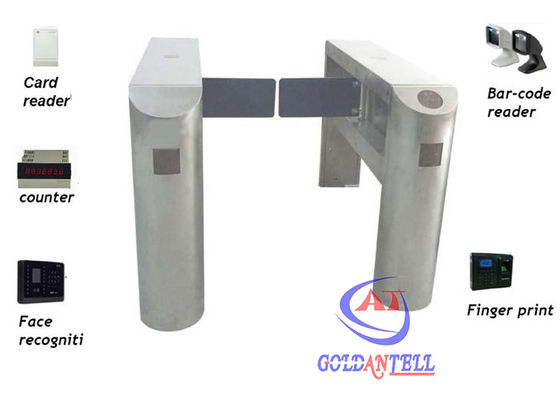

Single or bi-directional swing barrier gate for Residence Area and Tourism

  • Single or bi-directional swing barrier gate for Residence Area and Tourism
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE/ROHS/FCC/IS9001
Model Number GAT-617
Minimum Order Quantity 1pc
Price negotiation
Packaging Details Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time 7 working days after received your payment
Payment Terms T/T ,western Union,LC,Paypal, L/C
Supply Ability 2,000pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Single Or Bi-directional Swing Barrier Gate For Residence Area And Tourism Motor DC24V Solenoid Valve
Housing Material Domestic Standard 304# Stainless Steel Certification CE/ROHS/FCC/SGS/IS9001
Compatible RFID Reader&Fingerprint Reader ,Coin Acess,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button Time Of Opening/closing 1 Second
Passage Width 530-830mm Pass Speed 40 Persons/min (open), 25-30 Persons/min (closed)
Time To Work After Power On 3 Seconds Reset Time After Break Down 10 Seconds
Highlight

security swing gate

,

waist high turnstiles
Leave a Message
Product Description

Reset time after break down:

Single or bi-directional swing barrier gate for Residence Area and Tourism



 Specifications:




Item


GAT-601-1( single motor )
GAT-601-2( double motors )



Working voltage:



AC220±10%V 50±10%HZ


Time of opening



1second



Time to work after power on







3 seconds



Reset time after break down:







10 seconds


Passage width





 530-830mm


Reset time after break down:



10 seconds


Direction:



single or bi-directional (optional)


Transit speed



30-40 people/minute


Input interface:



RFID Reader&Fingerprint Reader ,Coin acess,QR code reader,
Bar code System,ESD Tester Access Control, remote button



Communication interface



RS485/232


Support



operating video& Instruction will be sent to clients to help them better use the machines



Swing arm angle





180 degree





Competitive Advantage



1.More than 10 years powerful ODM/OEM ability,could make product shape design,custom logo,custom package.

2. we can provide not only product, but also system software management.Save your time and cost.

3.Special service from Goldantell:

For repairing,no need you return back product,only need you take a video,our engineer will instruct you,if spare parts was damaged in 1 year,we will send you spare parts by fastest express,you no need bear any fee.

4.Friendly and professional customer service people help you in 16 hours.





 Function:



1. The gate is Bidirectional, according the infrared sensing to enter and exit the passageways.

2. Turnstile can setting the working condition by press the button of main control board.

3. Anti-pinch function: turnstile have Mechanical/ infrared induction Anti-pinch functions( when it is meet the hinder during the reset time, the electrical machine closed work automatically in specified time, the turnstile will default the delayed and reset again till reset succeed)

4. The turnstile will lock when somebody enter the gate illegal, Tailgating or break into negative direction gate.

5. Before received the open signal, the turnstile will lock automatically

6. The arm have the collision avoidance function: when the turnstile arm closed, if it is under the collision, the arm will open to protect the Transmission of inner machine.

7. Automatic Reset Functions: after you swap the card, during the specific time (the system is 10s), if you didn’t pass the turnstile, the system will cancel your authority automatically to pass the gate, (reset time is 1~60s you can adjust it what time is suit for you). totally meet the fire protection needs

8.The turnstile can work with door access control system/ consumption system /biometric recognition system/ ESD system and so on

9. The turnstile is bidirectional (pedestrian can enter and exit from one pair of turnstiles)

10. Can manager and long-range control the turnstile directly by managing the computer.

11.LED counting function
12.Box house can lengthen, swing arm lengthen
13.Infrared logical judgment function (you can choose 8 pairs or 10 pairs Infrared)
 Voice Prompt Function
14. Normally open or closed can be adjust to meet the requirements of the different place.
Sound and light alarm prompt functions
15.Stroboscopic lamp prompt function: site administrator can find the turnstile problem quickly and accurately


Application:



  • Supermarket
  • Subway Station, Bus Station
  • ,Airports, Hoverport
  • Tourism
  • Exhibition,Hotel
  • Bank
  • ,Library,Theater
  • Swimming Hall,Fitness Gym
  • Residence Area
  • Enterprise’s Entrance and Exit Attendance



Direction Indicator:



The installation position of direction indicator can be adjusted.

The pattern of direction indicator can be customized
