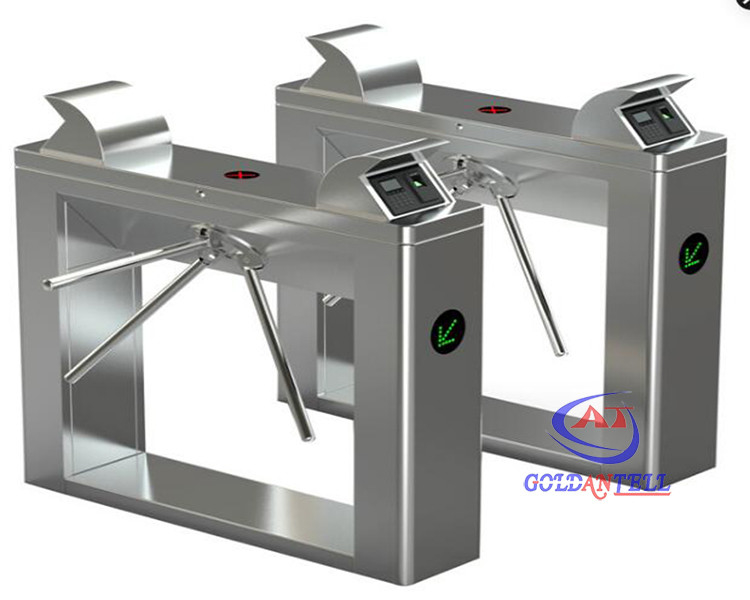

Biometrics turnstyle gates , tripod Half Height Turnstiles Access Control System

Biometrics turnstyle gates , tripod Half Height Turnstiles Access Control System
Biometrics turnstyle gates , tripod Half Height Turnstiles Access Control System Biometrics turnstyle gates , tripod Half Height Turnstiles Access Control System

Large Image :  Biometrics turnstyle gates , tripod Half Height Turnstiles Access Control System

Product Details:
Place of Origin: Guangdong,China
Brand Name: Goldantell
Certification: CE/ROHS/FCC/IS9001
Model Number: GAT-301
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time: 7 working days after received your payment
Payment Terms: T/T, Western Union, L/C,Paypal
Supply Ability: 2,000pcs per month
Detailed Product Description
Application: Pulic Toilelt, Park, Office Building, Club, Etc. Net Weight: 65KG
Gross Weight: 70KG Product Name: Biometrics Fingerprint Access Control Turnstile Gate
Material: 304 Stainless Steel/316 Stainless Steel Type: Semi Automatic/full Automatic
Package Size: 1280mm (L) * 380mm (W) * 1080mm (H) Compatible: RFID Reader&Fingerprint Reader ,Coin Acess,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button
Size Of Product: 1200mm (L) * 280mm (W) * 1000mm (H) Communication Port: RS485 ,TCP/IP
Highlight:

turnstile security gates

,

pedestrian security gates

Biometrics turnstyle gates , turnstile tripod With Fingerprint Access Control System


Specifications:


Technical Parameters

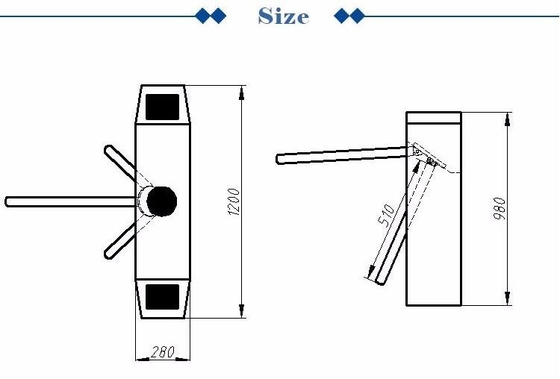

Size

1200 mm (L) * 280 mm (W) * 1000 mm (H)

Working voltage AC220±10%V 50±10%HZ
Arm width: 510 mm
Support force of arm: 60 kg
Passage width:

≤600 mm

Time of opening: 0.2 second
Pass speed: 30 persons/min
Emergence:

When power off, arm open automatically

Normal running life: 3 million
LED light: direction arrow
Direction:

single or bi-directional (optional)

Working environment:

indoor/outdoor (with a tent over)       -10℃~70℃

Relative humidity: ≤90% coagulation free
Communication interface:

standard RS 485 interface, distance ≤1200m

Housing material

domestic standard 304#  stainless steel

Working movement DC 24V solenoid valve
Input interface:

+12V level signal or pulse width>100 ms

12V pulse, drive current>10 mA



Feature & function:

1. Auto replacement function, reposition after person pass by

2. Anti tail function auto-lock once turn 120° .

3. Arms auto drop when power off , insure unblocked when accident

4. Standard electronic interface, remote control through internet which is also could connect variety card readers and receive relay signal to work

5. Diverse control mode optional, changeable due to varying, convenient for your manage

6. Auto alert error function, comfort for user maintain and operate

7. Manual button or remote control ,Bio-directional passage

8. Open signal with memory or with out set function

9. Red and green light to show pass or stop, leisure to exit and entrance




Application:

1. Entertainment Places: Movie theaters, Fitness halls, Country clubs, Fairground, Clubs,Swimming Hall,
Fitness Gym.
2. Public Places: Subway, Airports, Stations,Library, Bookstores, Parks, Exhibition halls, Stadium,
Museums,Apartments,Residence Area, Offices,Commercial buildings.
3. Business Organizations: Hotel,Factory,Bank,Prison,Hospital,School, Enterprise’s Entrance and Exit
Attendance.





Competitive Advantage:

1. More than 10 years powerful ODM/OEM ability,could make product shape design,custom logo,custom
package.
2. Friendly and professional customer service people help you in 16 hours.
3. We can provide not only product, but also system software management.Save your time and cost.
4. Special service from Goldantell:
For repairing,no need you return back product,only need you take a video,our engineer will instruct you,if
spare parts was damaged in 1 year,we will send you spare parts by fastest express,you no need bear
any fee.
