Shenzhen Goldantell Technology Co.,Limited
Quality is our culture!
|
Product Details:
Payment & Shipping Terms:
|
| Product Name: | Tripiod Turnstile | Size: | 1200mm (L) * 280mm (W) * 980mm (H) |
|---|---|---|---|
| Material: | 304 Stainless Steel | LED Light: | Direction Arrow |
| Power Supply: | AC220±10%V 50±10%HZ | Compatible: | -10℃～70℃ |
| Arm Width: | 510 Mm | Passage Width: | 550--600 Mm |
| High Light: | pedestrian security gates,stainless steel turnstiles |
||

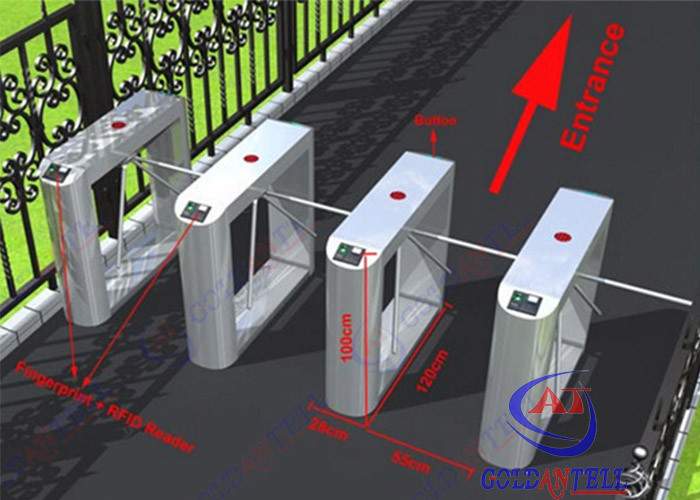

Office Building Access Control electronic Tripod Turnstile Gate With RFID Fingerprint Reader
Technical parameters
| Housing material | domestic standard 304# stainless steel |
| Working voltag | AC220±10%V 50±10%HZ |
| Size | 1200mm (L) * 280mm (W) * 980mm (H) |
| Arm width | 510 mm |
| Passage width | ≤600 mm |
| Communication interfac | standard RS485 interface, distance ≤1200m |
| Direction | single or bi-directional (optional) |
| Time of opening | 0.2 second |
| Pass speed | 30 persons/min |
| Input interfac |
+12V level signal or pulse width>100ms 12V pulse, drive current>10mA |
System Integration
This equipment is intergrated with mechanism,electric and micro-controller and various kinds of identification technologies,compatible with IC,ID,barcode,fingerprint reader and so on ,to provide intelligent control and management to flow control.
The feature of turnstile barrier
1 . Running stablely without noise and mechanical impact
2 . The passing person number of the persons can be set
3 . Several ways of working molds for your demand chosen
4 . Beam falling and lifting can be controlled in far distance so to satisfy the special requirement of the users and the request of fire protection.
5 . The electrical interface connected with various kinds of reader and writer equipment
6 . Direction-guide lights in the turnstile to tell you whether the direction to go or not
7 . All the functions realized in one integration machine and controlled and managed by the computer in the far distance
8 . Bi-direction, or one direction permitted, one forbidden, or one direction charged, one for free, and all the working molds set by the buttons in the main control board
9 . The number of the persons passed by can be counted automatically which can also be displayed in LED
10 . Beam can be lifted and fall when power is cut-off
11 . The function with or without card-reading memory cab be set according to your demand
Application
Subway Station, Hoverport,Tourism Sports,Exhibition, Swimming Hall,Residence
Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Charge Management,Special
Access Control
The package of turnstile barrier
1 . Inside with a carton package.
2 . Outside,there are 2 kinds of packages for your choice:
crate package and closed wooden package
