Product Details:
Payment & Shipping Terms:
|
| Product Name: | Tripiod Turnstile | Size: | 1200mm (L) * 280mm (W) * 980mm (H) |
|---|---|---|---|
| Material: | Domestic Standard 304# Stainless Steel | Working Environment: | When Power Off, Arm Open Automatically |
| Power Supply: | AC220±10%V 50±10%HZ | Compatible: | -10℃～70℃ |
| Pass Speed: | 30 Persons/min | Passage Width: | ≤600 Mm |
| High Light: | turnstile security gates,pedestrian security gates |
||

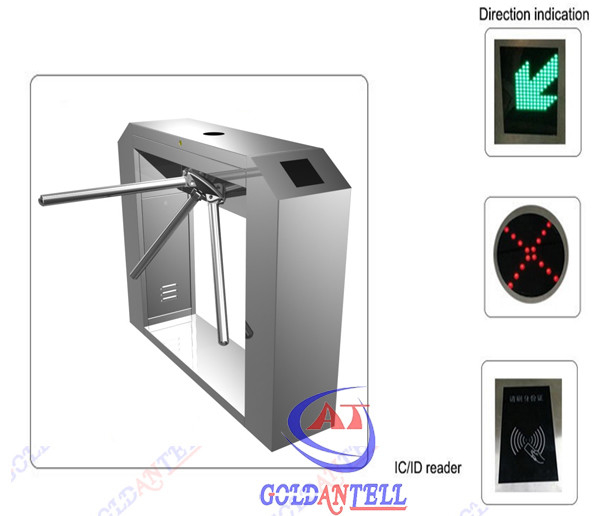

Access Control tripod access system , turnstile entrance With Fingerprint Barcode Reader
Technical parameters
1 . Housing material: domestic standard 304# stainless steel
2 . Working voltage:AC220±10%V 50±10%HZ
3 . Working movement :DC24V solenoid valve
4 . Size:120cm (L) * 28cm (W) * 98cm (H)
5 . Arm width:51 cm Passage width:≤60 cm
6 . Direction: single or bi-directional (optional)
7 .Pass speed: 30 persons/min
8 . Emergence:When power off, arm open automatically
9 . Communication interface: standard RS485 interface, distance ≤1200m
10 . Input interface: +12V level signal or pulse width>100ms 12V pulse, drive current>10mA
System Integration
Integrate with visitor management system.
Integrate with ticketing system.
Integrate with access control system required by customers, and built-in reader appointed by customer.
The feature of turnstile barrier
The Tripod Turnstiles are very robust products able to function inside and outside buildings.
The Tripod Turnstile is a waist-height tripod turnstile in a self-supporting housing (2 Feet).
The Tripod Turnstile with dropping arm to free the walkway in the event of an emergency or for certain applications
1.Security
. Active arm can drop clear (emergency or application)
Arms cannot be removed without special tools
. Mechanism cannot be forced
2.Economic
. Inactive arms do not hinder the passage
. Simple to install
3.Flexibility
. Removable end covers for easy integration of any type of access control device
. Numerous configurations covering all cases of pedestrian access control
The Body Size
Application
Subway Station, Hoverport,Tourism Sports,Exhibition, Swimming Hall,Residence
Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Charge Management,Special
Access Control
The package of turnstile barrier
1 . Inside with a carton package.
2 . Outside,there are 2 kinds of packages for your choice:
crate package and closed wooden package
