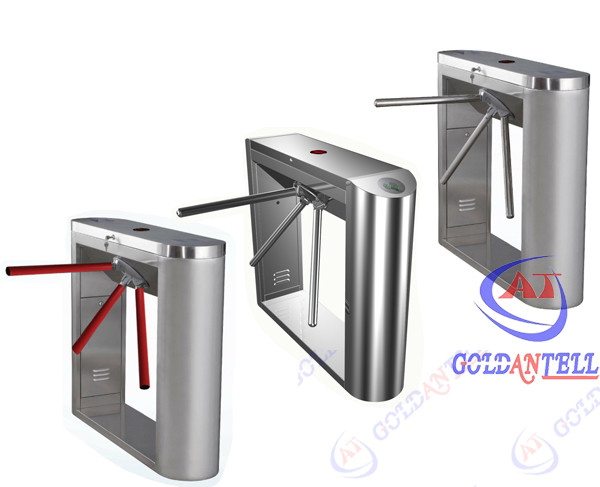

RFID Ticketing System Electronic Tripod Turnstile Gate For Tourist CE Approved

  • RFID Ticketing System Electronic Tripod Turnstile Gate For Tourist CE Approved
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE/ROHS/FCC/SGS/IS9001
Model Number GAT-302
Minimum Order Quantity 1pc
Price negotiation
Packaging Details Inside carton outside wooden case or crate Package
Delivery Time 7 working days after received your payment
Payment Terms T/T ,western Union,LC,Paypal
Supply Ability 2,000pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Tripiod Turnstile Size 1200mm (L) * 280mm (W) * 980mm (H)
Material Standared 304 Stainless Steel Working Environment When Power Off, Arm Open Automatically
Power Supply AC220±10%V 50±10%HZ Compatible Indoor/outdoor (with A Tent Over) -10℃～70℃
Pass Speed 30 Persons/min Passage Width ≤600 Mm
Highlight

tripod barrier

,

tripod barrier gate
Leave a Message
Product Description



RFID Ticketing System Electronic Tripod Turnstile Gate For Tourist

CE Approved



Technical parameters

1 .  Housing material: domestic standard 304# stainless steel

2 . Working voltage:AC220±10%V 50±10%HZ

3 . Working movement :DC24V solenoid valve

4 . Size:1200mm (L) * 280mm (W) * 980mm (H)

5 . Arm width:510 mm  Passage width:≤600 mm

6 . Direction: single or bi-directional (optional)

7 . Normal running life: 3 million

8 .Pass speed: 30 persons/min

9 . Emergence:When power off, arm open automatically

10 . Communication interface: standard RS485 interface, distance ≤1200m

11 . Input interface: +12V level signal or pulse width>100ms 12V pulse, drive current>10mA



RFID Ticketing System Electronic Tripod Turnstile Gate For Tourist CE Approved 0



System Integration

Integrate with visitor management system.

Integrate with ticketing system.

Integrate with access control system required by customers, and built-in reader appointed by customer.



RFID Ticketing System Electronic Tripod Turnstile Gate For Tourist CE Approved 1



The feature of turnstile barrier

The Tripod Turnstiles are very robust products able to function inside and outside buildings.

The Tripod Turnstile is a waist-height tripod turnstile in a self-supporting housing (2 Feet).

The Tripod Turnstile with dropping arm to free the walkway in the event of an emergency or for certain applications

1.Security

. Active arm can drop clear (emergency or application)

Arms cannot be removed without special tools

. Mechanism cannot be forced

2.Economic

. Inactive arms do not hinder the passage

. Simple to install

3.Flexibility

. Removable end covers for easy integration of any type of access control device

. Numerous configurations covering all cases of pedestrian access control



Application

Subway Station, Hoverport,Tourism Sports,Exhibition, Swimming Hall,Residence

Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Charge Management,Special

Access Control



The package of turnstile barrier

1 . Inside with a carton package.

2 . Outside,there are 2 kinds of packages for your choice:

crate package and closed wooden package
