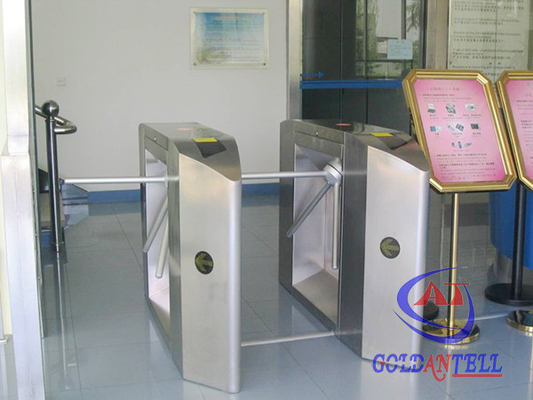

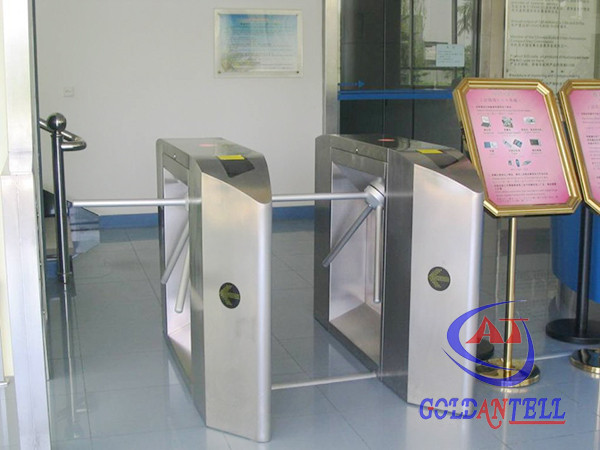

Bus Station Entrance Turnstile Security Gates / Factory Automatic Turnstiles
Entrance Tripod Turnstile Description:
Mechanical drive unit with solenoid locking mechanism eliminate the use of expensive electric motor and reduce maintenance cost.
● If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will auto-rotate back to the current idle position.
● Built in adjustable tensioner to control rotation force to minimize over rotation. Arm just need to be pushed lightly to rotate therefore even elderly or children are able to use the turnstile.
● Turnstile can be configured to be bi-directional or uni-directional. Housing is locked with special key to avoid tampering.
●When power off, the arm will be dropped down (optional set free passage when power off) to the request of fire protection.
When power on, the arm can lift by hand.
● Emergency configuration: the tripod will drop automatically by power off to provide a clear walkway for escape in the event of an emergency
● Control panel with count and LED digital function. Traffic-light: A Red Cross symbol will illuminate to indicate the unit is not available for pass, and a green arrow indicate the direction of allowable passing
● It can be used for intelligent control and management of the passage after equipped with diffent access control system.
●A valid lock action can allow one passage at one time. It will lock automatically if passage through turnstile is not completed within pre-set time, the set time(from 2-60 seconds, by default, it is 10 seconds) can be set up with the built-in small keyboard or software.
Entrance Tripod Turnstile Specifications:
| Overall Dimension |
420×380×1000 mm |
| Weight |
55kg |
| Tripod Arm Length |
≤500mm |
| Housing Material |
SUS(304#),thickness is no less than 1.5mm |
| Working Voltage |
AC220V±10%,50HZ±10% |
| Drive Motor |
DC brushed motors(12V) |
| Passage Width |
≤600mm |
| MCBF |
3,000,000 cycle |
| Communication Interface |
TCP/IP |
| Passing Speed |
30~50 people/min |
| Readable Cards |
IC/ID card |
| Operating Time |
1s |
| Protection Grade |
IP54 |
| Working Environment |
Indoor; Outdoor (with shelter) |
| Working Temperature |
-40°C~60°C |
| Relative Humility |
≤95%, no-condensation |
| Operating Places |
Government agency, Subway station, Residential area, School, Enterprise,
Factory, etc.
|
Entrance Tripod Turnstile Features:
The Tripod Turnstiles are very robust products able to function inside and outside buildings.
The Tripod Turnstile is a waist-height tripod turnstile in a self-supporting housing (2 Feet).
The Tripod Turnstile with dropping arm to free the walkway in the event of an emergency or for certain applications
1.Security
. Active arm can drop clear (emergency or application)
Arms cannot be removed without special tools
. Mechanism cannot be forced
2.Economic
. Inactive arms do not hinder the passage
. Simple to install
3.Flexibility
. Removable end covers for easy integration of any type of access control device
. Numerous configurations covering all cases of pedestrian access control

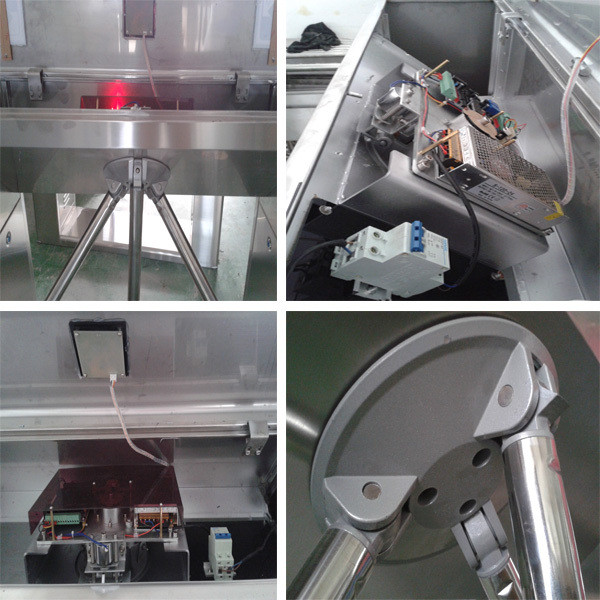

Tripod Turnstile Gate With Counter Picture:
