Product Details:
Payment & Shipping Terms:
|
Product Name: | Fingerprint Reader Tripod Turnstile | Application Place: | Gym , Amusement Park , Stadium , Pulic Area , Office Building , Club, Etc |
---|---|---|---|
Gross Weight: | 70KG | Material: | 304 Stainless Steel |
Size Of Product: | 1200mm (L) * 280mm (W) * 980mm (H) | Package Size: | 1280mm (L) * 360mm (W) * 1070mm (H) |
Compatible: | RFID Reader & Fingerprint Reader , Coin Acess , QR Code Reader,Bar Code System ,ESD Tester Access Contro L, Remote Button | Communication Port: | RS485 ,TCP/IP |
Production Time: | 7 Working Days | ||
Highlight: | tripod access system,tripod barrier gate |
Fingerprint Reader Tripod Turnstile Gate 110V 220V 30 Person / Minute
Fingerprint Reader Tripod Turnstile Specifications:
Overall dimension | 120*28*100cm |
Weight | 65kg |
Tripod arm length | ≤50cm |
Housing material | SUS(304#),thickness is no less than 1.5mm |
Working voltage | AC220V±10%,50HZ±10% |
Drive motor | DC brushed motors(24V) |
Passage width | ≤600mm |
MCBF | 3,000,000 cycle |
Communication interface | RS485, TCP/IP etc.. |
Passing speed | 30~40 people/min |
Readable cards | IC/ID card |
Operating time | 1s |
Protection grade | IP54 |
Working environment | Indoor; Outdoor (with shelter) |
Working temperature | -40°C~60°C |
Relative humility | ≤95%, no-condensation |
Operating places | airport, bus station, office building, scenic spot, community, attractions, and exhibition hall doors, residential, Construction Sites, Industrial Plants etc... |
Description:
(1) Running stably without noise and mechanical impact.
(2) The passing person number of the persons can be set.
(3) Bidirection or one direction permitted, one forbidden, or one direction charged,
one for free, and all the working molds set by the buttons in the main control board.
(4) Direction-guide lights in the turnstile to tell you whether the direction to go or not.

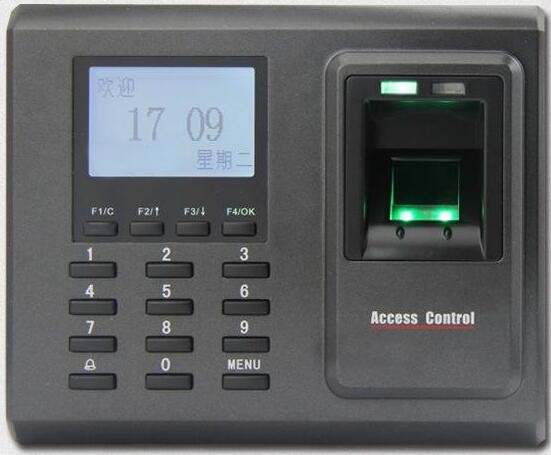

(5) Standard Interface. work with ID / IC. UHF. Fingerprint Readers
(6) Beam can be lifted and fall when power is cut-off.
(7) Self-check and alarm for convenient to operate.
Applications:
● Tripod Turnstile is an electro mechanical turnstiles. Its unique mechanical drive design allow the arm to
be pushed effortlessly and auto-rotate back without any expensive electric motor
●Tripod Turnstile can effectively control high volume human traffic ( up to 25 person per minutes ) while
still maintaining a welcoming atmosphere. They can easily be integrated with any electronic system for
ticketing, access control or time attendance.
●Tripod Turnstile is suitable for both indoor and outdoor(Shed). They are optimized economical solution
for railway, bus station, factory, colleges, commercial building, library, stadium, game park, hotel, super
market, bank and etc.
Turnstile accessories:
● Turnstile Mechanism (semi-auto)
● Turnstile housing (304# Stainless steel at 1.5MM)
● Turnstile Control Board
● Turnstile Supply
● Turnstile Traffic Indicator(double direction)
● Turnstile Passage Status Lights
Communication with customers:
1 - Does the turnstile come with a RS485 PC software?
The turnstile itself doesn’t come with a RS485 PC software,you need purchase the RS485 door access
control and card reader.But we suggest you purchase TCP/IP door access control and card
reader.Because it doesn’t need converter,and use internet cable it can directly communicate with a
computer.Compare with RS485 door access control,It is more convenient and transfer speed much faster.
2- Can I communicate the turnstile direct with a PC?
No,you can’t communicate the turnstile directly with a pc,because the main board just out put low level
signal,but pc can not receive low level signal,so the turnstile must connect a door access control then can
connect with a pc.
3 - They come with the complete command manual (if we want to develop our own software)?
For normal passage control,we have compete command manual for you.,Many clients from different
countries use our software,don’t need second develop.If your company has the ability to develop your
own software, we can provide SDK to you.
4- can I use just one access control control 2 pcs turnstile?
You can use one one access control for double doors to control 2pcs turnstile,but the 2 turnstiles must be
very close,because if the distant is far,first,it will not convenient to set up the cable,second the single will
be less then can influence the whole facility.So,for 2 doors,we suggest you use 2 access control.
Applications:
The tripod turnstiles can be used in places such as restaurants, hotels, office buildings, museums, gyms,
clubs, metros, bus stations, high class communities, intelligent buildings, hotels, subway stations and
other high level venues, ect.

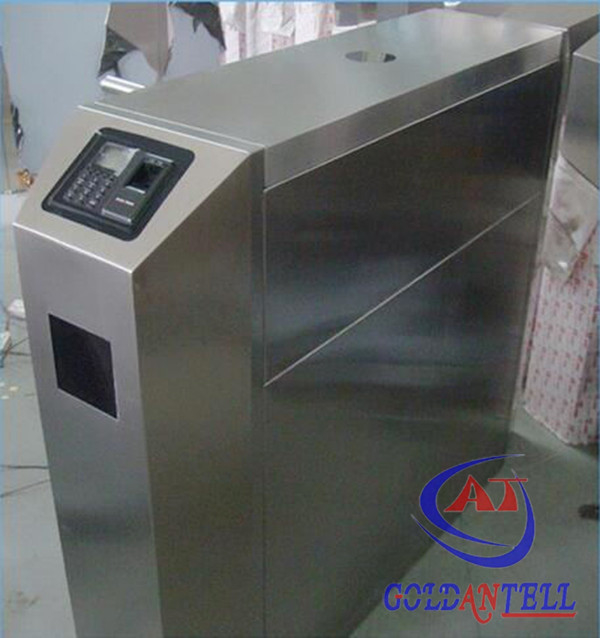

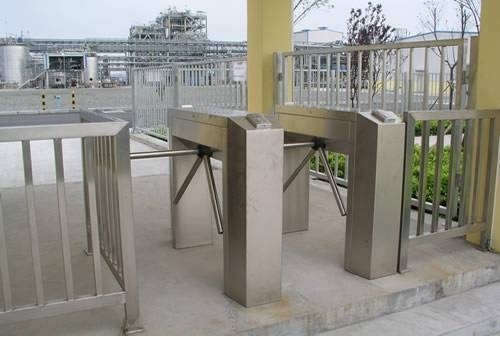

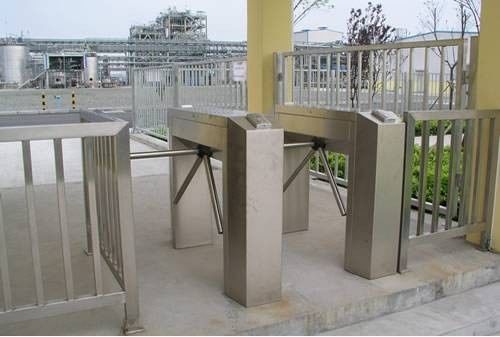

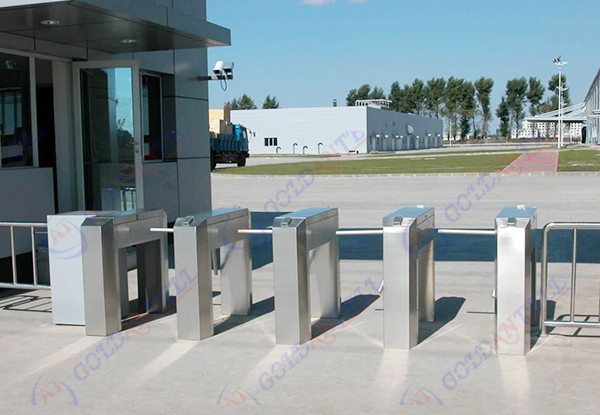

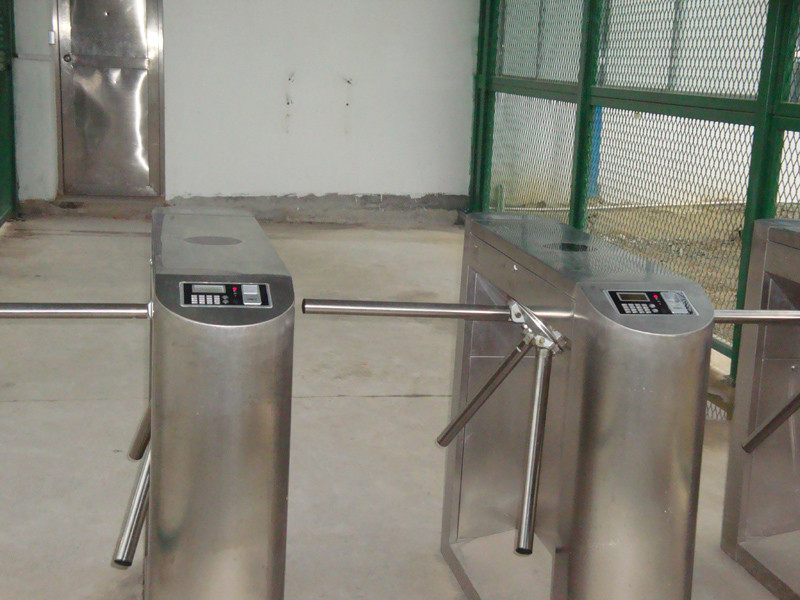

Fingerprint Reader Tripod Turnstile Picture:
