Passage Gym Train Station Turnstile Door Multi Acess Acceptable

Passage Gym Train Station Turnstile Door Multi Acess Acceptable
Passage Gym Train Station Turnstile Door Multi Acess Acceptable Passage Gym Train Station Turnstile Door Multi Acess Acceptable Passage Gym Train Station Turnstile Door Multi Acess Acceptable

Large Image :  Passage Gym Train Station Turnstile Door Multi Acess Acceptable

Product Details:
Place of Origin: Guangdong,China
Brand Name: Goldantell
Certification: CE/ROHS/FCC/IS9001
Model Number: GAT-301
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time: 7 working days after received your payment
Payment Terms: T/T, Western Union, L/C,Paypal
Supply Ability: 2,000pcs per month
Detailed Product Description
Product Name: Tripod Turnstile For Gym Application Place: Gym , Amusement Park , Stadium , Pulic Area , Office Building , Club, Etc
Gross Weight: 70KG Material: 304 Stainless Steel
Size Of Product: 1200mm (L) * 280mm (W) * 980mm (H) Package Size: 1280mm (L) * 360mm (W) * 1070mm (H)
Compatible: RFID Reader & Fingerprint Reader , Coin Acess , QR Code Reader,Bar Code System ,ESD Tester Access Contro L, Remote Button Communication Port: RS485 ,TCP/IP
Production Time: 7 Working Days
Highlight:

tripod access system

,

tripod barrier gate



Passage Gym Train Station Turnstile Door Multi Acess Acceptable





1 . Tripod Turnstile Technical Parameters



No.

parameters



values
 1



product name

electric turnstile price
 2



model

GAT-301
 3



Material

304 stainless steel
 4



work voltage

AC220V±10% 50HZ±10%
 5



Core

DC24V solenoid valve
 6



Size

1200*280*980mm
 7



Arm length

500mm
 8



Max bearing force

80KG
 9



Max lane width

550MM
10



Rotation direction for arm

left or right, or bi-directional
11



Card reading window

standard or customized
12



Work environment

indoor or outdoor, 10°C~70°C , relative humidity::≤90%, no condensation
13



Barrier open time

0.2s
14



Transit speed

30 people/minute
15



Emergency

auto drop for arm
16



Normal work life

3,000,000 times
17



Communication interface

RS 485, distance ≤1200m
18



Input interface

relay switch signal, 12V level signal or 12V pulse signal, pulse width>100ms,drive current >10Ma







2 . Functions

  1. Malfunction self-check and alarm reminder, ease of maitenance and use
  2. Running method can be set through small buttons on the control panel
  3. How arm reacts in emergency
  4. How arm reacts when power on
  5. Self-reset. pass right will be cancelled if people do not go through within a set time, the default time is 10s ( 0-60 adjustable)
  6. Compatible for access control system, consumption system, E-ticekt system, biometric system, ESD system and so on
  7. Unique positioning, self reset, one arm always in the horizontal level
  8. LED lamp indicator
  9. When open signal is given, arm rotate to a certain degree
  10. How arm reacts when people passing
  11. One direction or bi-direction flow control
  12. Work directly with PC for remote control and management
  13. LED counter Display
  14. Bi-direction Anti reverse rotation




3 . FAQ:



1 - Can you install RFID card reader on the turnstile?



Yes,except the RFID card reader system,we also can install fingerprint reader system,token system,esd



system,etc.





2 - How about the guarantee and after sale service?



We have 12 month quality guarantee, We own well-tranied and passional sales & after- sale services who



can speak fluent Engligh language



3 - How long is the leading time?



For standard item


10-50 sets:5 working days


50-100 sets:7-10 working days


200-500 sets:10-15 working days


For special item, or need custom design package or logo, need 3-10 working days longer





4 - How about the payment terms?



TT,western union,L/C,our company already joined the trade assurance,it will highly protect your order



security.





5 - How do you send the product to me,how long?



For sample,normaly send by air or express,about 3-5 days



For quantity purchase,normally by sea, it normally takes 7-60 days depend on different countries.





6 - What is the package of the turnstile?



Inside with a carton package.Then outside,there are 2 kinds of packages under your choice:crate



package and closed wooden package.





7 - Can you do OEM service?



We offer below OEM services:



1 ) we can make custom design tursntile,or you tell us your requirements,we can make a design for you.



2 ) Can print your logo on turnstiles, can customize the retail box packing and other things.

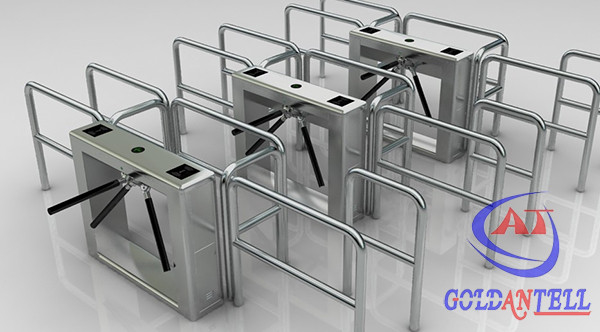

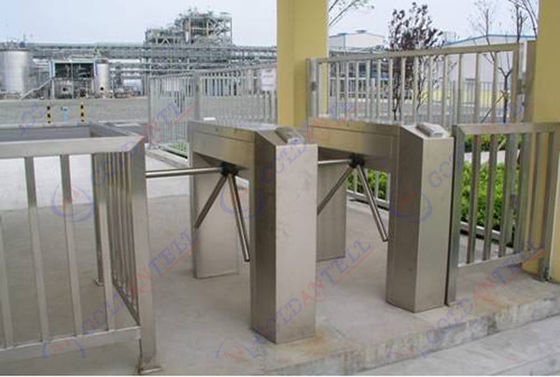

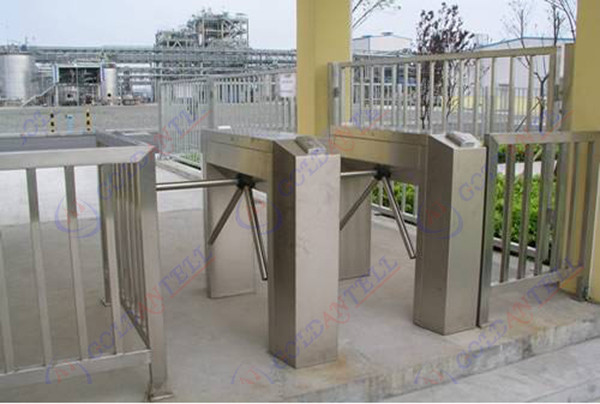

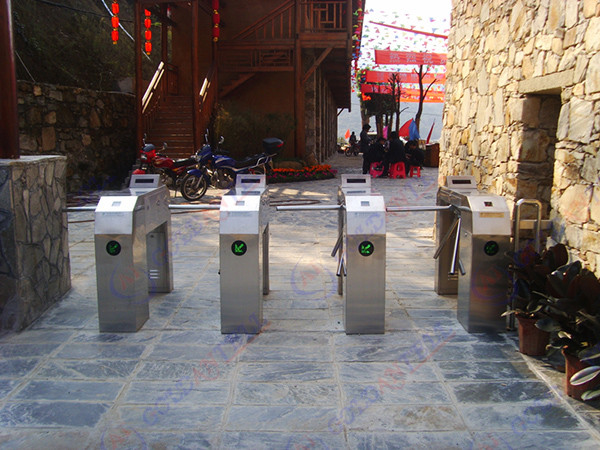

4 . Tripod Turnstile  Picture



Passage Gym Train Station Turnstile Door Multi Acess Acceptable 0







5 . Tripod Turnstile Package



Passage Gym Train Station Turnstile Door Multi Acess Acceptable 1
