Intelligent stainless gate bidirectional half height flap security turnstile door access card reader

  • Intelligent stainless gate bidirectional half height flap security turnstile door access card reader
  • Intelligent stainless gate bidirectional half height flap security turnstile door access card reader
Place of Origin Guangdong,China
Brand Name Goldantell
Certification Quality testing report
Model Number GAT-211
Minimum Order Quantity 1pc
Price negotiation
Packaging Details Wooden case package of Export exempted from inspection plus plastic wrap
Delivery Time 7 working days after received your payment
Payment Terms T/T ,western Union,LC,Paypal
Supply Ability 2,000pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Size L600*W300*H1000mm Type Single Core
Transit Speed 35 Persons/min Input AC 100V~240V
Housing Material 304 Stainless Steel Passage Width 600mm
Material 304 Stainless Steel Working Environment Indoor/outdoor (with A Tent Over) -10℃~70℃
Highlight

pedestrian security gates

,

stainless steel turnstiles
Leave a Message
Product Description

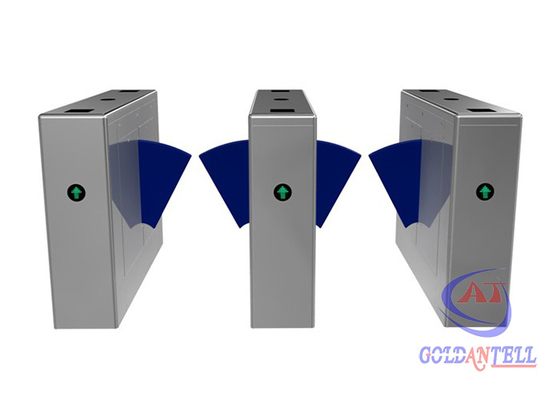

Intelligent stainless gate bidirectional half height flap security turnstile door access card reader



Specification:

Power consumption AC220V, 50Hz/AC110V, 60Hz (optional)
Housing Size 1200*280*1000mm
Housing material 1.5-2mm, 304# stainless steel, corrosion resistant
N.W. 150KG
Drive motor DC brushless motor
Channel width 500--600mm
Pass speed 30-40 persons/min.
IP protection IP54
Input signal optional DC12V/dry/contact/RS485/RS232/Remote
railing-off against power off Yes
Working environment temperature minors -15°C to 75 °C
Working environments indoor, outdoor
Relative humidity ≤95% coagulation free
MCBF 2,500,000 cycle



Functions and features:

1). With function of self-examine and alarm, it is convenient for maintenance and use

2). Being able to program running status by the small keyboard in the main board

3). Flap door will stop move when it is being blocked, which prevent pedestrians from being nipped and from hurt.

4). Light and sound alarm is generated when the illegal invasion and the tail followed.

5). Arms are automatically locked until opening signal is received

6). Arms synchronization (adjustable)

7). automatically reset function: It will automatically lock if the pedestrian hasn't passed through the channel in the pre-set time after the opening. The passing time is adjustable. (Default time is 10sec.)

8). automatically open the gate when power off and automatically close when power on.

9). several readers’ devices are attachable. (IC, ID access control, fingerprint access control, barcode ticket access control, facial identification access control, time attendance machine ect.)

10). One direction or bi-direction is optional.

11). It can be directly controlled and managed by remote control.



Extendable functions:

Counter (optional)

The length of the housing (length 1.2m, 1.4m, or 1.6m are optional)

The material of flap arm (acrylic glass, resin, PVC etc. optional)

The color of the flap arm (red, blue, yellow, colorless, etc.)



Real picture:

Intelligent stainless gate bidirectional half height flap security turnstile door access card reader 0

Intelligent stainless gate bidirectional half height flap security turnstile door access card reader 1



Our certificate:

Intelligent stainless gate bidirectional half height flap security turnstile door access card reader 2
