Access Control Waist High Turnstyle barrier rfid reader Turnstile for School or Hospital entrance
| Place of Origin | Guangdong,China |
|---|---|
| Brand Name | Goldantell |
| Certification | quality testing report |
| Model Number | GAT-201 |
| Minimum Order Quantity | 1pc |
| Price | negotiation |
| Packaging Details | Wooden case package of Export exempted from inspection plus plastic wrap |
| Delivery Time | 7 working days after received your payment |
| Payment Terms | T/T ,western Union,LC,Paypal |
| Supply Ability | 1,000pcs per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Input | 100V~240V | Flap Panel Color | Red, Blue, Black Or Transparent |
|---|---|---|---|
| Swipe Card | Two Ways | Communication Interface | Standard RS485 Interface,distance ≤1200m |
| Net Weight | 60kg | Dimension | 1200 * 280 * 1000mm |
| Transit Speed | 35 Persons/min | Power Consumption | 20W |
| Highlight | turnstile security gates,pedestrian security gates |
||
Product Description

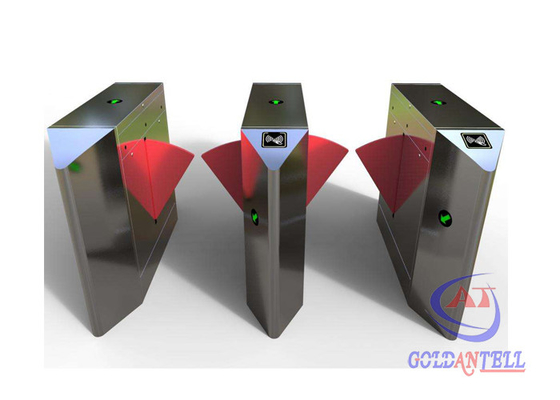

Access Control Waist High Turnstyle barrier rfid reader Turnstile for School or Hospital entrance
Product Description
1. Higher flow rate and better anti-tailgate functions.
2. Double protections of Mechanical and infrared anti-pinch function, providing more reliable and safer passing.
3. Multi alarm modes: illegal intrusion, anti-intrusion, anti-follow, overtime alarm etc.
4. Anti-rush function, Anti-Reverse, anti-intrusion, anti-follow.
5. LED indicator light: green and red indicate the passing information.
6. Normal open and normal close can be controlled by external button.(for group pass)
7. Auto detects and reset function.
Specification
| Power consumption | AC220V, 50Hz/AC110V, 60Hz (optional) |
| Housing Size | 1200*280*1000mm |
| Housing material | 1.5-2mm, 304# stainless steel, corrosion resistant |
| N.W. | 150KG |
| Drive motor | DC brushless motor |
| Channel width | 500--600mm |
| Pass speed | 30-40 persons/min. |
| IP protection | IP54 |
| Input signal optional | DC12V/dry/contact/RS485/RS232/Remote |
| railing-off against power off | Yes |
| Working environment temperature | minors -15°C to 75 °C |
| Working environments | indoor, outdoor |
| Relative humidity | ≤95% coagulation free |
| MCBF | 2,500,000 cycle |
Functions and features
1, equipment appearance is made of stainless steel plate with cold bending technology, no clearance welding. It is beautiful modeling and rust-proof and durable.
2, the appearance is like a ship with stainless material
3, the material of the whole case is stainless, and the width is 2mm.
4, there is night light alarm device on the wing gate.
5, the material of the wing gate is transparent glass pane. And you can freely set logo on it. With the matched night light device, they combined a beautiful view.
6, adopted 6 pairs infrared device or light curtain to stop following, distinguishing direction, preventing touch, and alarm function.
7, with UPS battery in itself, when the power cut off suddenly, it close automatic.
8, humanized status identification can distinguish the status of the equipment operation.
Projects FYI
No.1, equipped with ESD checker system
No.2, equipped with RFID access control system
Project of flap barrier gate
