RS485 Custom Color Automatic Parking Advertising Barrier With Custom
Advertising On Barrier And Boom
Introduction of Goldantell Advertising Parking Barrier :
Parking advertisement barrier/automatic barrier, is a total new hot sale invention.
It combines advertisement with barrier gate, extremely meeting new market demands. It is safer, more
beautiful, and more valuable.
Advertising Parking Barrier Gate Features:
1 Stable quality:
The device has already been tested for 1million times.
2 Unique lighting effects:
Led lights go on at night, achieving better security for driving at night and make the devices
more beautifulat the same time.
3 Closed-end management:
There is no gap under the barrier,so that can be controlled by the personnel better, increase
the district’s Safety.
4 Advertising function:
Some advertisement can be put on it.So some company willrent this place to advertise their
products,so the parking system’sowner cancharge.
4 Auto heating and cooling function:
Whenitis too hot,the barrier will be cooling automatically,when it is too coldwill be heating.
Technicap Parameters:
1. Power Supply: 220V+10%/50HZ/ 110V+10%/60HZ
2. Motor Power: 140W
3. Temperature: -30 degree to 80 degrees
4. Related Humidity: <=95%
5. Barrier Body Dimension: 450*360*1180mm
5. Boom Length: 3.7m (5s) or 4.2m (8s)
6. Advertising Boom Board Dimension: 92*830mm
7. Barrier Body Advertisement Plate Dimension: 450*880mm
8. LED Light: 15A, 200w
9. Total Height for Boom Lift: Decided by boom length
10. Boom Lifting Time: 5s and 8s
11. Top Tube Middle line Height: 1050mm
12. Remote Control Distance: <=30m
13. Input Interface: +12V Level Signal or more than 100ms impulse
Driving current less than 10mA
14. Communication Interface: RS485
Advertising Barrier Special Specification:
1 Standard barrier with no advertising paper,
custom advertising size:
24 plates = 2280mm * 850
27 plates = 2565mm * 850
30 plates = 2820mm * 850
33 plates = 3135mm * 850
2 Stand advertising box with two strips of LED lights inside.
3 LED lights time, the factory setting for the evening from 6:30 to 6:30 the next morning
4 Rotation time is 1 second, the brake lever landing time is 6 seconds
5 When temperature is minus zero, the flap will automatically rollover once every 1 minute until the temperature is above zero, then will automatically stop
6 The barrier comes with RS485 communication,pls contact our technical staff to get the related code
7 Customizable voice module
Competitive Advantage:
1. More than 10 years powerful ODM/OEM ability,could make product shape design,custom logo,custom
package.
2. We can provide not only product, but also system software management.Save your time and cost.
3. Special service from Goldantell:
For repairing,no need you return back product,only need you take a video,our engineer will instruct you,if
spare parts was damaged in 1 year,we will send you spare parts by fastest express,you no need bear any
fee.
4. Friendly and professional customer service people help you in 16 hours.

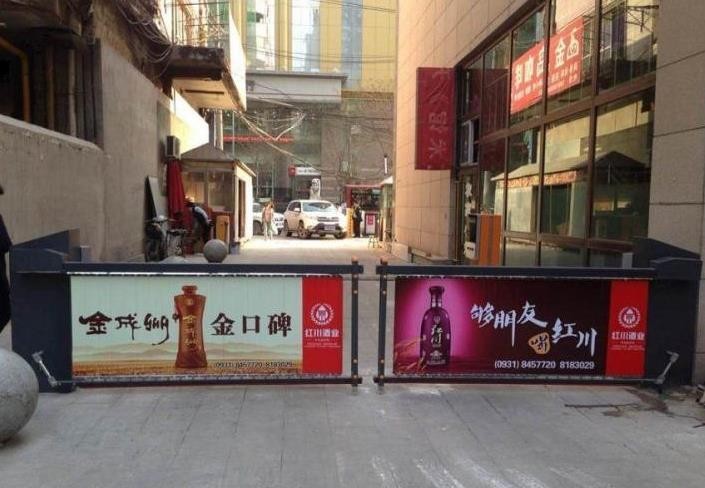

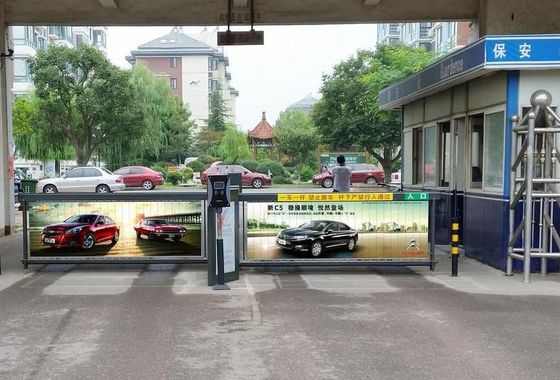

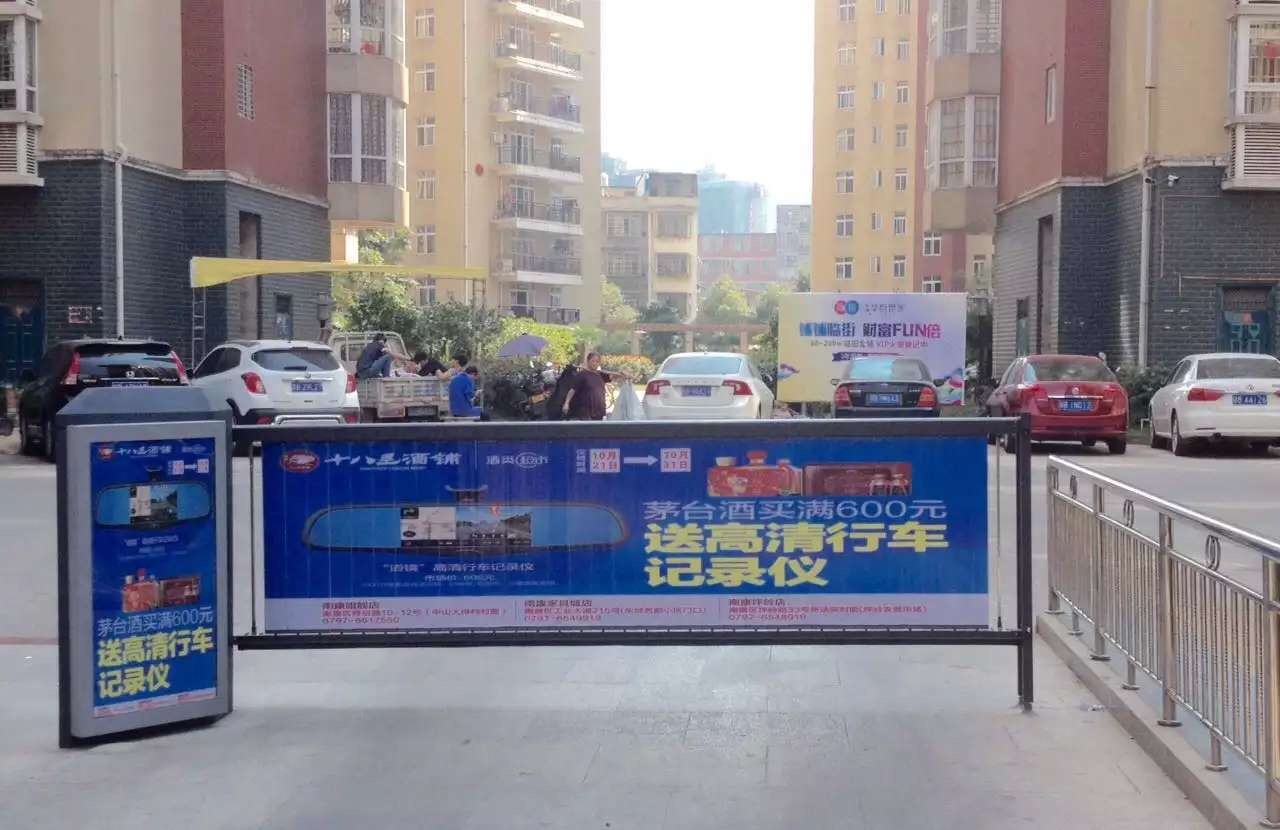

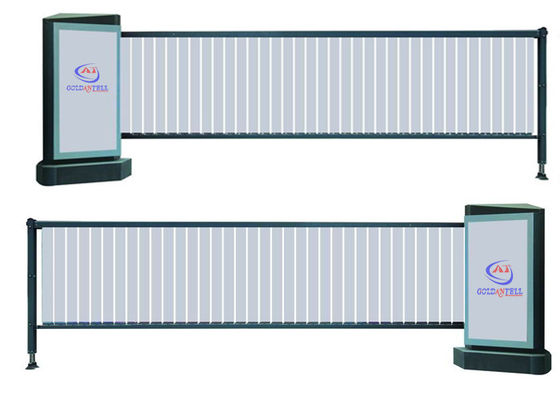

Advertising Parking Barrier Gate Pictures:
