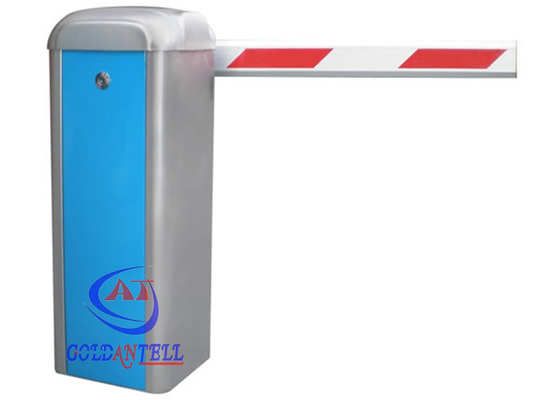

50Hz - 60Hz 1.5S / 3S / 6S Lift Boom Barrier Gate , Street Security Remote Control



50Hz - 60Hz 1.5S / 3S / 6S Lift Boom Barrier Gate , Street Security

Remote Control

Description:

We are specialized in manufacturing integrated intelligent barrier gate.

With international advanced technology, we realize the automatization & intellectualization of barrier gate,

which could be operated safely, conveniently and quickly.



Specification:


Functions & features:

1. Safety--- Anti-hit by IR photocell (Optional)

While arm moving down, If infrared transportation between transmitter and receiver is blocked by human

or vehicle, the arm will go back to vertical position immediately. The arm will automatically close once the

infrared transportation recovers.

2. Safety--- Anti-hit by “Opening Priority”

If a vehicle is coming while arm moving down, the arm will immediately go back to vertical position once a

open command is given, which protect the vehicle not to be hit by arm.

3. Anti-collision protects boom arm (optional)

Once anti-collision mechanism installed, it will protects the boom arm not to be damaged once boom arm

was collided by a vehicle.

4. Safety--- Anti-hit by pressure resistance bounce

While moving down,arm will immediately go back to vertical position once it is obstructed by an imposed

force, which protects the vehicle or person not to be hit by boom arm. The sensitivity is adjustable.

5. Safety--- Anti-hit by Loop Detector (Optional)

While barrier boom moving down, If a coming vehicle was detected to be existing on the ground induction

coil, the arm will go back to vertical position immediately until loop input was dismissed and then the arm

will go down immediately.

6. Closing Priority

While arm moving up, the arm will immediately go down once a close command is given.

7. Automatically close after the given time

Once this function is set “ON”, the barrier will automatically close after given time (1-90 seconds

adjustable) if there is no vehicle passed after barrier open.

8. Automatically Close by loop detector (Optional)

If loop detector is installed, after vehicle passed the barrier will automatically close once the loop input was

triggered.

9. Automatically open by loop detector (Optional)

If loop detector is installed, when barrier boom is in horizontal position, the barrier boom will go up

immediately once the loop input was triggered.

10. Manually control in case of no power

Once power is off, just open the cabinet and manually control the barrier by a gear mechanism. Also

barrier boom can be manually locked in any position between horizontal and vertical, the lock status will

remain until unlock manually.

11. Boom to open up fully or close down in case of power failure

If power is suddenly off while boom closing, boom will automatically close down fully if the angle between

boom and vertical plane beyond 45 degree. If power failure occurs during boom opening, boom will

automatically continue to open up fully if the angle between boom and level surface beyond 45 degrees.

12. Anti-condensation in cold climate

The barrier remains low power consumption even without closing and opening input, which will keep the

motor in normal temperature. The lubricant will not be frozen so that the barrier will keep working in frozen

environment.

13. Transparent plastic covers on Control Board

A transparent plastic covers on the Control Board to makes Control Board water proof and dust proof,

also protects operator.

Standard accessories introduction:

• 4.5 meter rail*1
•
• Remote Control*2
•
• Button*1
•
• Supporting rod bracket*1
•
• Double deck honeycomb packaging*1

Package Instruction:

1. With access control system, need the closed wooden case packing

.
2. Without the access control system, two ways for your choice: crate and closed wooden box.

Packed in carton firstly, and then reinforced with export wooden case or crate for outer packing.

3. One parking barrier with two package:

a - the housing box is packed with crate

b - the rail when length exceeding 2m need to be made to the expansion link and then it will be packed

separately .


Competitive Advantage:

1. More than 10 years powerful ODM/OEM ability,could make product shape design,custom logo,custom

package.

2. We can provide not only product, but also system software management.Save your time and cost.

3. Special service from Goldantell:

For repairing,no need you return back product,only need you take a video,our engineer will instruct you,if

spare parts was damaged in 1 year,we will send you spare parts by fastest express,you no need bear any

fee.

4. Friendly and professional customer service people help you in 16 hours.

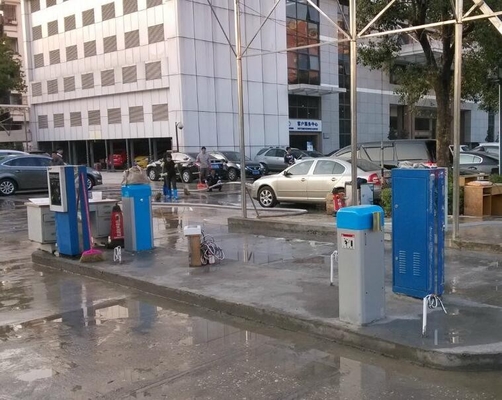

Boom Barrier Gate Pictures:
