Long Range Traffic Barrier Gate for Residential Area / Offic Building / Factory

Large Image : Long Range Traffic Barrier Gate for Residential Area / Offic Building / Factory

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	Goldantell
Certification:	CE/ROHS/FCC/IS9001
Model Number:	GAT-P10

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiation
Packaging Details:	Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time:	7 working days after received your payment
Payment Terms:	T/T ,western Union,LC,Paypal
Supply Ability:	2,000pcs per month

Contact Now

Detailed Product Description

Rod Type:	Fence	Size Of Product:	3402801030mm
Package Size:	4203601090mm	Gross Weight:	65KG
Material:	Cold Rolled Mild Steel/stainless Steel	Rail Length:	1-4.5 Meter For Option
Power Supply:	AC220V±10%50HZ AC110V±10%50HZ/60HZ	Color:	Orange , Yellow, Blue Or Other Colors For Option
Highlight:	retractable barrier gate , car park boom gates

Residential Area , Offic Building , Facotry , Highway Toll Stations , Traffic

Barrier Gate IP54 RFID 110V / 220V

Traffic Barrier Gate Features:
Long Range Traffic Barrier Gate for Residential Area / Offic Building / Factory 0 Specially designed rod drive mechanism, the brake lever slow start, fast run, slow stop and remove the

brake lever to bring in the operation of the jitter
Specially designed rod drive mechanism, and always run gate rod 90 °
Long Range Traffic Barrier Gate for Residential Area / Offic Building / Factory 0 Specially designed spring-balance mechanism, the spring force of the adjustment easier
Drive mechanism design of intelligent thermal protection device, in frequent use, when the motor

temperature to rise to 140 °, the system automatically stop working. When the motor temperature down to

80 °, the system also automatically return to work
Long Range Traffic Barrier Gate for Residential Area / Offic Building / Factory 0 The machine core is using optical and mechanical limit switch limit switch double protection
The machine is fully wireless control, just access to 220V power supply
The main controller has a sense (vehicle detector), infrared interface device for radio

Traffic Barrier Gate Specification:

Type	Model: GAT-P1
Operation time	3s, 4s, 6s Customized
Arm Type	Straight Arm: Max 6 meters, Size 45×100mm and 45*80 mm aluminum alloy Fence Arm: Two or three fence arm, Max 4.5 meters, aluminum alloy Folding Arm: 90 or 180 degree folding arm, max 5 meters, aluminum alloy
Material	Galvanized sheet or Cold roll sheets, 2mm thickness, can be heavy duty Coated with epoxy paint for weatherproof protection
Size	3402801030mm
Spring And Bearing	Heat Treatment: more durable, more than 5 million times through operation testing
Rating Power	80W
Rating Voltage	AC 220V/110V±10%, 50/60HZ
Remote Control Distance	less than 50 meters
Packing Size	4203601090mm , strong carton case with cushion inside with air bubble film for protection,outside with a crate package
G.W	65KG
Delivery	By Sea: big order(more than 100 sets), Cheap, suggested If urgent, can be delivery by Airplane or express
Payment	Sample: full payment Order: usually 30%-40% advance deposite, balance before shipment
Advantages	1. quick delivery time, 3-5 days for 50 sets after received advance deposite 2. 9 years OEM/ODM experience 3. quick response for handling problems
Application	Suitable for indoor as well as outdoor parking area at airport, shopping mall, warehouse,hotel, factories, condominium, car rental companies, etc. It can also be customized to beused together with any auto-pay ticketing parking or access control system

Packing List of Traffic Barrier Gate:

Serial no.	Item	Qty.
1	Main case	1 set
2	Fence	1 pcs
3	Fence cover-plate	1 pcs
4	M10*65 bolts,M10 nuts,Φ10 spring washer	4 pcs for each
5	Control system (mounted inside main case)	1 set
6	Remote controller	2 pcs
7	Bracket (optional)	1 pcs
8	Key	2 pcs
9	Manual button	1 pcs
10	Wire connection drawing	1 pcs
11	Identification card	1 pcs
12	Operation manual	1 pcs
13	Certificate of qualification	1 pcs

Competitive Advantage
1 - More than 10 years powerful ODM/OEM ability,could make product shape design,custom logo,custom

package
2 - we can provide not only product, but also system software management.Save your time and cost.
Special service from Goldantell:
3 - For repairing,no need you return back product,only need you take a video,our engineer will instruct

you,if spare parts was damaged in 1 year,we will send you spare parts by fastest express,you no need

bear any fee.
4 - Friendly and professional customer service people help you in 16 hours.

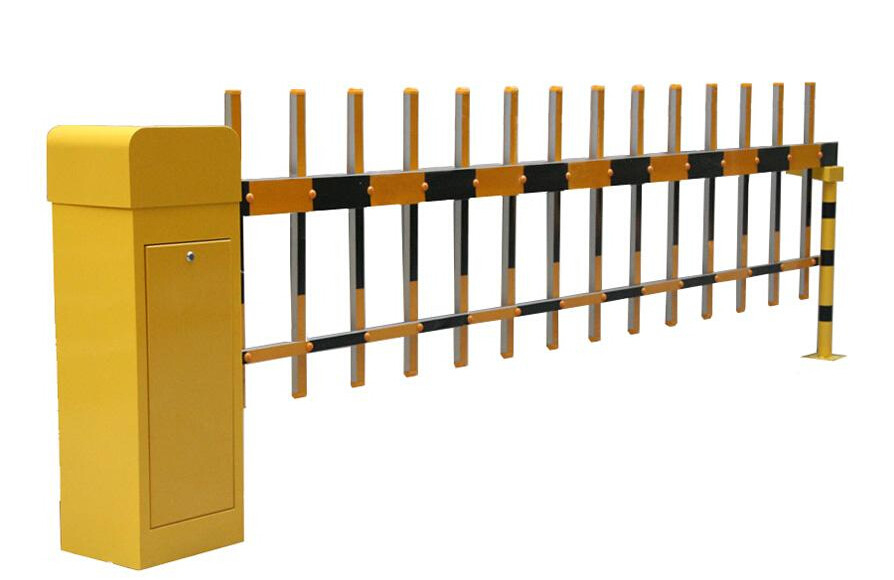

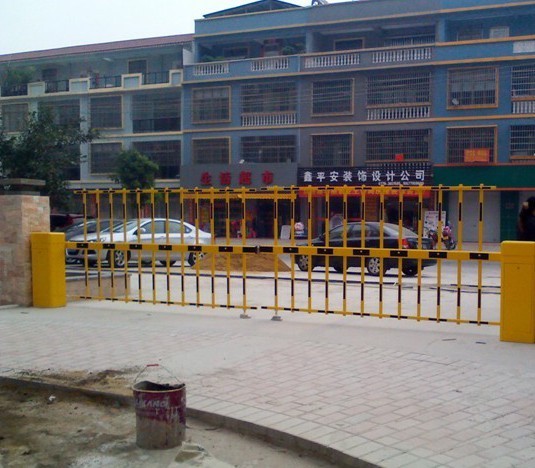

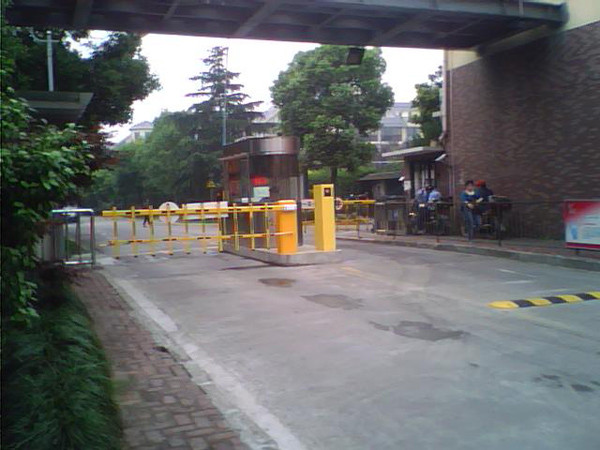

Traffic Barrier Gate Picture
Long Range Traffic Barrier Gate for Residential Area / Offic Building / Factory 7
