Outdoor Used IP54 LED Light Custom Color New Advertising Barrier Gate , New Idea
Advertising Parking Barrier
Introduction of the Advertising Barrier :
The gate is equipped with multiple communication interfaces. It could be connected with vehicle-detector,
IR co-irradiator or other accessories, to meet the safety requirement; and charging system could also be
connected to realize automaitc management (optional).
This equipment is controlled in wireless method, which makes its operation safe & convenient. What you
need to do is to connect the equipment with 220V power supply and earth the exterior case; then the
system could start working without any wire arrangement or matching.
Features of the Advertising Barrier :
1, Heavy-duty, waterproof. Suit for indoor/outdoor condition.
2, Simple/modern design. A vision advertisement light box and turn-around board. Easy installation and
maintenance.
3, With LED line, on/off freely for convenient usage. Energy conservation.
4, With light, electrical, machinery function in one model. It is flexible and safe in using.
5, Multiple control mode. The barrier can be operated with connect to the outside control box or operate
by manual.
6, Multiple protection: windproof, motor heating proof, The anti surge protection, Thunder-proof, anti-hit,
Anti-collision protect the boom arm and vehicle, make the barrier operating more safety and efficiency.
7, All component have been tested with the best operation and balance condition. It will ensure service
your system run stably, silence and long service life.
Advertising Barrier Gate Function:
1, Marketing:it catches high attention by the entry/exit in top grade residence, commercial center, building,
hotel, shopping mall. You can advertise yourself from the light box advertisement arer and the turn-
around advertisement board on barrier. Our ‘Top media’ is a new advertisement style in the world.
2, Well-educated group :We are aiming at the 30% well-educated group beside the 70% of people. The
car owner, house holder. They are the mainly consumer of 75% purchasing capacity!
3, Force publicize: When you drive you car out / in the parking lot. NOTHING else but the barrier attract
your eyes here.
4, Public repeatedly : High exposure and repeatedly advertising by the entry/exit. It is a strong
advertisement on your company, your products. Impression for the group.
5, Focus without disturb :quite and warm media environment. Different from TV, news paper, broadcast,
outdoor advertisement, etc.
6, High price ratio: If your product only focus in some of area, there is only use for several residence. Low
costing, well efficiency.
Advertising Barrier Specification:
|
Type
|
Model: GAT-P47
|
|
Operation time
|
3s, 4s, 6s Customized
|
|
Arm Type
|
Arm: Max 4 meters, Arm size 500*2500*4000mm with advertising on it,aluminum alloy material
|
|
Material
|
Galvanized sheet or Cold roll sheets, 2mm thickness, can be heavy duty Coated with epoxy paint for weatherproof protection
|
|
Size
|
400*300*1000mm
|
|
Spring And Bearing
|
Heat Treatment: more durable, more than 5 million times through operation testing
|
|
Rating Power
|
120W
|
|
Rating Voltage
|
AC 220V/110V±10%, 50/60HZ
|
|
Remote Control Distance
|
less than 50 meters
|
|
Packing Size
|
470*360*1090mm , strong carton case with cushion
inside with air bubble film for protection,outside with a crate package
|
|
G.W
|
70KG
|
|
Delivery
|
By Sea: big order(more than 100 sets), Cheap, suggested
If urgent, can be delivery by Airplane or express
|
|
Payment
|
Sample: full payment
Order: usually 30%-40% advance deposite, balance before shipment
|
|
Advantages
|
1. quick delivery time, 3-5 days for 50 sets after received advance deposite
2. 9 years OEM/ODM experience
3. quick response for handling problems
|
|
Application
|
Suitable for indoor as well as outdoor parking area at airport, shopping mall,
warehouse,hotel, factories, condominium, car rental companies, etc. It can
also be customized to beused together with any auto-pay ticketing parking
or access control system
|

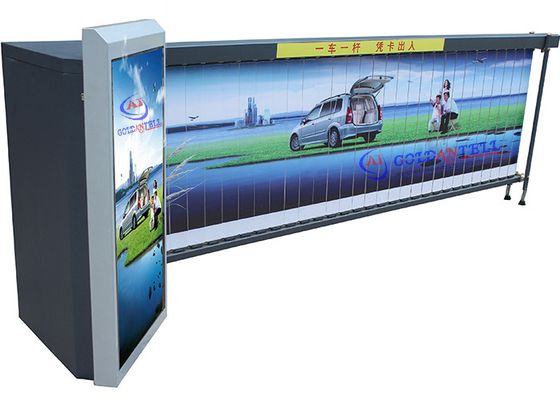

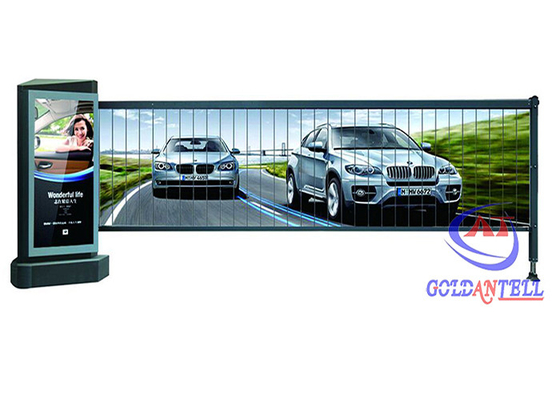

Picture of Advertising barrier:
Standard without picture or logo
Custom the picture and logo
