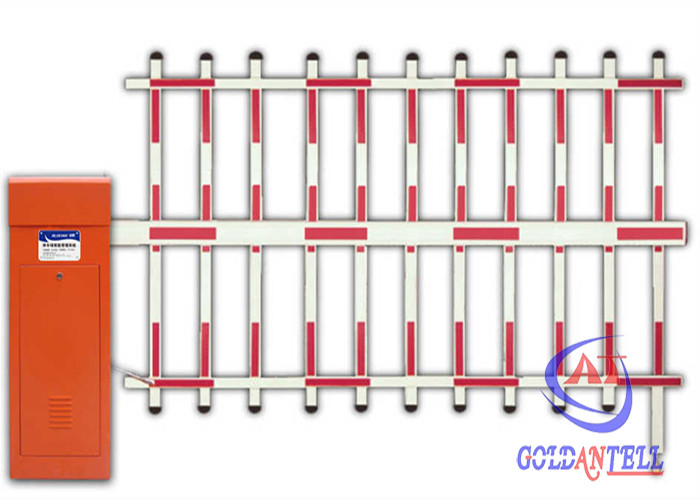

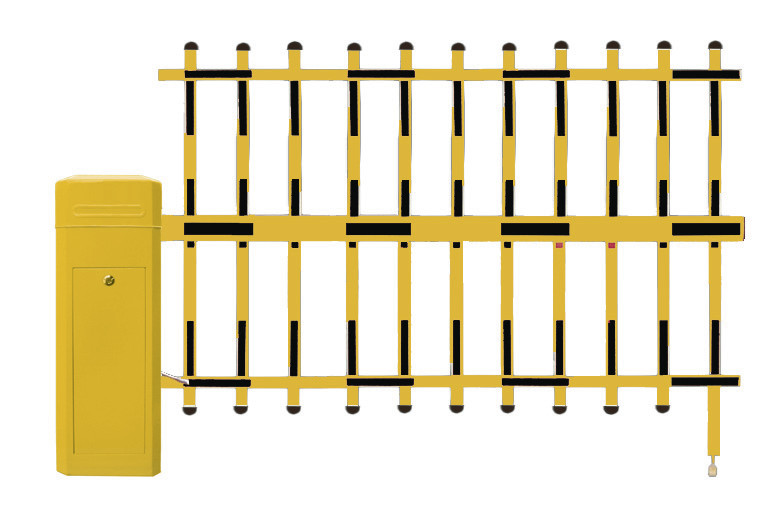

Water Proof Automatic Barrier Gate , 80W 3 Fence Barrier With Loop Detector

  • Water Proof Automatic Barrier Gate , 80W 3 Fence Barrier With Loop Detector
  • Water Proof Automatic Barrier Gate , 80W 3 Fence Barrier With Loop Detector
  • Water Proof Automatic Barrier Gate , 80W 3 Fence Barrier With Loop Detector
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE/ROHS/FCC/IS9001
Model Number GAT-P15
Minimum Order Quantity 1pc
Price negotiation
Packaging Details Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time 7 working days after received your payment
Payment Terms T/T ,western Union,LC,Paypal
Supply Ability 2,000pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rod Type Fence Size Of Product 340*280*1030mm
Package Size 420*360*1090mm Gross Weight 65KG
Material Cold Rolled Mild Steel/stainless Steel Rail Length 1-6 Meter For Option
Power Supply AC220V±10%50HZ AC110V±10%50HZ/60HZ Color Orange , Yellow, Blue
Highlight

vehicle barrier gates

,

retractable barrier gate
Leave a Message
Product Description



Access Control Automatic Barrier Gate , 3 Fence Barrier With Loop

Detector



Product Features:


Water Proof Automatic Barrier Gate , 80W 3 Fence Barrier With Loop Detector 0 Specially designed rod drive mechanism, the brake lever slow start, fast run, slow stop and remove the

brake lever to bring in the operation of the jitter

Water Proof Automatic Barrier Gate , 80W 3 Fence Barrier With Loop Detector 0 Specially designed rod drive mechanism, and always run gate rod 90 °

Water Proof Automatic Barrier Gate , 80W 3 Fence Barrier With Loop Detector 0 Specially designed spring-balance mechanism, the spring force of the adjustment easier

Water Proof Automatic Barrier Gate , 80W 3 Fence Barrier With Loop Detector 0 Drive mechanism design of intelligent thermal protection device, in frequent use, when the motor

temperature to rise to 140 °, the system automatically stop working. When the motor temperature down to

80 °, the system also automatically return to work

Water Proof Automatic Barrier Gate , 80W 3 Fence Barrier With Loop Detector 0 The machine core is using optical and mechanical limit switch limit switch double protection

Water Proof Automatic Barrier Gate , 80W 3 Fence Barrier With Loop Detector 0 The machine is fully wireless control, just access to 220V power supply

Water Proof Automatic Barrier Gate , 80W 3 Fence Barrier With Loop Detector 0 The main controller has a sense (vehicle detector), infrared interface device for radio




3 Fence Barrier Specification:



Type


Model: GAT-P15

Operation time



3s, 4s, 6s Customized

Arm Type


Straight Arm: Max 6 meters, Size 45×100mm and 45*80 mm

aluminum alloy


Fence Arm: Two or three fence arm, Max 4.5 meters, aluminum alloy

Folding Arm: 90 or 180 degree folding arm, max 5 meters, aluminum

alloy


Material


Galvanized sheet or Cold roll sheets, 2mm thickness, can be heavy

duty

Coated with epoxy paint for weatherproof protection


Size


340*280*1030mm


Spring And Bearing


Heat Treatment: more durable, more than 5 million times through

operation testing


Rating Power


80W


Rating Voltage


AC 220V/110V±10%, 50/60HZ


Remote Control Distance


less than 50 meters


Packing Size


420*360*1090mm , strong carton case with cushion

inside with air bubble film for protection,outside with a crate package


G.W


58KG


Delivery


By Sea: big order(more than 100 sets), Cheap, suggested
If urgent, can be delivery by Airplane or express


Payment


Sample: full payment


Order: usually 30%-40% advance deposite, balance before shipment


Advantages


1. quick delivery time, 3-5 days for 50 sets after received advance

deposite

2. 9 years OEM/ODM experience
3. quick response for handling problems


Application


Suitable for indoor as well as outdoor parking area at airport,

shopping mall,

warehouse,hotel, factories, condominium, car rental companies, etc.

It can also be customized to beused together with any auto-pay

ticketing parking or access control system








Packing List of 3 Fence Barrier:


Serial no.

Item

Qty.

1

Main case

1 set

2

Fence

1 pcs

3

Fence cover-plate

1 pcs

4

M10*65 bolts,M10 nuts,Φ10 spring washer

4 pcs for each

5

Control system (mounted inside main case)

1 set

6

Remote controller

2 pcs

7

Bracket (optional)

1 pcs

8

Key

2 pcs

9

Manual button

1 pcs

10

Wire connection drawing

1 pcs

11

Identification card

1 pcs

12

Operation manual

1 pcs

13

Certificate of qualification

1 pcs
