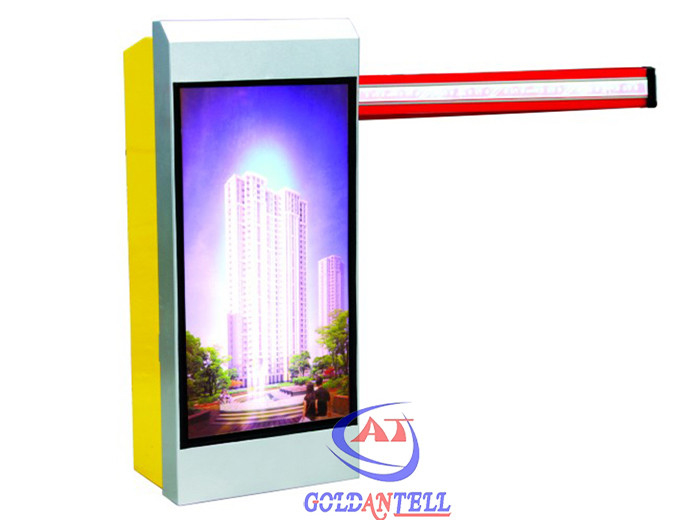

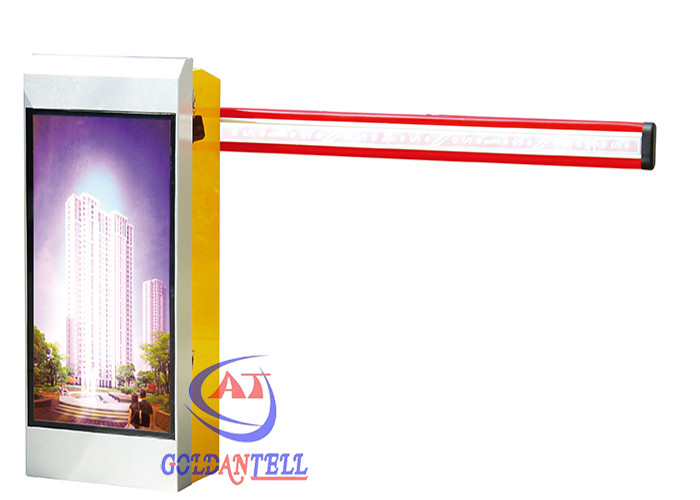

Deluxe Straight Arm Advertising Boom Barrier Gate RFID Acess Heavy Duty Waterproof IP54

  • Deluxe Straight Arm Advertising Boom Barrier Gate RFID Acess Heavy Duty Waterproof IP54
  • Deluxe Straight Arm Advertising Boom Barrier Gate RFID Acess Heavy Duty Waterproof IP54
  • Deluxe Straight Arm Advertising Boom Barrier Gate RFID Acess Heavy Duty Waterproof IP54
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE/ROHS/FCC/IS9001
Model Number GAT-P46
Minimum Order Quantity 1pc
Price negotiation
Packaging Details Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time 7 working days after received your payment
Payment Terms T/T ,western Union,LC,Paypal
Supply Ability 2,000pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Advertising Boom Barrier Rod Type Straight Arm / Foldable / Fence
Size Of Product 400*300*1000mm Package Size 470*360*1060mm
Gross Weight 60KG Rail Length 1-6 Meter For Option
Material Cold Rolled Mild Steel/stainless Steel Power Supply AC220V±10%50HZ AC110V±10%50HZ/60HZ
Color Yellow&white
Highlight

retractable barrier gate

,

car park boom gates
Leave a Message
Product Description


Deluxe Straight Arm Advertising Boom Barrier Gate RFID Acess Heavy

Duty Waterproof IP54



Advertising Boom Barrier Specifications:


Model

GAT-P43


Working Temperature

-40℃～+75℃


Voltage

220V±10%, 110V±10%, 50/60HZ


Rated power

80W


Relative humidity

≤90%


Remote control distance

≥30m


Net weight

58kgs


Speed

3S,4S, 6S


Max boom length

6 meters


Motor Rotational speed

1400rmp


Protection Degree

IP54




Model Selection and Differences:


Boom type


Boom Length(L)Diameter of the spring(mm)Note

Straight boom


6M≥L≥5M5.5/4.5




5M≥L≥4.5M5.5Dispatching 4.5




4.5M≥L≥3M4.5Dispatching 4.5

Straight boom adhesive tape


5M≥L≥4M4.5M≥L≥3M5.5/4.5Dispatching 4.5




4M≥L≥3M3.5M≥L≥3M4.5Dispatching 4.5

Folding boom


6M≥L≥5M6.5/4.5




5M≥L≥4M5.5/4.5




4M≥L≥3M4.5





Two fence boom5M≥L≥4M6.5/5.5

Fence boom


 4M≥L≥3M5.5/4.5





Three fence boom4M≥L≥3M6.5/5.5





 3M≥L≥2M5.5/4.5





Functions & Features:

1) Manual release
2) Machine core with compression spring, effectively avoids the accidents caused by spring breaking

3) Die-casting aluminum alloy motor, precision and good at thermal radiating

4) Motor cooling fan, solving the problem of heat-protection

5) Double safety limit switches (photoelectricity limit switch/motor memory sensor)

6) Reversing on obstacle

7) Auto-closing

8) Support the INFRARER PHTOCELL for anti-bumping function (optional)

9) Support the external and internal VEHICLE LOOP DETECTOR (optional)

10) Traffic light interface

11) Wire control (switch signal)/ Remote control (418MHZ)

12) RS485 communication module (optional)



Common problems & solutions:


Common problem


Analysis

Solution

When motor running, the boom does not work.

1. the key-pin of main shaft of motor drops
2.bending-arm of mechanism part breaks-down


1. open the motor and refix the key-pin
2. dismount the mechanism part and replace the bending-arm

The arm vibrates during moving-down or reaching its horizontal position

1. Non-balance caused by weak spring tension;
2. Arm’s screws are loose;
3. The case is not fixed well.


1. replace the spring according to the Matching table of starndard spring or change hanging-hole’s position; or adjust the connection screw-rod of the spring to correct position;
2. fasten arm’s screws;
3. fasten the botls of the case;


The arm stops during movement.

1.wrong adjustment of limit switches
2.too much spring tension


1.check the connection of limit switches and correct;
(see connection drawing fordetails)
2.replace the spring or change hanging-hole’s position;


Anti-collision fails

ground sensor or IR wire damages or wrong connection



Replace ground sensor or Irparts, correct the connection carefully according to the drawing;



The arm could not reach right position.

Wrong adjustment of limit switches


place the arm in horizontal orveritical position, adjust the photo-barrierto the middle of photoelectric switches till lightis on. Red light for reaching horizontal position; green light is for reaching vertical position;










Deluxe Straight Arm Advertising Boom Barrier Gate RFID Acess Heavy Duty Waterproof IP54 0
