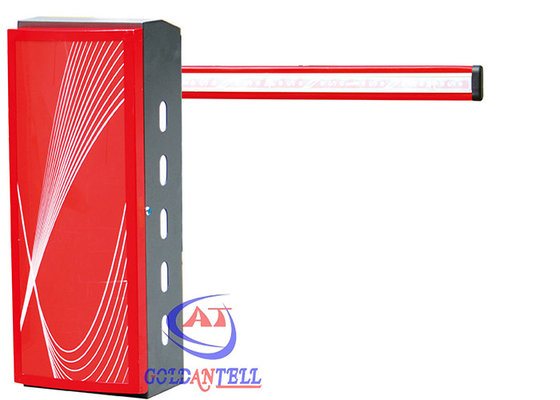

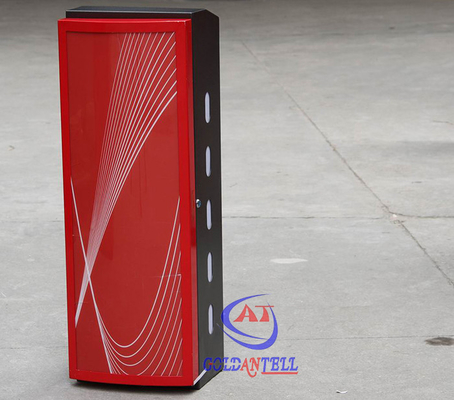

1-6 M Length Arm Auto Barrier gGate System LED Light Arm Duplicate
Garage Remote Control
Introduction:
This is a trouble free solution for shipping and storage!
When a normal barrier gate is equipped with such a flexible arm, the packing length could be reduced to
within 3 meters which is acceptable for both sea and air shipment. And it will be much easier for you to find
a small truck to forward the goods to other places. Meanwhile, it's very convenient to adjust the length on
site:
1 - loose the hex nuts backside;
2 - pull out the inner pipe slowly to proper length;
3 - tighten the hex nuts to fix the length;
4 - done!
Functions & Features:
1) Manual release
2) Machine core with compression spring, effectively avoids the accidents caused by spring breaking
3) Die-casting aluminum alloy motor, precision and good at thermal radiating
4) Motor cooling fan, solving the problem of heat-protection
5) Double safety limit switches (photoelectricity limit switch/motor memory sensor)
6) Reversing on obstacle
7) Auto-closing
8) Support the INFRARER PHTOCELL for anti-bumping function (optional)
9) Support the external and internal VEHICLE LOOP DETECTOR (optional)
10) Traffic light interface
11) Wire control (switch signal)/ Remote control (418MHZ)
12) RS485 communication module (optional)
1. Avoid vibrating caused by boom’s running;
2. Only 90 degree running for the boom, to avoid the accident of 360 degree running caused by abnormal
failures.
3. Special movement mechanism, with no gear or belt; no need for maintenance; stable performance and
long life-span
4. Specially-designed balance mechanism, which makes boom start slowly, run quickly and stop slowly.
5. Specially-designed low-speed aluminum-casing motor, integrated gearbox with low noise & quick
heat-radiation;
6. Intelligent over- heat protection system for driving mechanism, to control motor’s temperature and avoid
damaging easily during frequent usage.
Specifications:
|
Model
|
GAT-P40
|
|
Working Temperature
|
-40℃～+75℃
|
|
Voltage
|
220V±10%, 110V±10%, 50/60HZ
|
|
Rated power
|
80W
|
|
Relative humidity
|
≤90%
|
|
Remote control distance
|
≥30m
|
|
Net weight
|
48kgs
|
|
Speed
|
1S,1.8S,3S, 6S
|
|
Max boom length
|
6 meters
|
|
Motor Rotational speed
|
1400rmp
|
|
Protection Degree
|
IP54
|
Model Selection and Differences:
|
Boom type
|
Boom Length(L) |
Diameter of the spring(mm) |
Note |
|
Straight boom
|
6M≥L≥5M |
5.5/4.5 |
|
| |
5M≥L≥4.5M
|
5.5 |
Dispatching 4.5 |
| |
4.5M≥L≥3M
|
4.5 |
Dispatching 4.5 |
|
Straight boom adhesive tape
|
5M≥L≥4M |
4.5M≥L≥3M |
5.5/4.5 |
Dispatching 4.5 |
| |
4M≥L≥3M
|
3.5M≥L≥3M |
4.5 |
Dispatching 4.5 |
|
Folding boom
|
6M≥L≥5M |
6.5/4.5 |
|
| |
5M≥L≥4M
|
5.5/4.5 |
|
| |
4M≥L≥3M
|
4.5 |
|
| |
Two fence boom
|
5M≥L≥4M |
6.5/5.5 |
|
|
Fence boom
|
|
4M≥L≥3M |
5.5/4.5 |
|
| |
Three fence boom
|
4M≥L≥3M |
6.5/5.5 |
|
| |
|
3M≥L≥2M
|
5.5/4.5 |
|
Use & operation safety notes:
1. During arm going down, do not place anything under the booms; and no body is allowed to standing or
walking under the boom.
2. Normally, do not adjust positions of mechanical limit switch or photo electric limit switch.
3. When power cuts, first, turn off the power connection; then adjust the boom to vertical position by
turning the manual swing manually.
4. Normally, users can not change the wire layout inside barrier gate. Please just connect the gate with
220V power supply.
5. The power supply system should be equipped with leakage breaker (≥10A).
6. Normally, do not increase or decrease the length or weight of the boom, to avoid losing balance. If
necessary, professional staff is required.
7. During running, do not open the case-cover or case-door, to avoid accident.
Our service:
1. All items have 24 month quality guarantee.
2. Custom design shape and logo, for large amount, custom logo available for free.
3. Supported by professional engineers.
4. Special discount of our distributors or agents in their area.
5. Packing in standard export carton, suggest you pack it by wooden case to protect the products
6. CE, ROSH available.
7. Friendly and professional customer service people help you in 16 hours.
